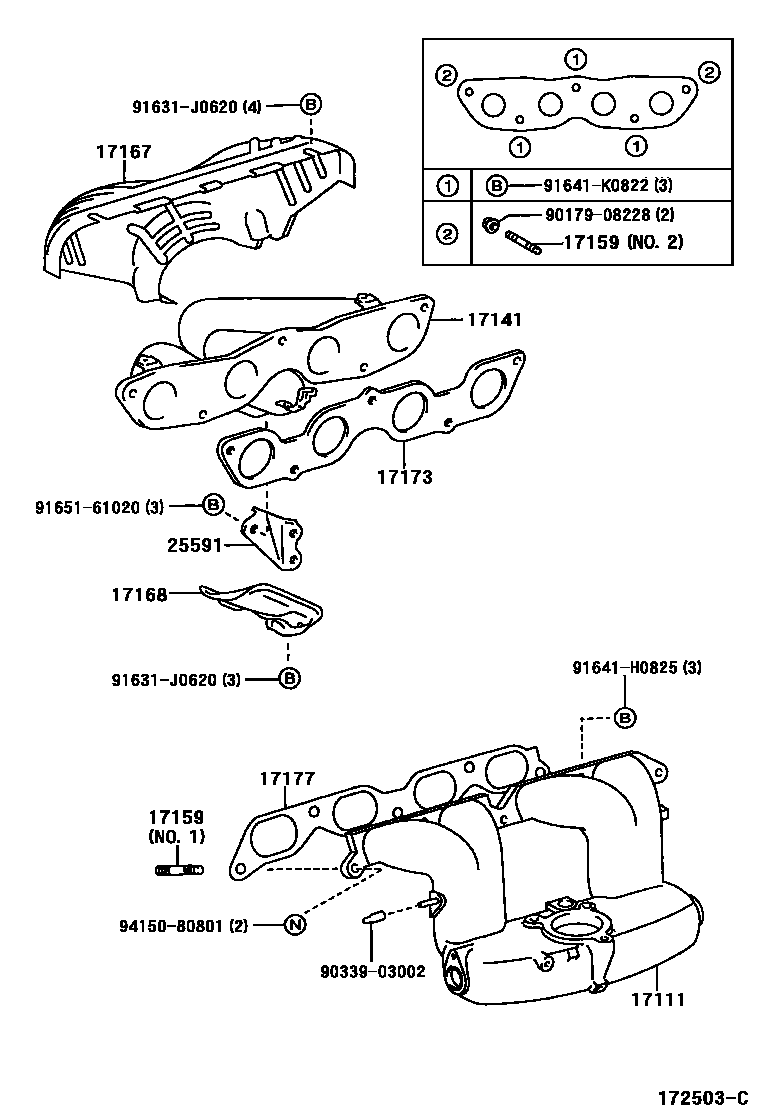

MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25591BRACKET, MANIFOLD SUPPORT
9017908228
main90179-08228
9033903002
main90339-03002
91631J0620
main91631-J0620
91641H0825
main91641-H0825
91641K0822
main91641-K0822
9165161020
main91651-61020
9415080801
main94150-80801
15 parts on this diagram · 1 diagram in section
