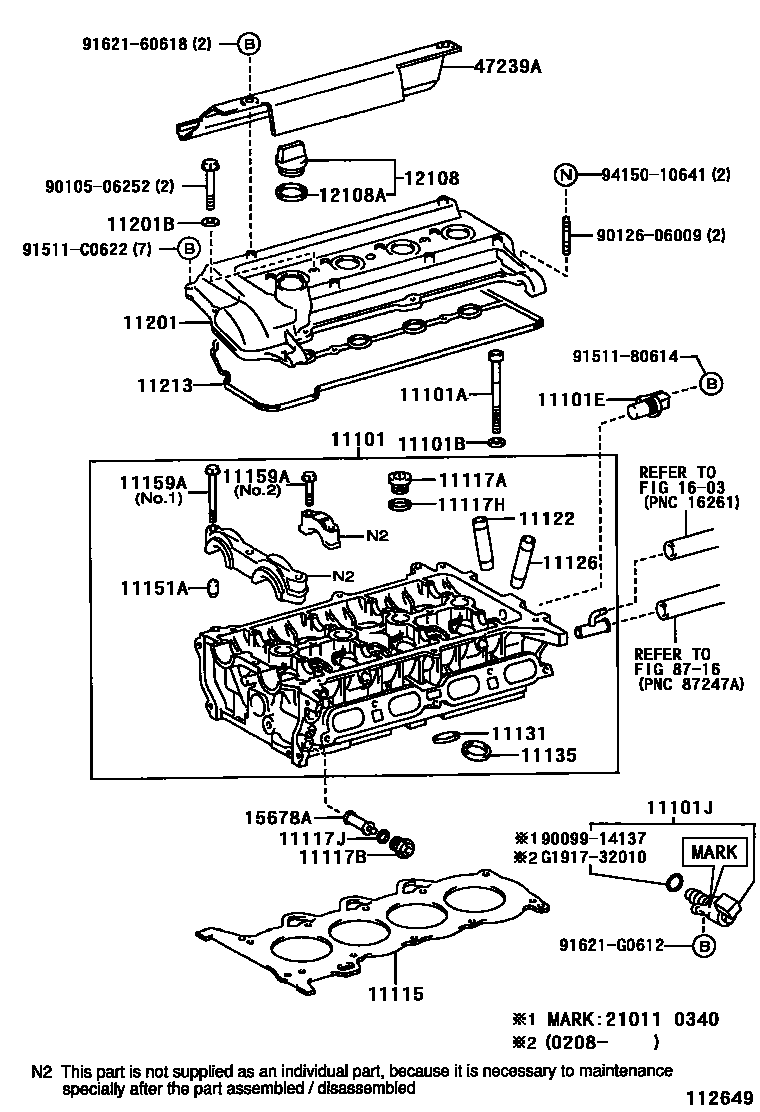

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
sub90910-02170
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15678AFILTER, OIL CONTROL VALVE
1603
47239ACOVER, BRAKE MASTER CYLINDER RESERVOIR
8716
9009914137
main90099-14137
9010506252
main90105-06252
9012606009
main90126-06009
9151180614
main91511-80614
91511C0622
main91511-C0622
9162160618
main91621-60618
91621G0612
main91621-G0612
9415010641
main94150-10641
G191732010
mainG1917-32010
34 parts on this diagram · 1 diagram in section
