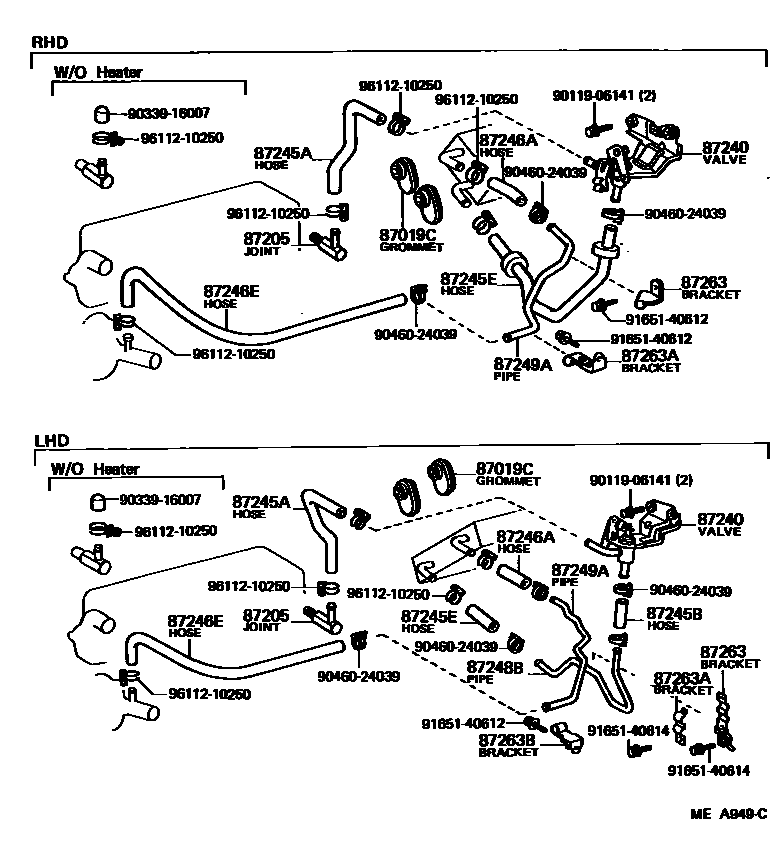

HEATING & AIR CONDITIONING - WATER PIPING
87019CGROMMET, HEATER HOSE
87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
sub99556-30100
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
87248BPIPE, HEATER WATER INLET, B
87263BRACKET, HEATER WATER PIPE, NO.1
87263ABRACKET, HEATER WATER PIPE, NO.2
87263BBRACKET, HEATER WATER PIPE, NO.3
9011906141
main90119-06141
9033916007
main90339-16007
9046024039
main90460-24039
9165140612
main91651-40612
9165140614
main91651-40614
9611210250
main96112-10250
19 parts on this diagram · 2 diagrams in section
