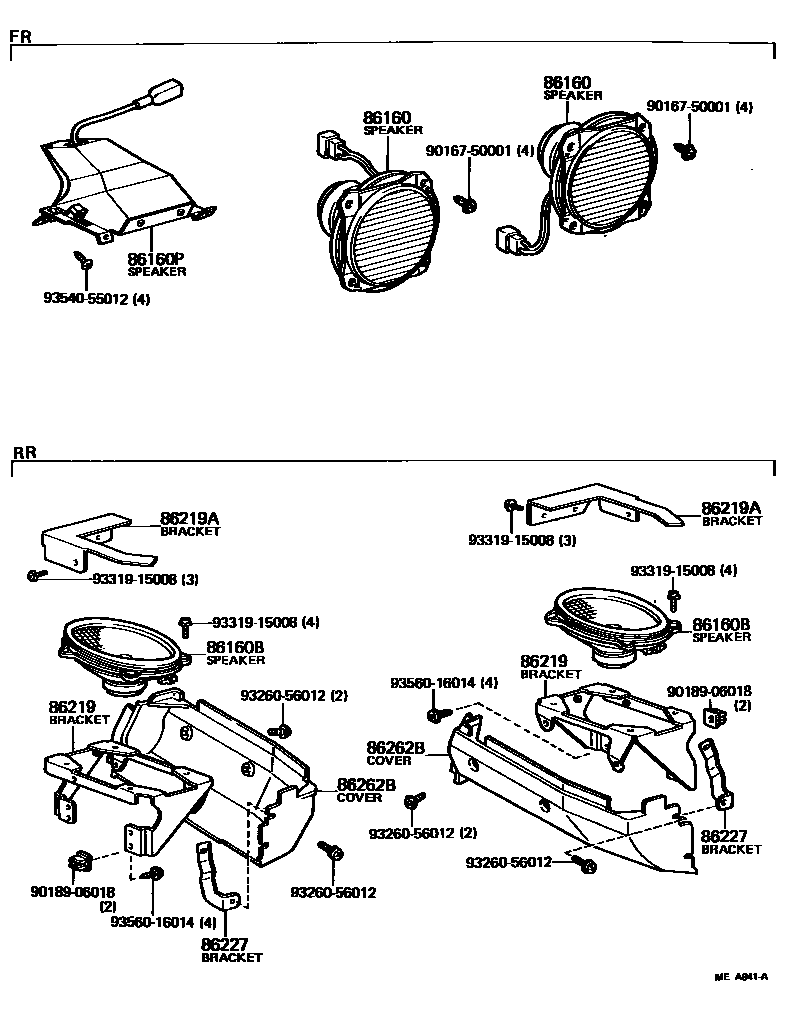

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
86160PSPEAKER ASSY, FRONT NO.2
86219BRACKET, STEREO COMPONENT SPEAKER, NO.1
RH
LH
86219ABRACKET, STEREO COMPONENT SPEAKER, NO.2
RH
LH
86227BRACKET, SPAKER COVER
RH
LH
86262BCOVER, SPEAKER, REAR
RH,BLACK,BLACK,TRIM2#
RH,BLUE,BLUE,TRIM8#
RH,DARK BROWN,BROWN,TRIM4#
RH,BLACK,W/RR SEAT BELT,BLACK,TRIM2#
RH,BLUE,W/RR SEAT BELT,BLUE,TRIM8#
RH,DARK BROWN,W/RR SEAT BELT,BROWN,TRIM4#
LH,BLACK,BLACK,TRIM2#
LH,BLUE,BLUE,TRIM8#
LH,DARK BROWN,BROWN,TRIM4#
LH,BLACK,W/RR SEAT BELT,BLACK,TRIM2#
LH,BLUE,W/RR SEAT BELT,BLUE,TRIM8#
LH,DARK BROWN,W/RR SEAT BELT,BROWN,TRIM4#
9016750001
main90167-50001
9018906018
main90189-06018
9326056012
main93260-56012
9331915008
main93319-15008
9354055012
main93540-55012
9356016014
main93560-16014
13 parts on this diagram · 1 diagram in section
