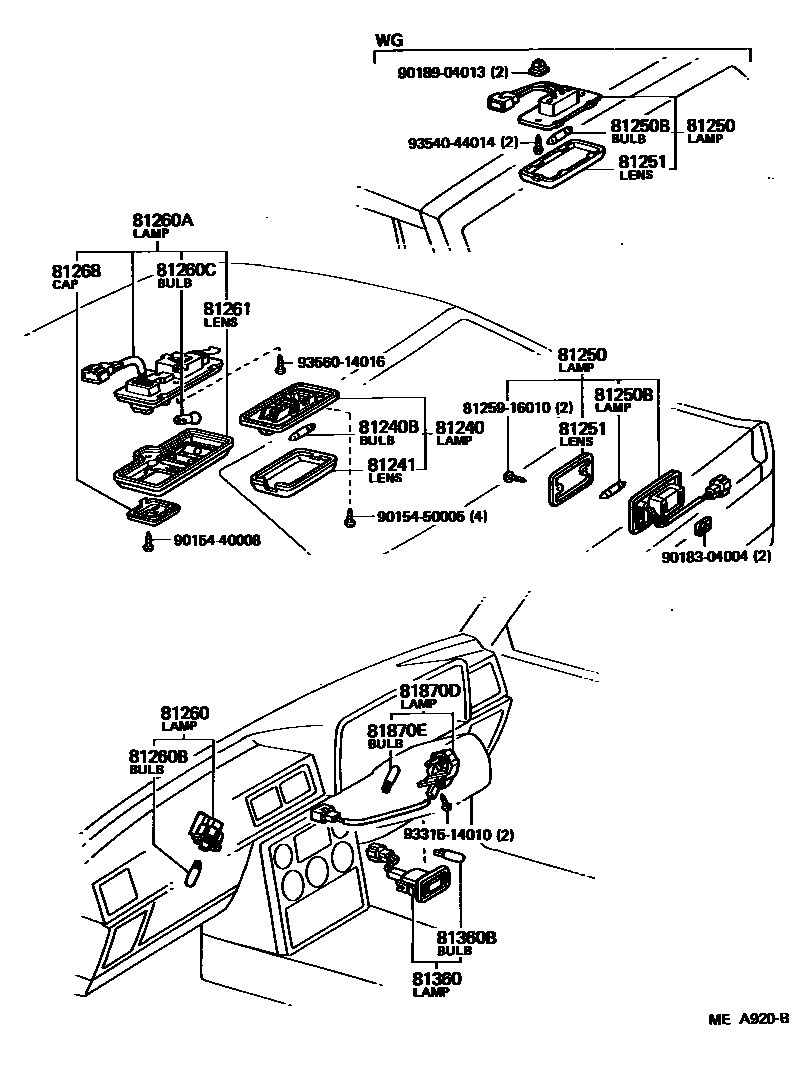

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
W/SUSPENDED HEADLINING
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 10W,12V 10W
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET,12V 1.2W
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
81268CAP MAP LAMP
81360LAMP ASSY, STEP OR SPOT
81360BBULB, STEP OR SPOT LAMP
12V 1.2W W/O SOCKET,12V 1.4W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12V 1.2W W/O SOCKET,12V 1.4W
8125916010
main81259-16010
9015440008
main90154-40008
9015450005
main90154-50005
9018304004
main90183-04004
9018904013
main90189-04013
9331514010
main93315-14010
9354044014
main93540-44014
9356014016
main93560-14016
24 parts on this diagram · 1 diagram in section
