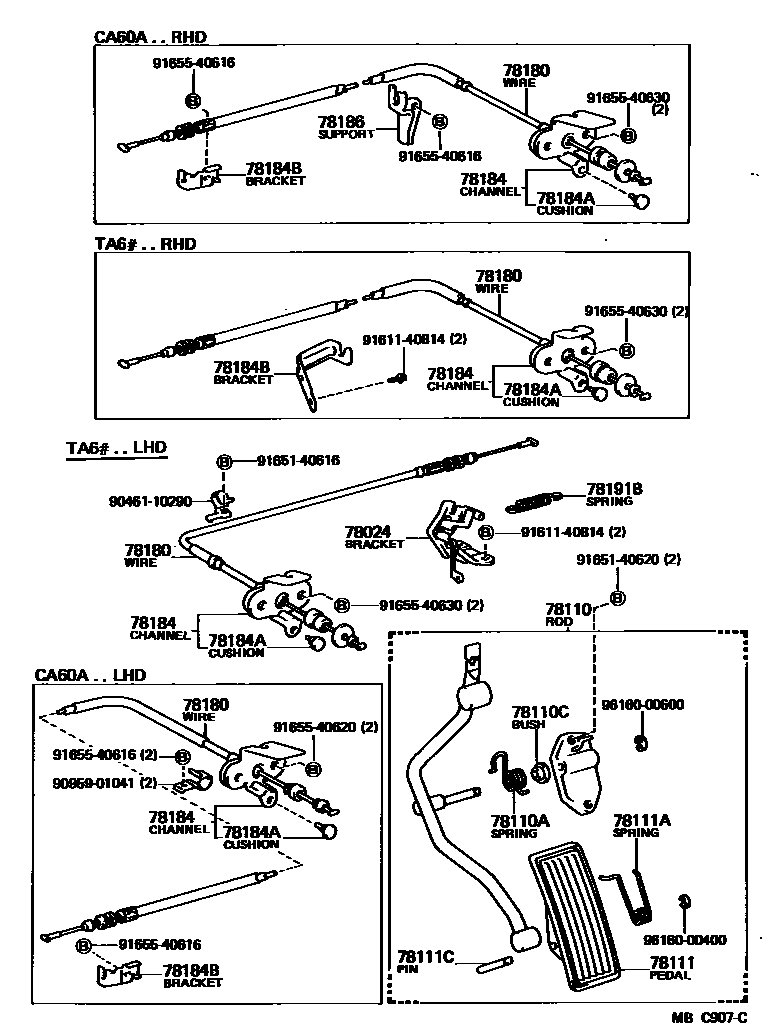

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-12010iTA6#..LHD198108-198309

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14270iTA6#..LHD..MTM198108-198309

main78120-14280iTA6#..RHD..MTM198108-198309

main78120-14290iTA6#..RHD..3FC198108-198309

main78120-14340iTA6#..LHD..3FC198108-198309

main78120-14380iCA60..RHD198204-198309

main78120-14400iCA60..LHD198204-198309

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18033iTA6#..3FC198108-198309

main90508-23052iTA6#..LHD..MTM198108-198309

sub90508-23064

main90508-23064iCA60..LHD198204-198309

main90508-26036iTA6#..RHD..MTM198108-198204

main90508-26049iCA60,TA6#..RHD..MTM198204-198309

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12023iCA60;TA6#..RHD..MTM198202-198309

78111PEDAL, ACCELERATOR

main78111-12100iCA60,TA6#198108-198309

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iCA60,TA6#198108-198309

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCA60,TA6#198108-198309

78180WIRE ASSY, ACCELERATOR

main78180-14320iCA60..RHD198204-198309

main78180-14330iTA6#..RHD198108-198309

sub78180-14270

main78180-14350iTA6#..LHD198108-198309

main78180-14510iCA60..LHD198204-198309

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14060iCA60,TA6#198108-198309

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iCA60,TA6#198108-198309

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12050iTA6#..RHD198108-198309

main78184-14060iCA60198204-198309

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-14020iCA60..RHD198204-198207

sub78186-14021

main78186-14021iCA60..RHD198207-198309

78191BSPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)

main90507-08002iTA6#..LHD198108-198309

9046110290

main90461-10290

9095901041

main90959-01041

9161140814

main91611-40814

9165140616

main91651-40616

9165140620

main91651-40620

9165540616

main91655-40616

9165540620

main91655-40620

9165540630

main91655-40630

9616000400

main96160-00400

9616000600

main96160-00600

23 parts on this diagram · 1 diagram in section
