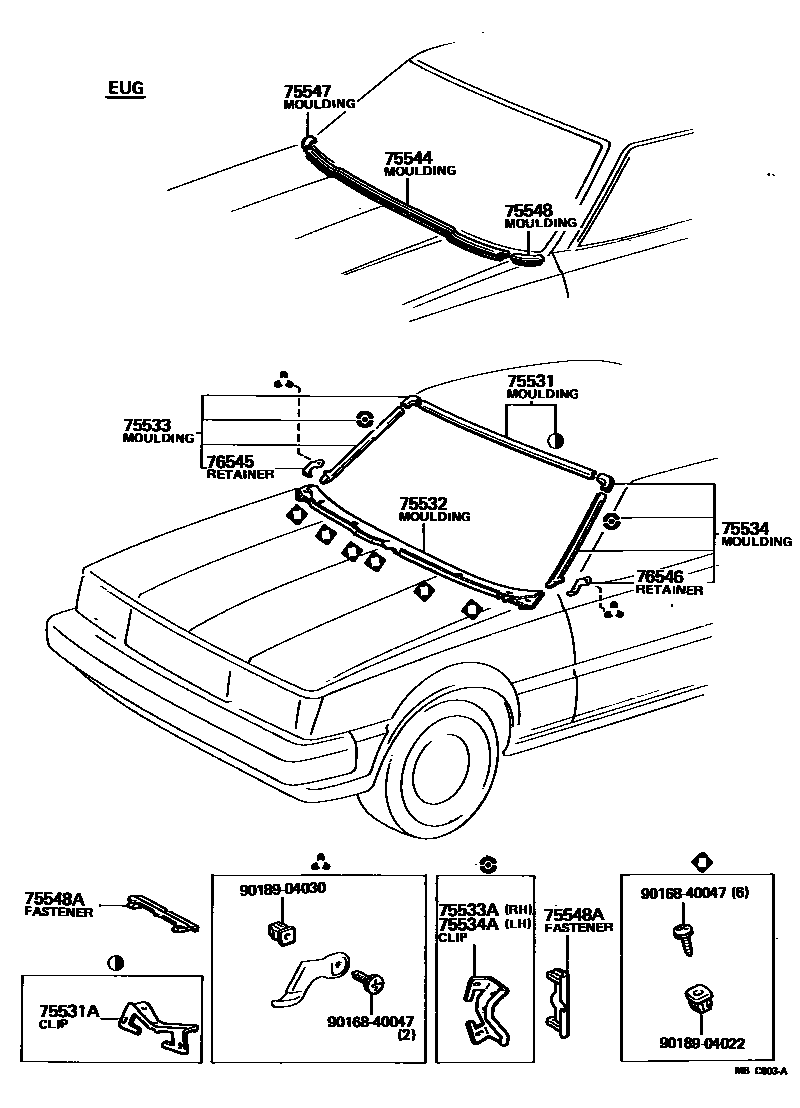

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75503-14030iTA60..CP..EUG198108-198309

main75503-14040iTA6#..XE198108-198309

main75531-14110iCA60,TA6#..SED,WG198108-198309

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75546-14080iCA60,TA6#198108-198309

75532MOULDING, WINDSHIELD, LOWER

main75535-14120iCA60,TA6#..RHD198108-198309

sub75535-14121

main75535-14130iCA60,TA6#..LHD198108-198309

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75053-14040iTA60..CP..EUG198108-198309

main75053-14050iTA6#..XE198108-198309

main75533-14120iCA60,TA6#..SED,WG198108-198309

75533ACLIP, WINDSHIELD SIDE MOULDING, RH

main75546-14080iCA60,TA6#..SED,WG198108-198309

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75054-14040iTA6#..XE198108-198309

main75054-14050iTA60..CP..EUG198108-198309

main75534-14090iCA60,TA6#..SED,WG198108-198309

75534ACLIP, WINDSHIELD SIDE MOULDING, LH

main75546-14080iCA60,TA6#..SED,WG198108-198309

75544MOULDING, HOOD, REAR

main75772-14010iCA60..LHD;TA60..LHD..GL;TA62..GL..EUG;TA60..(SED,WG)..DLX..EUG198108-198309

75547MOULDING, FRONT FENDER, RH

main75615-14100iCA60..LHD;TA60..LHD..GL;TA62..GL..EUG;TA60..(SED,WG)..DLX..EUG198108-198309

75548MOULDING, FRONT FENDER, LH

main75616-14100iCA60..LHD;TA60..LHD..GL;TA62..GL..EUG;TA60..(SED,WG)..DLX..EUG198108-198309

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-24020iCA60,TA6#198108-198309

76545RETAINER, WINDSHIELD MOULDING, RH

main76545-14040iCA60,TA6#..SED,WG198108-198309

76546RETAINER, WINDSHIELD MOULDING, LH

main76546-14040iCA60,TA6#..SED,WG198108-198309

9016840047

main90168-40047

9018904022

main90189-04022

9018904030

main90189-04030

16 parts on this diagram · 2 diagrams in section
