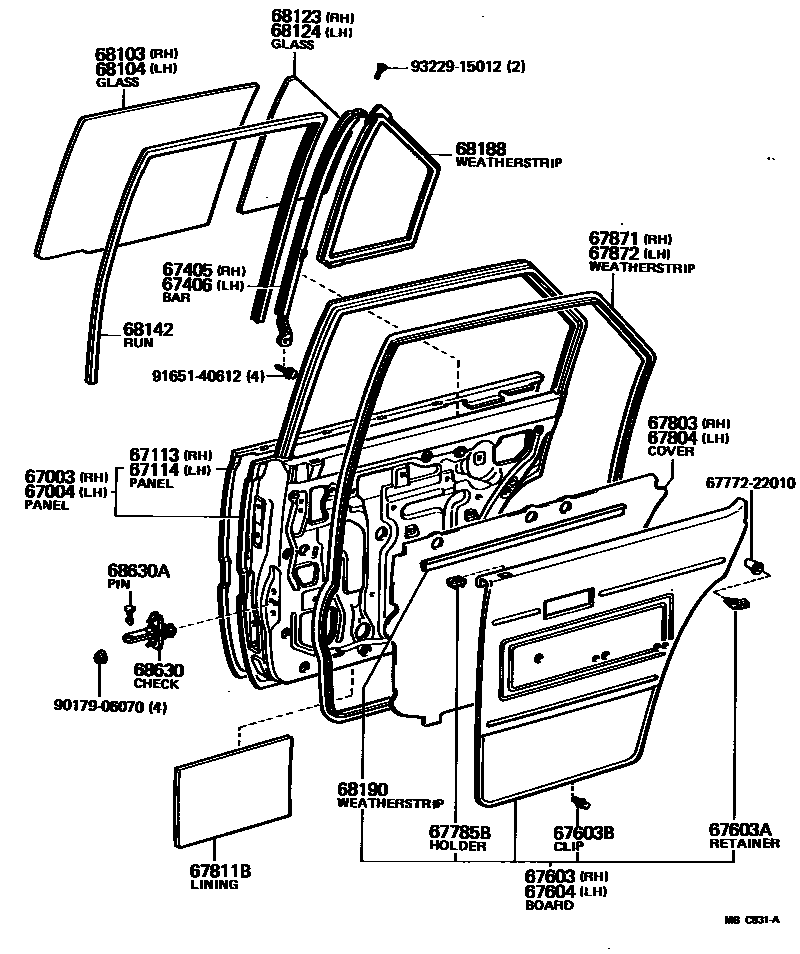

REAR DOOR PANEL & GLASS
67113PANEL, REAR DOOR, OUTER RH
sub67113-14040
67114PANEL, REAR DOOR, OUTER LH
sub67114-14040
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67811BPAD, SIDE PANEL SILENCER
sub67812-12010
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5,T=3.5,*TT
*TT,T=3.5,T=3.5,*TT
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5,T=3.5,*TT
*TT,T=3.5,T=3.5,*TT
68123GLASS, REAR DOOR WINDOW, RH
T=3.5,*TT
T=3.5,*TT
68124GLASS, REAR DOOR WINDOW, LH
T=3.5,*TT
T=3.5,*TT
68142RUN, REAR DOOR GLASS
sub68142-91C02
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH
RH
LH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
sub68617-12010
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9017906070
main90179-06070
9165140612
main91651-40612
9322915012
main93229-15012
29 parts on this diagram · 1 diagram in section
