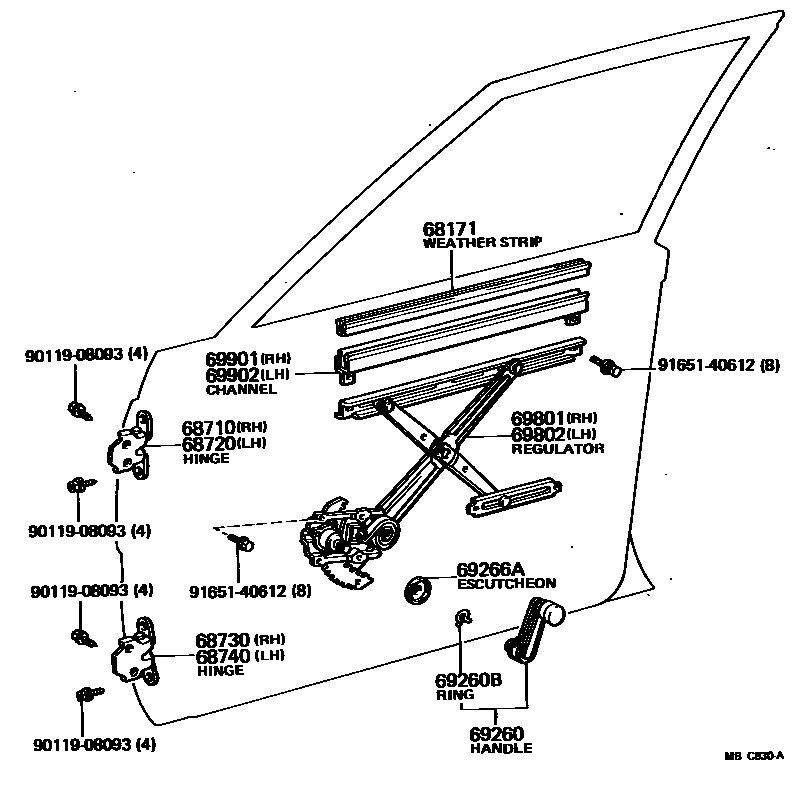

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iCA60,TA6#..SED,WG198108-198309

sub69971-22010

main69971-22010iTA6#..CP198108-198309

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iCA60,TA6#198108-198309

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iCA60,TA6#198108-198309

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iCA60,TA6#..SED,WG198108-198309

main68730-14050iTA6#..CP198108-198309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iCA60,TA6#..SED,WG198108-198309

main68740-14050iTA6#..CP198108-198309

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-01iTA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ198108-198309

BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-04iTA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ198108-198309

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-06iTA60..GEN;TA62..DLX,XE;TA60..CP..EUG;TA62..GL..SDZ198108-198309

DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14030-01iCA60,TA6#..(SED,WG)..EUG198108-198309

BLACK,BLACK,TRIM2#

sub69260-14030

main69260-14030-04iCA60,TA6#..SED..EUG198108-198309

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14030-06iCA60,TA6#..(SED,WG)..EUG198108-198309

DARK BROWN,BROWN,TRIM4#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCA60,TA6#198108-198309

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010iCA60,TA6#198108-198309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-14120iCA60,TA6#..SED,WG198108-198309

main69810-14160iTA6#..CP198108-198309

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-14110iCA60,TA6#..SED,WG198108-198309

main69820-14150iTA6#..CP198108-198309

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iCA60,TA6#..SED,WG198206-198309

main69901-14050iTA6#..CP198108-198309

main69901-14070iCA60,TA6#..SED,WG198108-198206

sub69901-12080

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iCA60,TA6#..SED,WG198206-198309

main69901-14050iTA6#..CP198108-198309

main69901-14070iCA60,TA6#..SED,WG198108-198206

sub69901-12080

9011908093

main90119-08093

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
