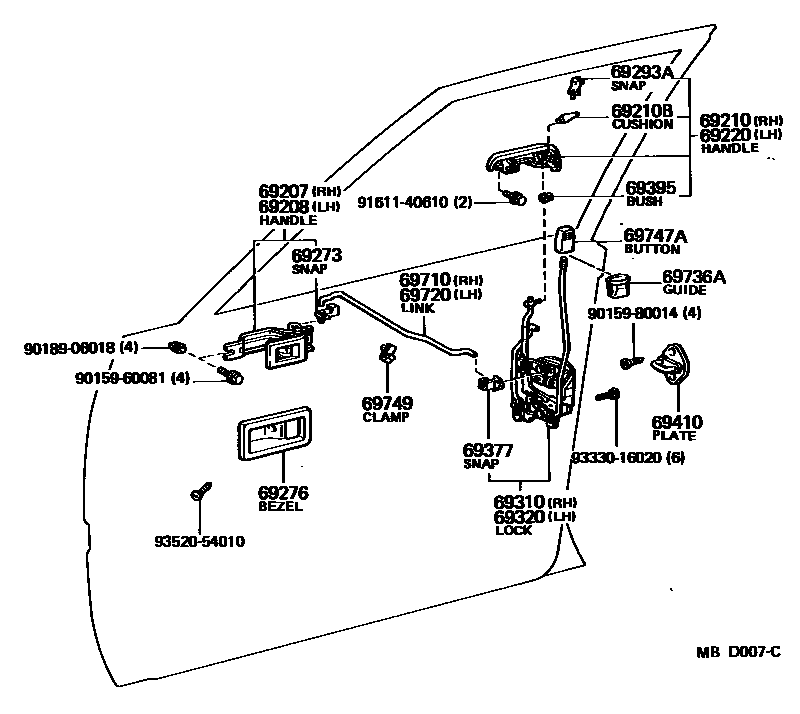

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-14040-01iCA60,TA6#..SED,WG198108-198305

BLACK,BLACK,TRIM2#

main69205-14040-04iCA60,TA6#..SED198108-198305

BLUE,BLUE,TRIM8#

main69205-14040-06iCA60,TA6#..SED,WG198108-198305

DARK BROWN,BROWN,TRIM4#

main69205-14041-01iCA60,TA6#..SED,WG198305-198309

BLACK,BLACK,TRIM2#

main69205-14041-04iCA60,TA6#..SED198305-198309

BLUE,BLUE,TRIM8#

main69205-14041-06iCA60,TA6#..SED,WG198305-198309

DARK BROWN,BROWN,TRIM4#

main69205-14050-01iTA6#..CP198108-198305

BLACK,BLACK,TRIM2#

main69205-14050-04iTA6#..CP198108-198305

BLUE,BLUE,TRIM8#

main69205-14050-06iTA6#..CP198108-198305

DARK BROWN,BROWN,TRIM4#

main69205-14070-01iTA6#..CP198305-198309

BLACK,BLACK,TRIM2#

main69205-14070-04iTA6#..CP198305-198309

BLUE,BLUE,TRIM8#

main69205-14070-06iTA6#..CP198305-198309

DARK BROWN,BROWN,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-14040-01iCA60,TA6#..SED,WG198108-198305

BLACK,BLACK,TRIM2#

main69206-14040-04iCA60,TA6#..SED198108-198305

BLUE,BLUE,TRIM8#

main69206-14040-06iCA60,TA6#..SED,WG198108-198305

DARK BROWN,BROWN,TRIM4#

main69206-14041-01iCA60,TA6#..SED,WG198305-198309

BLACK,BLACK,TRIM2#

main69206-14041-04iCA60,TA6#..SED198305-198309

BLUE,BLUE,TRIM8#

main69206-14041-06iCA60,TA6#..SED,WG198305-198309

DARK BROWN,BROWN,TRIM4#

main69206-14050-01iTA6#..CP198108-198305

BLACK,BLACK,TRIM2#

main69206-14050-04iTA6#..CP198108-198305

BLUE,BLUE,TRIM8#

main69206-14050-06iTA6#..CP198108-198305

DARK BROWN,BROWN,TRIM4#

main69206-14070-01iTA6#..CP198305-198309

BLACK,BLACK,TRIM2#

main69206-14070-04iTA6#..CP198305-198309

BLUE,BLUE,TRIM8#

main69206-14070-06iTA6#..CP198305-198309

DARK BROWN,BROWN,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14050iCA60,TA6#..DLX,GL¥3,150198108-198309

main69210-14060iTA6#..XE¥3,280198108-198309

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCA60,TA6#¥310198108-198309

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14050iCA60,TA6#..DLX,GL¥3,150198108-198309

main69220-14060iTA6#..XE¥3,280198108-198309

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iTA6#..CP¥180198108-198305

RH

main69759-14050iTA6#..CP¥180198108-198305

LH

main69759-20030iTA6#..CP¥250198305-198309

LH

main69759-20060iCA60,TA6#..SED,WG¥240198305-198309

RH

main69759-20070iTA6#..CP¥140198305-198309

LH

main69759-20070iCA60,TA6#..SED,WG¥140198305-198309

RH

main69759-24070iTA6#..CP¥180198108-198305

RH

main69759-24070iCA60,TA6#..SED,WG¥180198108-198305

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-14020-01iTA6#..CP198108-198309

BLACK,BLACK,TRIM2#

main69277-14020-04iTA6#..CP198108-198309

BLUE,BLUE,TRIM8#

main69277-14020-06iTA6#..CP198108-198309

DARK BROWN,BROWN,TRIM4#

main69277-16040-01iCA60,TA6#..SED,WG198108-198309

BLACK,BLACK,TRIM2#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-06iCA60,TA6#..SED,WG198108-198309

DARK BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-14iCA60,TA6#..SED198108-198309

BLUE,BLUE,TRIM8#

sub69277-16040¥670

sub69277-89104¥670

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16010iCA60,TA6#¥240198108-198309

RH

main69293-16020iCA60,TA6#¥240198108-198309

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-14150iCA60,TA6#..SED,WG198108-198305

main69310-14151iCA60,TA6#..SED,WG¥10,800198305-198309

main69310-14200iTA6#..CP198305-198309

main69310-14220iTA6#..CP198108-198305

69320LOCK ASSY, FRONT DOOR, LH

main69320-14120iCA60,TA6#..SED,WG198108-198305

main69320-14121iCA60,TA6#..SED,WG¥10,800198305-198309

main69320-14170iTA6#..CP198305-198309

main69320-14190iTA6#..CP198108-198305

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20080iCA60,TA6#..SED,WG¥280198305-198309

LH

main69759-20090iCA60,TA6#..SED,WG¥280198305-198309

RH

main69759-24050iTA6#..CP¥240198108-198309

main69759-24050iCA60,TA6#..SED,WG¥240198108-198305

LH

main69759-24060iCA60,TA6#..SED,WG¥290198108-198305

RH

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main90386-06030iCA60,TA6#¥210198108-198309

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iCA60,TA6#¥1,220198305-198309

main69410-14040iCA60,TA6#¥1,460198108-198305

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-14050iCA60,TA6#..SED,WG¥650198108-198305

main69711-14051iCA60,TA6#..SED,WG¥650198305-198309

main69711-14070iTA6#..CP198108-198305

main69711-14080iTA6#..CP198305-198309

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-14050iCA60,TA6#..SED,WG¥650198108-198305

main69712-14051iCA60,TA6#..SED,WG¥650198305-198309

main69712-14070iTA6#..CP198108-198305

main69712-14080iTA6#..CP198305-198309

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-22021iCA60,TA6#..SED,WG¥500198108-198309

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020-01iTA6#..SED,WG198108-198202

BLACK,BLACK,TRIM2#

sub69741-20020¥370

sub69741-32010¥340

main69741-20020-14iTA6#..SED,WG198108-198202

BLUE,BLUE,TRIM8#

sub69741-20020¥370

sub69741-32010¥340

main69741-20020-16iTA6#..SED,WG198108-198202

DARK BROWN,BROWN,TRIM4#

sub69741-20020¥370

sub69741-32010¥340

main69741-32010-01iCA60,TA6#..SED,WG198202-198309

BLACK,BLACK,TRIM2#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-04iCA60,TA6#..SED,WG198202-198309

BLUE,BLUE,TRIM8#

sub69741-32010¥340

sub69741-90K00¥360

main69741-32010-16iCA60,TA6#..SED,WG198202-198309

DARK BROWN,BROWN,TRIM4#

sub69741-32010¥340

sub69741-90K00¥360

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iCA60,TA6#..SED,WG¥140198108-198207

main69749-12030iTA6#..CP¥180198108-198305

main69749-12040iTA6#..CP¥300198305-198309

main69749-20010iCA60,TA6#..SED,WG¥180198305-198309

main69749-30020iCA60,TA6#..SED,WG¥280198207-198305

9015960081

main90159-60081¥70

9015980014

main90159-80014¥120

9018906018

main90189-06018¥80

9161140610

main91611-40610¥140

9333016020

main93330-16020¥120

9352054010

main93520-54010¥110

24 parts on this diagram · 2 diagrams in section
