E
EPC Data

DECK BOARD & DECK TRIM COVER

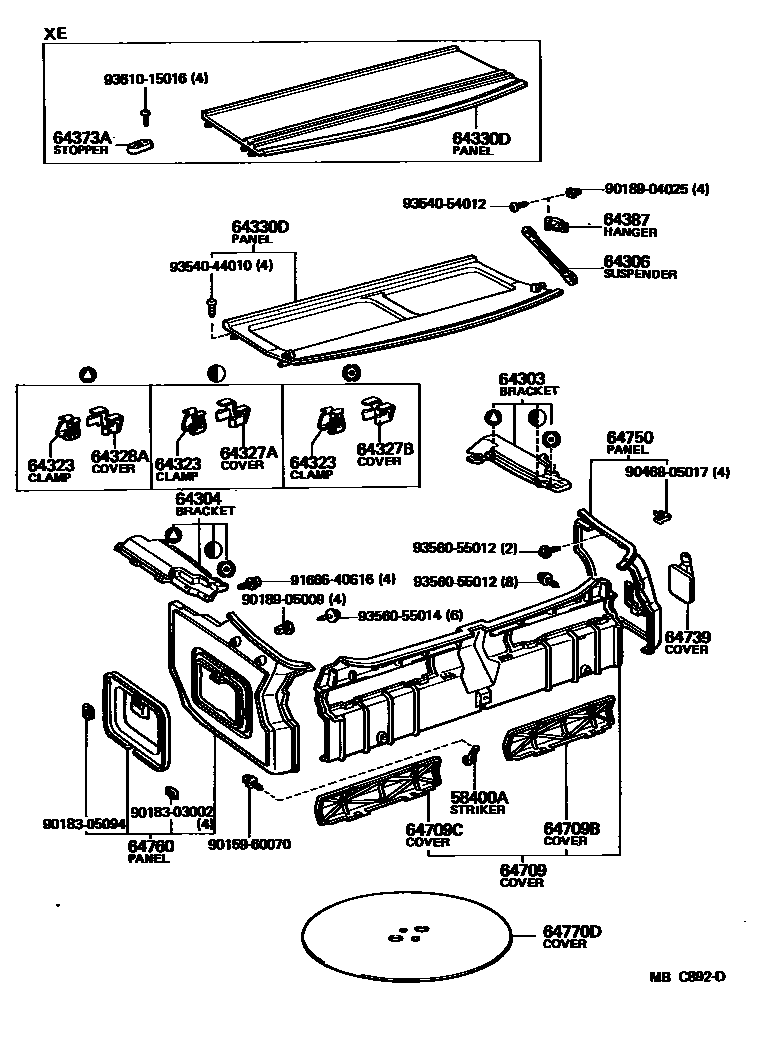

Parts diagram
58400ASTRIKER, LUGGAGE HOLD BELT
main58461-14050i198108-198309
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
main64301-14020-01i198108-198309
BLACK,BLACK,TRIM2#
main64301-14020-04i198108-198309
BLUE,BLUE,TRIM8#
main64301-14020-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main64301-14030-01i198108-198309
BLACK,BLACK,TRIM2#
main64301-14030-04i198108-198309
BLUE,BLUE,TRIM8#
main64301-14030-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main64301-14050-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64301-14050-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64301-14050-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
main64301-14060-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64301-14060-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64301-14060-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
main64302-14020-01i198108-198309
BLACK,BLACK,TRIM2#
main64302-14020-04i198108-198309
BLUE,BLUE,TRIM8#
main64302-14020-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main64302-14030-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64302-14030-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64302-14030-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
main64302-14040-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64302-14040-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64302-14040-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
main64302-14050-01i198108-198309
BLACK,BLACK,TRIM2#
main64302-14050-04i198108-198309
BLUE,BLUE,TRIM8#
main64302-14050-06i198108-198309
DARK BROWN,BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64367-12010i198108-198309
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-14020i198108-198309
64327ACOVER, PACKAGE TRAY TRIM CLAMP, NO.1
main64327-14050-01i198108-198309
RH,BLACK,BLACK,TRIM2#
main64327-14050-04i198108-198309
RH,BLUE,BLUE,TRIM8#
main64327-14050-06i198108-198309
RH,DARK BROWN,BROWN,TRIM4#
main64327-14060-01i198108-198309
RH,BLACK,BLACK,TRIM2#
main64327-14060-04i198108-198309
RH,BLUE,BLUE,TRIM8#
main64327-14060-06i198108-198309
RH,DARK BROWN,BROWN,TRIM4#
main64328-14070-01i198108-198309
LH,BLACK,BLACK,TRIM2#
sub64328-14070
main64328-14070-04i198108-198309
LH,BLUE,BLUE,TRIM8#
sub64328-14070
main64328-14070-06i198108-198309
LH,DARK BROWN,BROWN,TRIM4#
sub64328-14070
main64328-14080-01i198108-198309
LH,BLACK,BLACK,TRIM2#
main64328-14080-04i198108-198309
LH,BLUE,BLUE,TRIM8#
main64328-14080-06i198108-198309
LH,DARK BROWN,BROWN,TRIM4#
64327BCOVER, PACKAGE TRAY TRIM CLAMP, NO.2
main64327-14050-01i198108-198309
RH,BLACK,BLACK,TRIM2#
main64327-14050-04i198108-198309
RH,BLUE,BLUE,TRIM8#
main64327-14050-06i198108-198309
RH,DARK BROWN,BROWN,TRIM4#
main64328-14070-01i198108-198309
LH,BLACK,BLACK,TRIM2#
sub64328-14070
main64328-14070-04i198108-198309
LH,BLUE,BLUE,TRIM8#
sub64328-14070
main64328-14070-06i198108-198309
LH,DARK BROWN,BROWN,TRIM4#
sub64328-14070
64328ACOVER, PACKAGE TRAY TRIM CLAMP
main64328-14040-01i198108-198309
BLACK,BLACK,TRIM2#
main64328-14040-04i198108-198309
BLUE,BLUE,TRIM8#
main64328-14040-06i198108-198309
DARK BROWN,BROWN,TRIM4#
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-14380-01i198108-198309
BLACK,BLACK,TRIM2#
sub64330-14380
main64330-14380-04i198108-198309
BLUE,BLUE,TRIM8#
sub64330-14380
main64330-14380-06i198108-198309
DARK BROWN,BROWN,TRIM4#
sub64330-14380
main64330-14390-01i198108-198309
BLACK,BLACK,TRIM2#
sub64330-14390
main64330-14390-04i198108-198309
BLUE,BLUE,TRIM8#
sub64330-14390
main64330-14390-06i198108-198309
DARK BROWN,BROWN,TRIM4#
sub64330-14390
64373ASTOPPER, PACKAGE TRAY TRIM
main64373-14030i198108-198309
64387HANGER, PACKAGE TRAY TRIM
main64381-12010i198108-198309
64709COVER SUB-ASSY, LOWER BACK PANEL
main64716-14120-01i198108-198309
BLACK,BLACK,TRIM2#
sub64716-14120
main64716-14120-04i198108-198309
BLUE,BLUE,TRIM8#
sub64716-14120
main64716-14120-06i198108-198309
DARK BROWN,BROWN,TRIM4#
sub64716-14120
64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)
main64745-14050-01i198108-198309
BLACK,BLACK,TRIM2#
main64745-14050-04i198108-198309
BLUE,BLUE,TRIM8#
main64745-14050-06i198108-198309
DARK BROWN,BROWN,TRIM4#
64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)
main64745-14050-01i198108-198309
BLACK,BLACK,TRIM2#
main64745-14050-04i198108-198309
BLUE,BLUE,TRIM8#
main64745-14050-06i198108-198309
DARK BROWN,BROWN,TRIM4#
64739COVER, DECK TRIM SIDE WASHER
main64739-14021-01i198108-198309
BLACK,BLACK,TRIM2#
sub64739-14021
main64739-14021-24i198108-198309
BLUE,BLUE,TRIM8#
sub64739-14021
main64739-14021-26i198108-198309
DARK BROWN,BROWN,TRIM4#
sub64739-14021
64750PANEL ASSY, DECK SIDE TRIM, RH
main64730-14090-01i198108-198309
BLACK,BLACK,TRIM2#
main64730-14090-04i198108-198309
BLUE,BLUE,TRIM8#
main64730-14090-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main64730-14100-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64730-14100-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64730-14100-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
main64740-14090-01i198108-198309
BLACK,BLACK,TRIM2#
main64740-14090-04i198108-198309
BLUE,BLUE,TRIM8#
main64740-14090-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main64740-14100-01i198108-198309
W/RR SEAT BELT,BLACK,BLACK,TRIM2#
main64740-14100-04i198108-198309
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
main64740-14100-06i198108-198309
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
main64770-14010i198108-198309
9015960070
main90159-60070
9018303002
main90183-03002
9018305094
main90183-05094
9018904025
main90189-04025
9018905009
main90189-05009
9046805017
main90468-05017
9166640616
main91666-40616
9354044010
main93540-44010
9354054012
main93540-54012
9356055012
main93560-55012
9356055014
main93560-55014
9361015016
main93610-15016

30 parts on this diagram · 1 diagram in section
