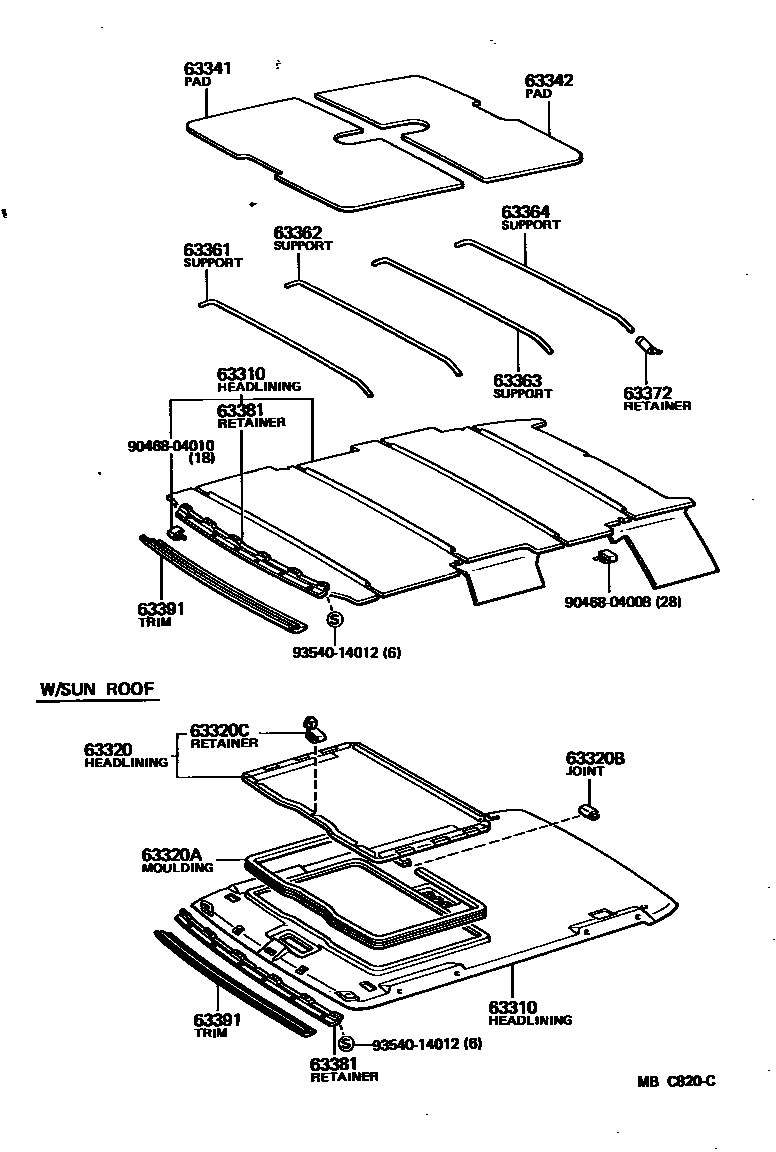

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
IVORY
W/SUN ROOF,IVORY
IVORY
IVORY,IVORY
63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63320BJOINT, SUN ROOF OPENING TRIM
63320CRETAINER, TRIM BOARD(FOR SUN ROOF)
63361SUPPORT, ROOF HEADLINING, NO.1
L=1004
L=1007
L=1001
L=1008,BLACK
L=1016,BLUE
L=1012,WHITE
63362SUPPORT, ROOF HEADLINING, NO.2
L=1004
L=1007
L=1001
L=1008,BLACK
L=1016,BLUE
L=1012,WHITE
63363SUPPORT, ROOF HEADLINING, NO.3
L=1004
L=1007
L=1001
L=1008,BLACK
L=1016,BLUE
L=1012,WHITE
63364SUPPORT, ROOF HEADLINING, NO.4
L=1004
L=1007
L=1001
L=1008,BLACK
L=1016,BLUE
L=1012,WHITE
63372RETAINER, HEADLINING SUPPORT
63381RETAINER, HEADLINING, FRONT
63391TRIM, ROOF HEADLINING, FRONT
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
9046804008
main90468-04008
9046804010
main90468-04010
9354014012
main93540-14012
17 parts on this diagram · 3 diagrams in section
