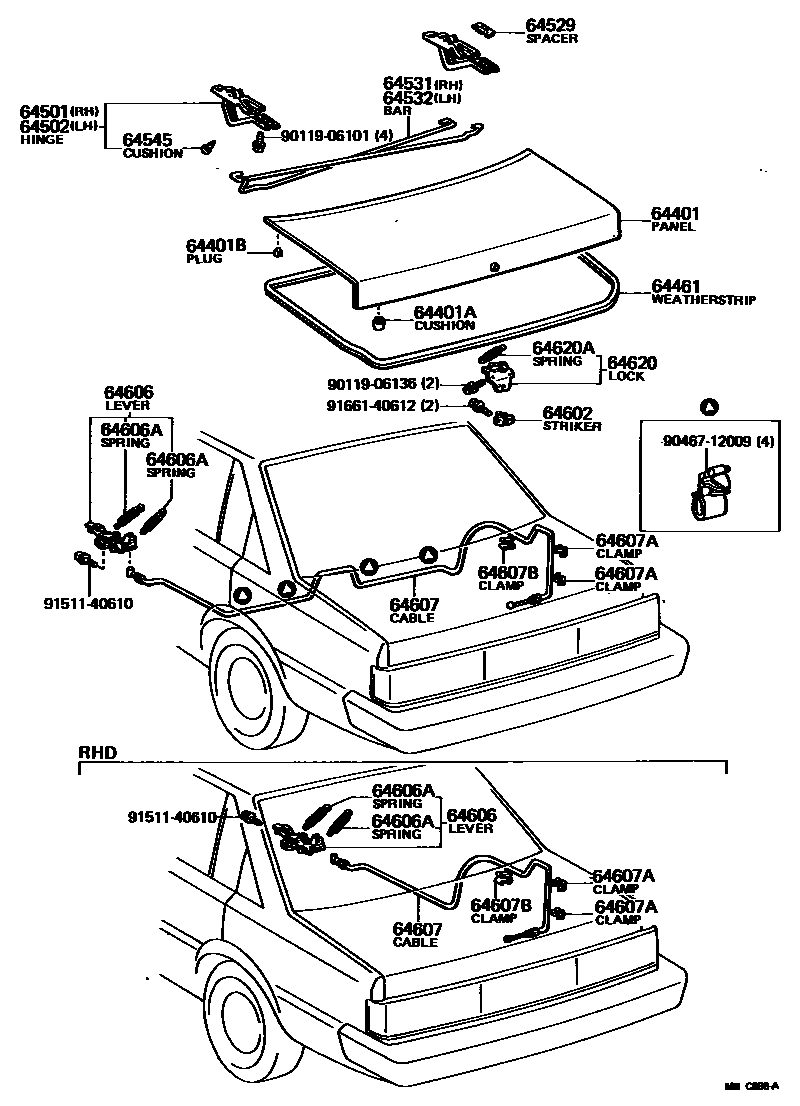

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
RR
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
FR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W/CANCEL
W/CANCEL
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
W/CANCEL
9011906101
main90119-06101
9011906136
main90119-06136
9046712009
main90467-12009
9151140610
main91511-40610
9166140612
main91661-40612
23 parts on this diagram · 1 diagram in section
