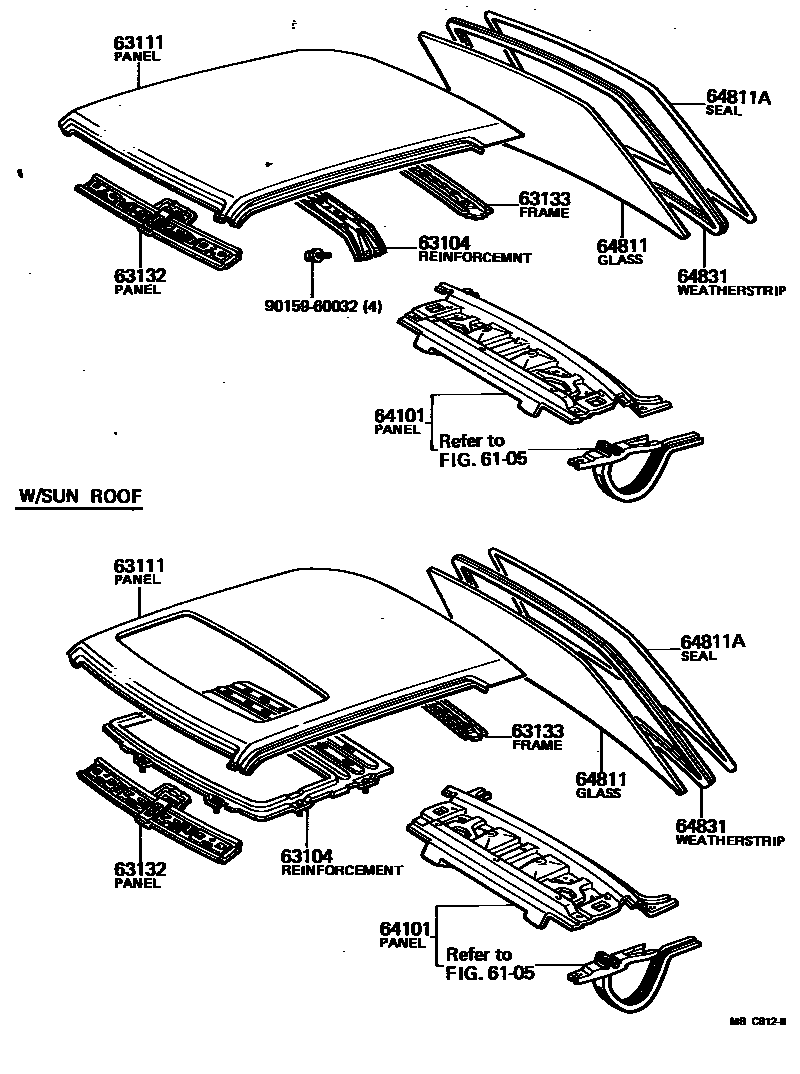

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6105

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-14070iCA60,TA6#..SED198108-198309

main63141-14070iTA6#..CP198108-198309

sub63103-14090

main63141-91C01iCA60,TA6#..WG198108-198309

main63142-14020iCA60,TA6#..CP,SED198108-198309

W/SUN ROOF

63111PANEL, ROOF

main63111-14120iCA60,TA6#..SED198108-198309

main63111-14130iCA60,TA6#..SED198108-198309

W/SUN ROOF

main63111-14180iTA6#..CP198108-198309

main63111-14190iTA6#..CP198108-198309

W/SUN ROOF

main63111-91C01iCA60,TA6#..WG198108-198309

63132PANEL, WINDSHIELD HEADER, INNER

main63102-14030iCA60,TA6#..SED,WG198108-198309

main63102-14040iTA6#..CP198108-198309

sub63102-14090

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-14040iTA6#..CP198108-198309

main63105-91C01iCA60,TA60..WG198108-198309

sub63105-91C02

main63105-91C02iCA60,TA6#..WG198108-198309

W/RR WIPER

main63133-14080iCA60,TA6#..SED198108-198309

64101PANEL SUB-ASSY, UPPER BACK

main64101-14140iCA60,TA6#..SED198108-198309

64811GLASS, BACK WINDOW

main64801-14350iCA60,TA6#..SED198108-198309

T=3.5,*TT,W/*DEF

main64801-14370iCA60,TA6#..SED..LHD..EUR198108-198309

T=3.5,*TT,W/HEAVY *DEF

main64811-14510iCA60,TA60..SED..DLX198108-198309

T=3.5,*TT

sub64801-14350

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14020iCA60,TA6#..SED198108-198309

sub64814-20020

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14100iCA60,TA6#..SED198108-198309

main64812-14110iCA60,TA6#..SED198108-198309

W/SUN ROOF

9015960032

main90159-60032

10 parts on this diagram · 4 diagrams in section
