MAT & CARPET

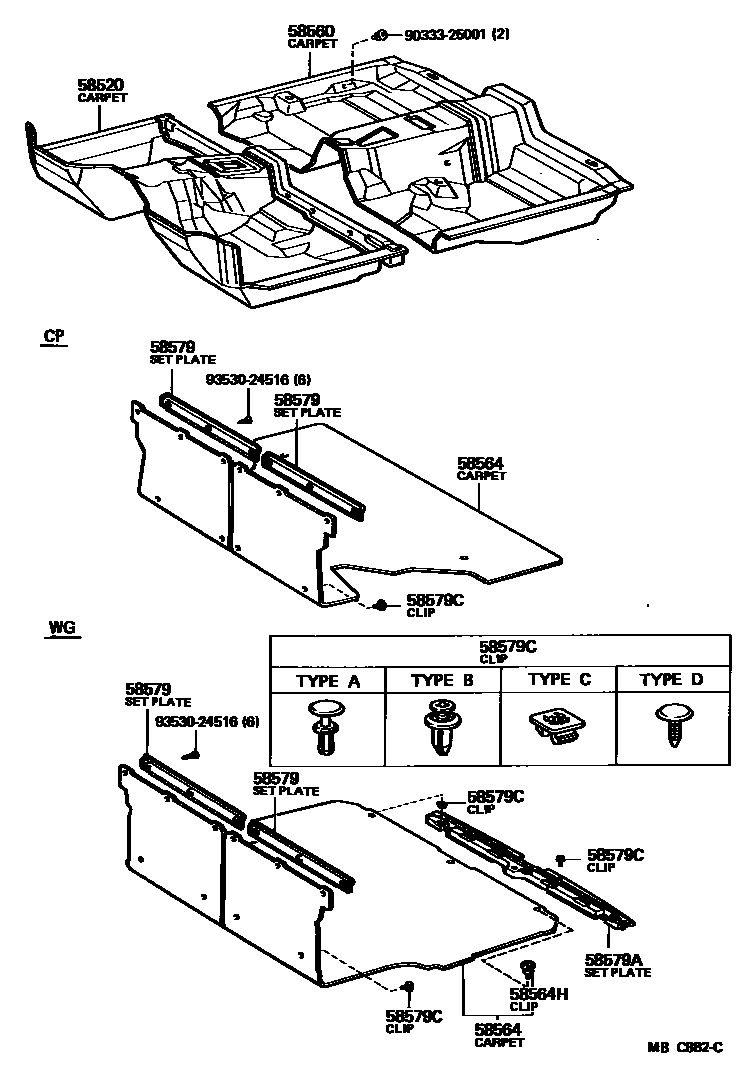

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-14540-03i198108-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
sub58510-14540¥50,400
main58510-14540-05i198108-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
sub58510-14540¥50,400
main58510-14540-14i198108-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14540¥50,400
main58510-14640-03i198108-198309
GRAY,GRAY,TRIM2#
sub58510-14640¥43,700
main58510-14640-04i198305-198309
BLUE,BLUE,TRIM8#
sub58510-14640¥43,700
main58510-14640-05i198108-198309
BEIGE,BEIGE,TRIM4#
sub58510-14640¥43,700
main58510-14640-14i198108-198305
BLUE,BLUE,TRIM8#
sub58510-14640¥43,700
main58510-14650-03i198108-198309
GRAY,GRAY,TRIM2#
main58510-14650-04i198305-198309
BLUE,BLUE,TRIM8#
main58510-14650-05i198108-198309
BEIGE,BEIGE,TRIM4#
main58510-14650-14i198108-198305
BLUE,BLUE,TRIM8#
main58510-14660-03i198108-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
sub58510-14660¥37,900
main58510-14660-04i198305-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14660¥37,900
main58510-14660-05i198108-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
sub58510-14660¥37,900
main58510-14660-14i198108-198305
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14660¥37,900
main58510-14670-03i198108-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
main58510-14670-05i198108-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
main58510-14680-03i198108-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
sub58510-14680¥36,000
main58510-14680-04i198305-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14680¥36,000
main58510-14680-05i198108-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
sub58510-14680¥36,000
main58510-14680-14i198108-198305
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14680¥36,000
main58510-14690-03i198108-198309
GRAY,GRAY,TRIM2#
sub58510-14690¥45,800
main58510-14690-05i198108-198309
BEIGE,BEIGE,TRIM4#
sub58510-14690¥45,800
main58510-14690-14i198108-198309
BLUE,BLUE,TRIM8#
sub58510-14690¥45,800
main58510-14710-03i198108-198309
GRAY,GRAY,TRIM2#
main58510-14710-05i198108-198309
BEIGE,BEIGE,TRIM4#
main58510-14730-03i198204-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
sub58510-14730¥40,900
main58510-14730-04i198305-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14730¥40,900
main58510-14730-05i198204-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
sub58510-14730¥40,900
main58510-14730-14i198204-198305
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14730¥40,900
main58510-14770-03i198108-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
main58510-14770-05i198108-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
main58510-14770-14i198108-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
main58510-14780-03i198108-198309
GRAY,GRAY,TRIM2#
main58510-14780-05i198108-198309
BEIGE,BEIGE,TRIM4#
main58510-14780-14i198108-198309
BLUE,BLUE,TRIM8#
main58510-14790-03i198204-198309
W/RR DUCT,GRAY,GRAY,TRIM2#
sub58510-14680¥36,000
sub58510-14790¥39,600
main58510-14790-04i198305-198309
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14680¥36,000
sub58510-14790¥39,600
main58510-14790-05i198204-198309
W/RR DUCT,BEIGE,BEIGE,TRIM4#
sub58510-14680¥36,000
sub58510-14790¥39,600
main58510-14790-14i198204-198305
W/RR DUCT,BLUE,BLUE,TRIM8#
sub58510-14680¥36,000
sub58510-14790¥39,600
main58510-20660-03i198204-198309
GRAY,GRAY,TRIM2#
main58510-20660-04i198305-198309
BLUE,TRIM8#
main58510-20660-05i198204-198309
BEIGE,BEIGE,TRIM4#
main58510-20660-14i198204-198305
BLUE,BLUE,TRIM8#
main58510-20670-03i198204-198309
GRAY,GRAY,TRIM2#
main58510-20670-04i198305-198309
BLUE,TRIM8#
main58510-20670-05i198204-198309
BEIGE,BEIGE,TRIM4#
main58510-20670-14i198204-198305
BLUE,BLUE,TRIM8#
58560CARPET ASSY, FLOOR, REAR
main58540-14190-03i198108-198309
GRAY,GRAY,TRIM2#
sub58540-14190¥34,400
main58540-14190-04i198305-198309
BLUE,BLUE,TRIM8#
sub58540-14190¥34,400
main58540-14190-05i198108-198309
BEIGE,BEIGE,TRIM4#
sub58540-14190¥34,400
main58540-14190-14i198108-198305
BLUE,BLUE,TRIM8#
sub58540-14190¥34,400
main58540-14250-03i198108-198309
GRAY,GRAY,TRIM2#
sub58540-14250¥39,600
main58540-14250-05i198108-198309
BEIGE,BEIGE,TRIM4#
sub58540-14250¥39,600
main58540-14250-14i198108-198309
BLUE,BLUE,TRIM8#
sub58540-14250¥39,600
main58540-14290-03i198108-198309
GRAY,GRAY,TRIM2#
main58540-14290-05i198108-198309
BEIGE,BEIGE,TRIM4#
main58540-14290-14i198108-198309
BLUE,BLUE,TRIM8#
58564CARPET, REAR FLOOR
main58570-14180-01i198108-198309
BLACK,BLACK,TRIM2#
sub58570-14180¥52,000
main58570-14180-04i198108-198309
BLUE,BLUE,TRIM8#
sub58570-14180¥52,000
main58570-14180-06i198108-198309
DARK BROWN,BROWN,TRIM4#
sub58570-14180¥52,000
main58570-14190-01i198108-198309
BLACK,BLACK,TRIM2#
main58570-14190-04i198108-198309
BLUE,BLUE,TRIM8#
main58570-14190-06i198108-198309
DARK BROWN,BROWN,TRIM4#
main58570-91C02-03i198108-198309
GRAY,GRAY,TRIM2#
main58570-91C02-05i198108-198309
BEIGE,BEIGE,TRIM4#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-07019-03i198108-198309
GRAY,GRAY,TRIM2#
main90467-07019-05i198108-198309
BEIGE,BEIGE,TRIM4#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58583-14020i198108-198309
RH
main58583-91C01-03i198305-198309
GRAY,GRAY,TRIM2#
main58583-91C01-05i198305-198309
BEIGE,BEIGE,TRIM4#
main58584-14010i198108-198309
LH
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58573-91C02-03i198108-198309
GRAY,GRAY,TRIM2#
main58573-91C02-05i198108-198309
BEIGE,BEIGE,TRIM4#
58579CCLIP, REAR FLOOR CARPET SET
main90467-06016-01i198108-198309
OD=25,BLACK,BLACK,TRIM2#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-04i198108-198309
OD=25,BLUE,BLUE,TRIM8#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-05i198208-198309
TYPE D,OD=25,BEIGE,BEIGE,TRIM4#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-06i198108-198309
OD=25,DARK BROWN,BROWN,TRIM4#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-23i198208-198309
TYPE D,OD=25,GRAY,GRAY,TRIM2#
sub90467-06016¥230
sub90467-07049¥90
main90467-06017-03i198108-198309
TYPE B,OD=15,GRAY,GRAY,TRIM2#
sub90467-06017¥110
main90467-06017-05i198108-198309
TYPE B,OD=15,BEIGE,BEIGE,TRIM4#
sub90467-06017¥110
main90467-07005-13i198108-198208
TYPE A,OD=25,GRAY,GRAY,TRIM2#
sub90467-07005¥300
main90467-07005-15i198108-198208
TYPE A,OD=25,BEIGE,BEIGE,TRIM4#
sub90467-07005¥300
main90467-15003i¥260198108-198309
TYPE C
9033325001
main90333-25001¥140
9353024516
main93530-24516¥70

9 parts on this diagram · 1 diagram in section
