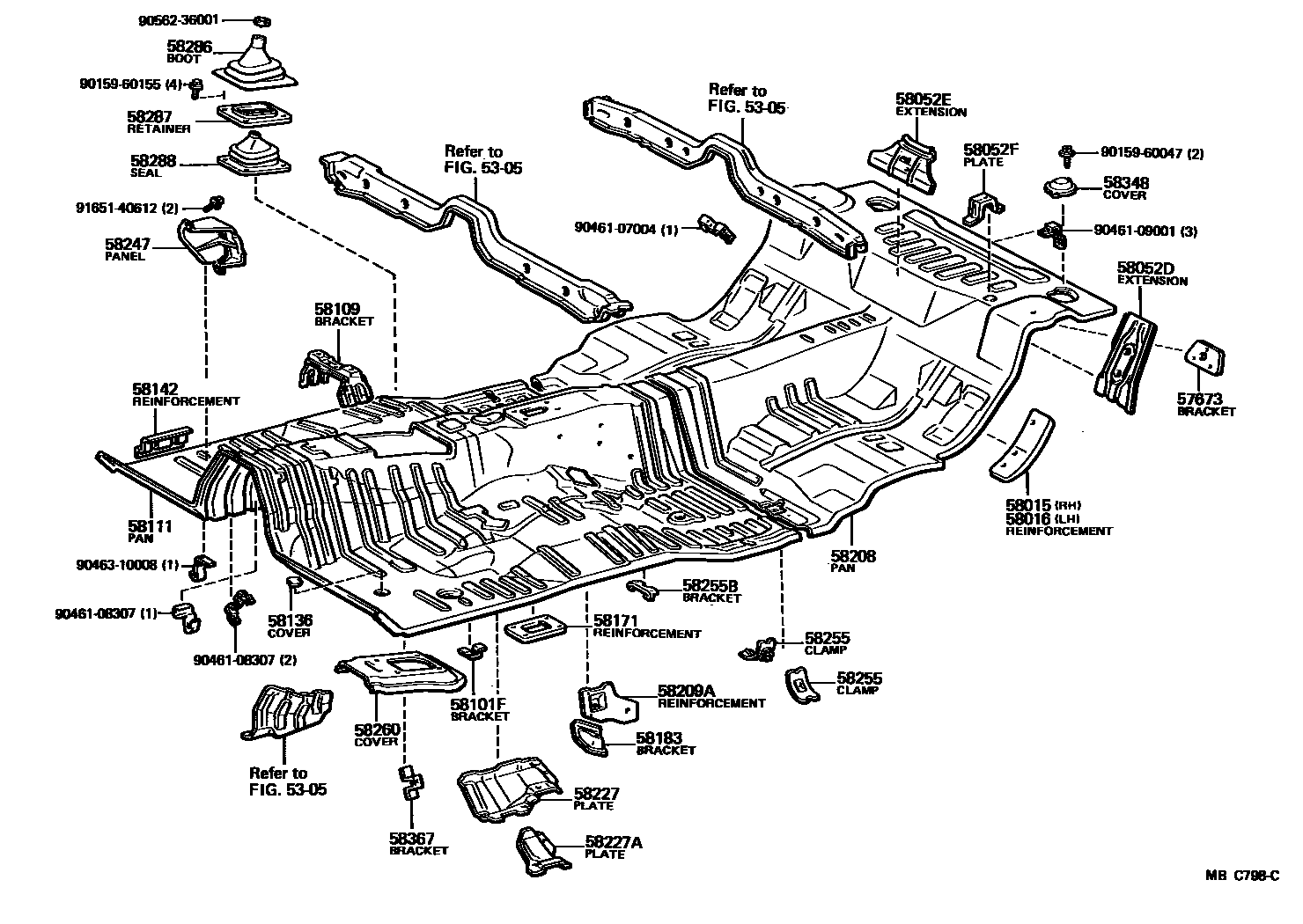

FLOOR PAN & LOWER BACK PANEL
5305
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY
RH
LH
58052EEXTENSION, CENTER FLOOR TO BRACE
58052FPLATE, LUGGAGE HOLD BELT ANCHOR
58101FBRACKET, MOUNTING, FLOOR, NO.1
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
RH
RH
LH
58227PLATE, AIR GUIDE, OUTSIDE
RH
LH
58227APLATE, AIR GUIDE
RH
LH
58247PANEL, FOOTREST, INSIDE
58255CLAMP, PARKING BRAKE CABLE, NO.1
RH
LH
58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58260COVER ASSY, TRANSMISSION, FRONT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58348COVER, REAR ABSORBER SERVICE HOLE
RH
LH
58367BRACKET, FUEL TUBE CLAMP
9015960047
9015960155
9046107004
9046108307
9046109001
9046310008
9056236001
9165140612
35 parts on this diagram · 3 diagrams in section
