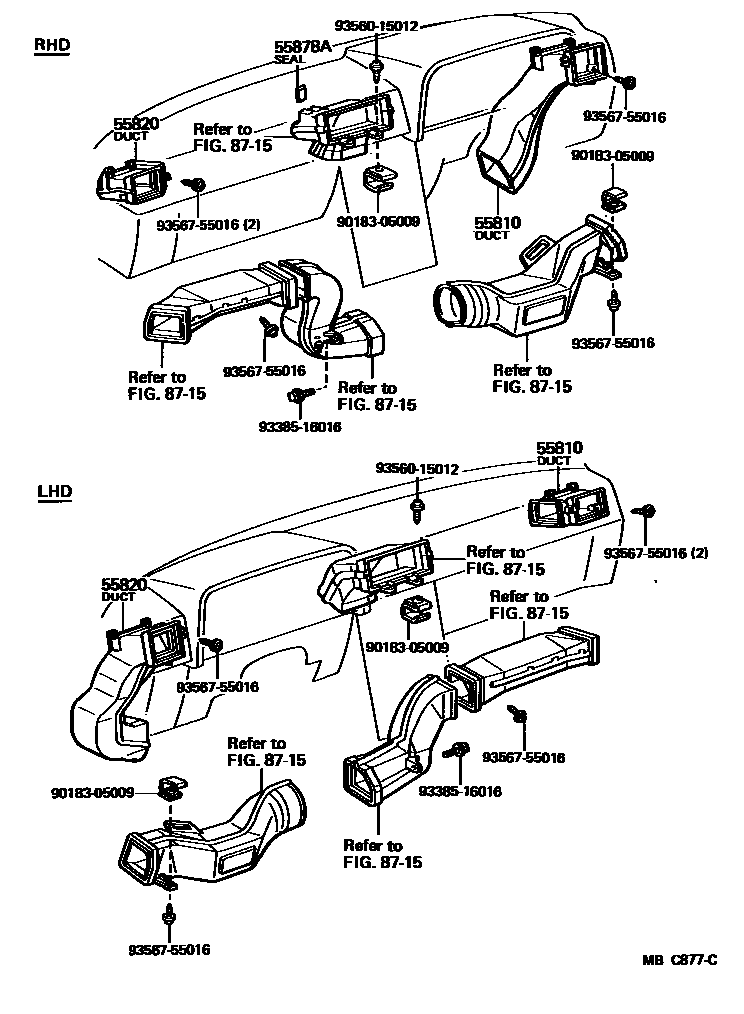

COWL VENTILATOR

55810DUCT ASSY, SIDE VENTILATOR, RH

main55084-14110iCA60,TA6#..RHD198108-198309

main55089-14020iCA60,TA6#..LHD198108-198309

55820DUCT ASSY, SIDE VENTILATOR, LH

main55084-14120iCA60,TA6#..LHD198108-198309

main55089-14010iCA60,TA6#..RHD198108-198309

55878ASEAL, AIR DUCT

main55878-14020iCA60,TA6#..RHD198108-198309

8715

9018305009

main90183-05009

9338516016

main93385-16016

9356015012

main93560-15012

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
