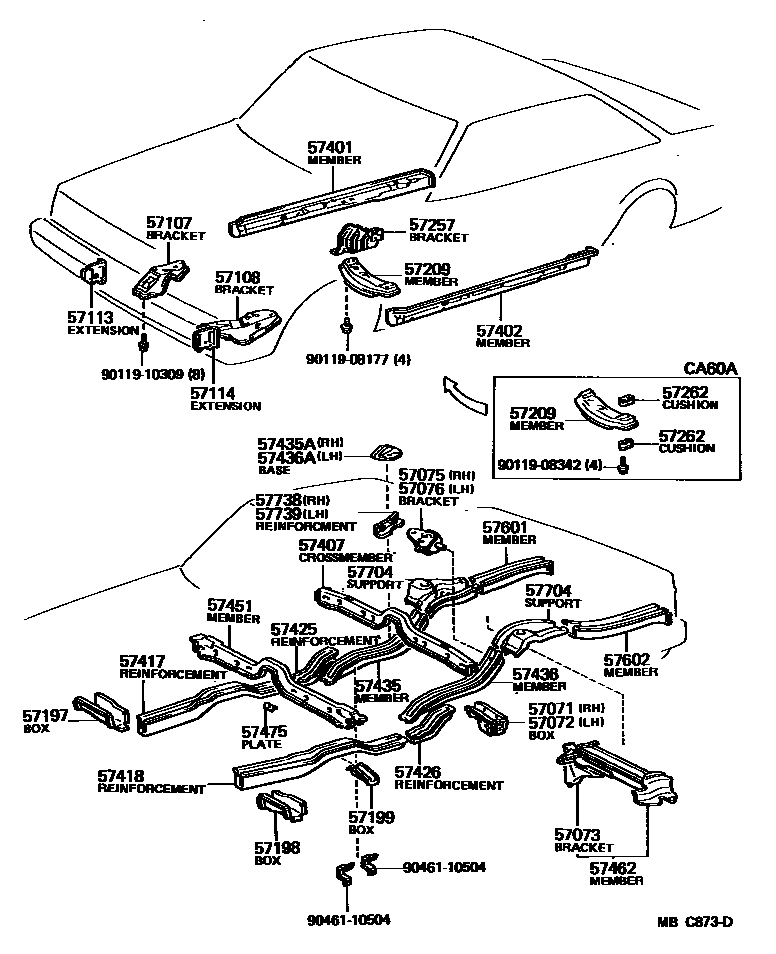

FLOOR SIDE MEMBER
57071BOX SUB-ASSY, TORQUE, REAR RH
57072BOX SUB-ASSY, TORQUE, REAR LH
57073BRACKET SUB-ASSY, LATERAL ROD
57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57199BOX, TORQUE, FRONT, NO.2
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57257BRACKET, ENGINE REAR SUPPORT MEMBER
RH
LH
57262CUSHION, ENGINE REAR SUPPORT MEMBER
UPR
LWR
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
sub57401-14190
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
sub57402-14190
57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57435MEMBER, CENTER FLOOR SIDE, RH
57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
57436MEMBER, CENTER FLOOR SIDE, LH
57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
57451MEMBER, FRONT FLOOR CROSS
57462MEMBER, CENTER FLOOR CROSS, NO.2
57475PLATE, FRONT FLOOR CROSSMEMBER
57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
RH
LH
57738REINFORCEMENT, REAR STABILIZER BRACKET, RH
57739REINFORCEMENT, REAR STABILIZER BRACKET, LH
9011908177
main90119-08177
9011908342
main90119-08342
9011910309
main90119-10309
9046110504
main90461-10504
38 parts on this diagram · 1 diagram in section
