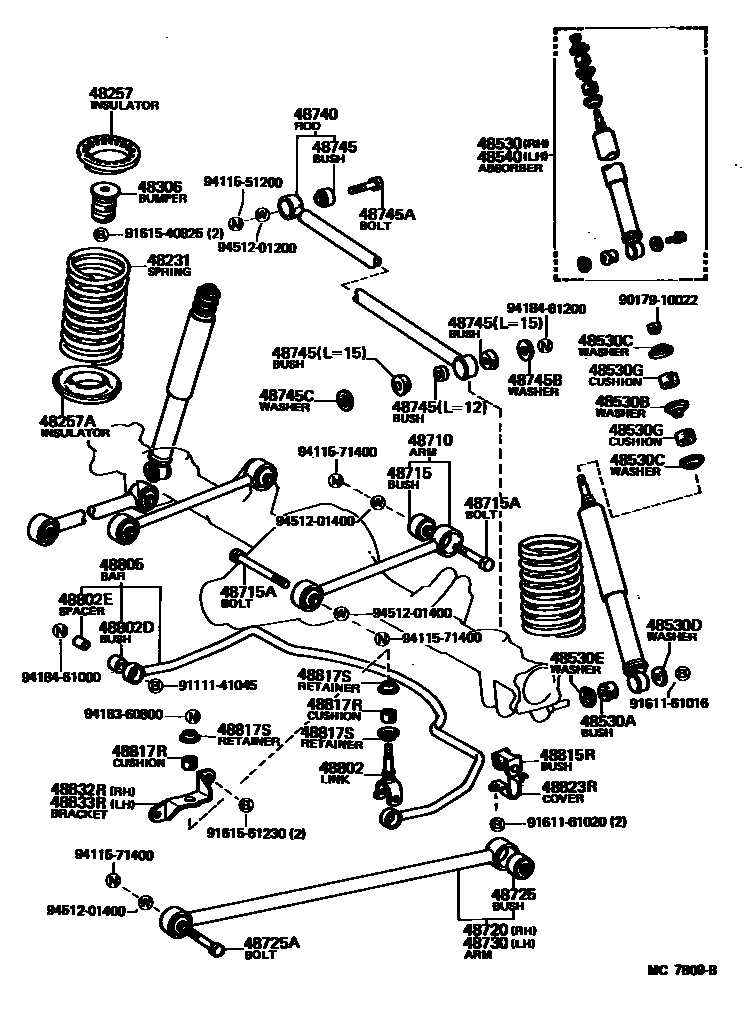

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
LWR
UPR
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
LWR,OD=30,ID=10
UPR,OD=30,ID=10&14
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
L=77
L=141
48720ARM ASSY, LOWER CONTROL, RH
48725BUSH, LOWER CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
L=77
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
L=15,HOUSING SIDE
L=12,HOUSING SIDE
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.2
T=1.0
48823RCOVER, STABILIZER LINK(FOR REAR)
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9017910022
main90179-10022
9111141045
main91111-41045
9161161016
main91611-61016
9161161020
main91611-61020
9161540825
main91615-40825
9161561230
main91615-61230
9411551200
main94115-51200
9411571400
main94115-71400
9418360800
main94183-60800
9418461000
main94184-61000
9418461200
main94184-61200
9451201200
main94512-01200
9451201400
main94512-01400
47 parts on this diagram · 1 diagram in section
