STEERING WHEEL

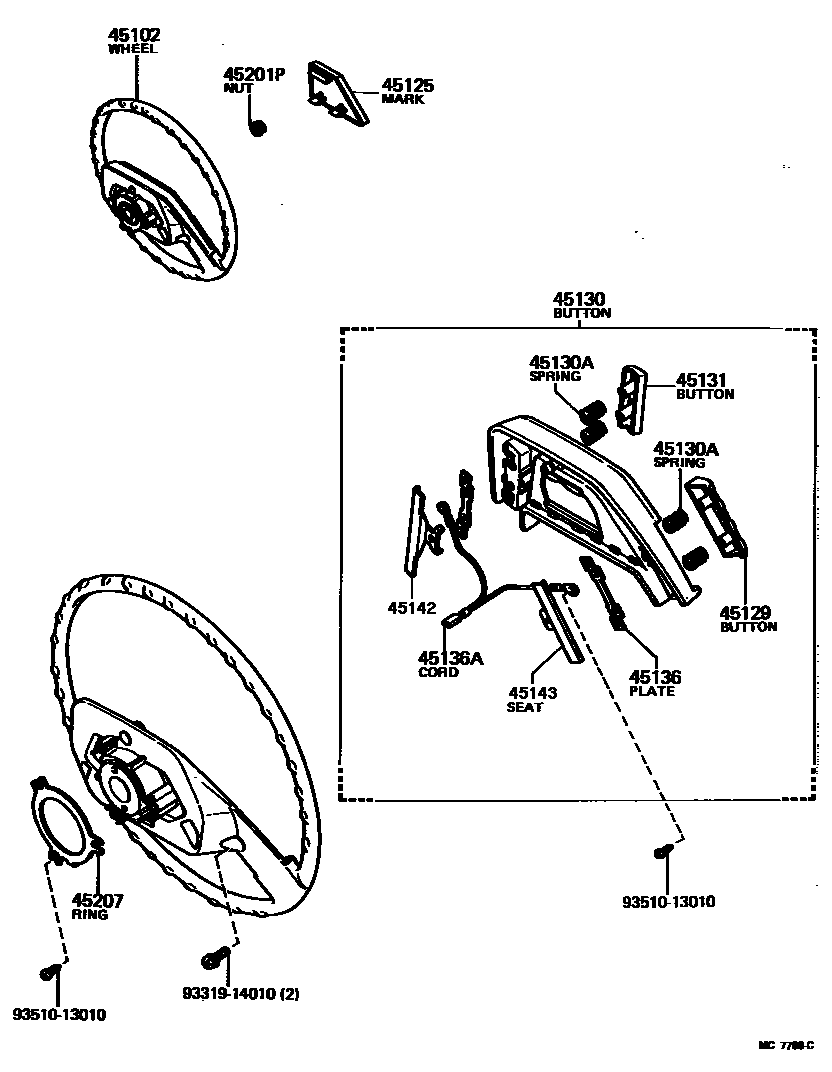

Parts diagram
45102WHEEL SUB-ASSY, STEERING
main45100-14270-01i198108-198309
BLACK,BLACK,TRIM2#
sub45100-14270
main45100-14270-04i198208-198309
BLUE,BLUE,TRIM8#
sub45100-14270
main45100-14270-06i198208-198309
DARK BROWN,BROWN,TRIM4#
sub45100-14270
main45100-14280-01i198108-198309
URETHANE,BLACK,BLACK,TRIM2#
sub45100-14310
main45100-14280-04i198208-198309
URETHANE,BLUE,BLUE,TRIM8#
sub45100-14310
main45100-14280-06i198208-198309
URETHANE,DARK BROWN,BROWN,TRIM4#
sub45100-14310
45125MARK, STEERING WHEEL PAD
main45125-14240i198108-198309
main45125-14320i198108-198309
45129BUTTON, HORN, NO.2
main45129-14030-01i198108-198309
BLACK,BLACK,TRIM2#
sub45129-14030
main45129-14030-04i198208-198309
BLUE,BLUE,TRIM8#
sub45129-14030
main45129-14030-06i198208-198309
DARK BROWN,BROWN,TRIM4#
sub45129-14030
45130BUTTON ASSY, HORN
main45130-14110-01i198108-198309
BLACK,BLACK,TRIM2#
sub45130-14110
main45130-14110-04i198208-198309
BLUE,BLUE,TRIM4#
sub45130-14110
main45130-14110-06i198208-198309
DARK BROWN,BROWN,TRIM8#
sub45130-14110
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
main90501-09023i198108-198309
45131BUTTON, HORN, NO.1
main45131-14090-01i198108-198309
BLACK,BLACK,TRIM2#
sub45131-14090
main45131-14090-04i198208-198309
BLUE,BLUE,TRIM4#
sub45131-14090
main45131-14090-06i198208-198309
DARK BROWN,BROWN,TRIM8#
sub45131-14090
45136PLATE, HORN BUTTON CONTACT
main45136-14070i198108-198309
45136ACORD(FOR HORN CONTACT RING)
main90945-02050i198108-198309
45142SEAT, HORN BUTTON CONTACT, NO.1
main45109-14010i198108-198309
URETHANE
main45142-14040i198108-198309
45143SEAT, HORN BUTTON CONTACT, NO.2
45201PNUT, STEERING WHEEL SET
main90179-12086i198108-198309
45207RING, HORN CONTACT
main45176-14030i198108-198109
main45176-14050i198109-198309
9331914010
main93319-14010
9351013010
main93510-13010

14 parts on this diagram · 2 diagrams in section
