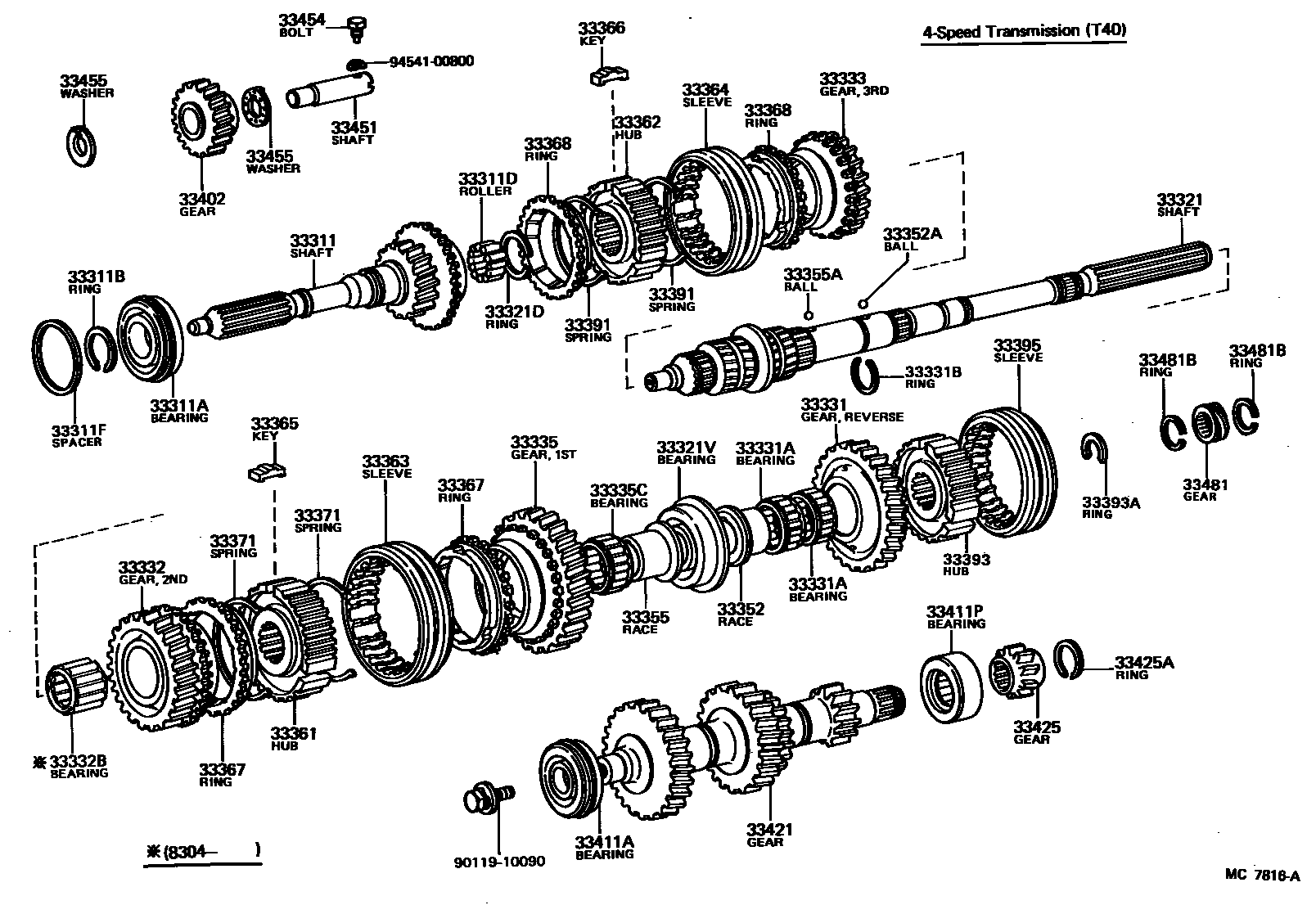

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
T=2.40-2.45,T=2.40-2.45
T=2.50-2.55
T=2.45-2.50,T=2.55-2.60
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
33311FSPACER (FOR INPUT SHAFT)
T=1.825-1.875
T=1.935-1.985
T=2.045-2.095
T=2.155-2.205
T=2.265-2.315
T=2.375-2.425
33321SHAFT, OUTPUT
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.95-2.00,T=1.95-2.00
T=2.00-2.05,T=2.00-2.05
T=2.05-2.10,T=2.05-2.10
T=2.10-2.15,T=2.10-2.15
T=2.15-2.20,T=2.15-2.20
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.00-2.05
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33331BRING, SET (FOR REVERSE GEAR)
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
T=3.05-3.10
T=3.10-3.15
T=3.15-3.20
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
T=2.70-2.75,T=2.70-2.75
T=2.75-2.80,T=2.75-2.80
T=2.80-2.85,T=2.80-2.85
T=2.85-2.90,T=2.85-2.90
T=2.90-2.95,T=2.90-2.95
T=2.95-3.00,T=2.95-3.00
T=3.00-3.05,T=3.00-3.05
T=3.05-3.10,T=3.05-3.10
T=3.10-3.15,T=3.10-3.15
T=3.15-3.20,T=3.15-3.20
T=3.20-3.25,T=3.20-3.25
T=3.25-3.30,T=3.25-3.30
T=3.30-3.35,T=3.30-3.35
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-26010
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411PBEARING, COUNTERSHAFT CENTER
33421GEAR, COUNTER
33425GEAR, COUNTERSHAFT REVERSE
33425ARING, SHAFT SNAP (FOR COUNTER GEAR)
T=1.90-1.95
T=1.80-1.85
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33455WASHER, REVERSE IDLER GEAR THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,N=6,SWITZERLAND SPEC
N=6,N=6
N=6,N=6,SWEDEN SPEC
N=6,MARK 6X18-20,N=6
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9011910090
main90119-10090
9454100800
main94541-00800
46 parts on this diagram · 3 diagrams in section
