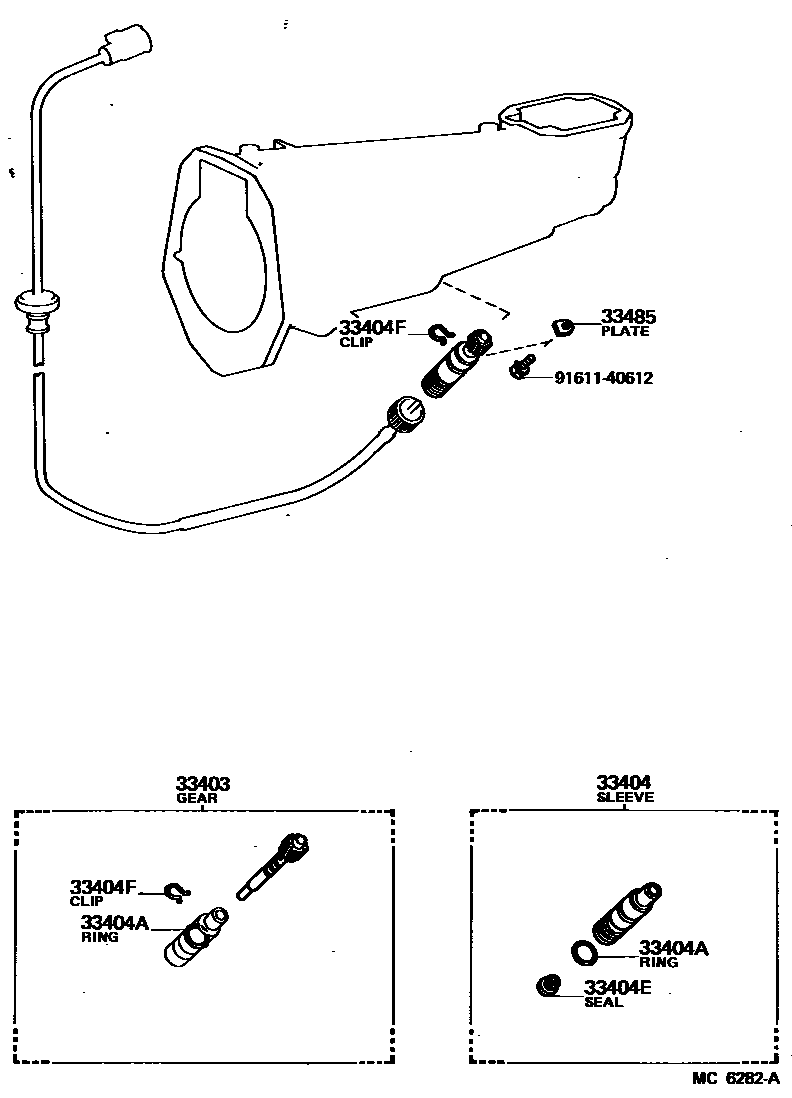

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19155iTA60..4F198108-198309

N=20,MARK 20:6,N=20

main33403-19155iTA60..4F198108-198309

N=20,MARK 20:6,N=20,SWITZERLAND SPEC

main33403-19165iTA60..5F198108-198309

N=21

main33403-19185iTA62..5F..(DLX,GL)..(SDN,SDZ)198108-198309

N=19,MARK 19:6,N=19,SWEDEN SPEC

main33482-39045iCA60198204-198309

N=20,MARK 20:6,N=20

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iTA6#..MTM198108-198309

main33404-35010iCA60198204-198309

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCA60198204-198309

main96710-02018iTA6#..MTM198108-198210

sub96711-19018

main96711-24018iTA6#..MTM198210-198309

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCA60,TA6#..MTM198108-198309

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCA60,TA6#..MTM198108-198309

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iTA6#..MTM198108-198309

main33485-30020iCA60198204-198309

9161140612

main91611-40612

7 parts on this diagram · 2 diagrams in section
