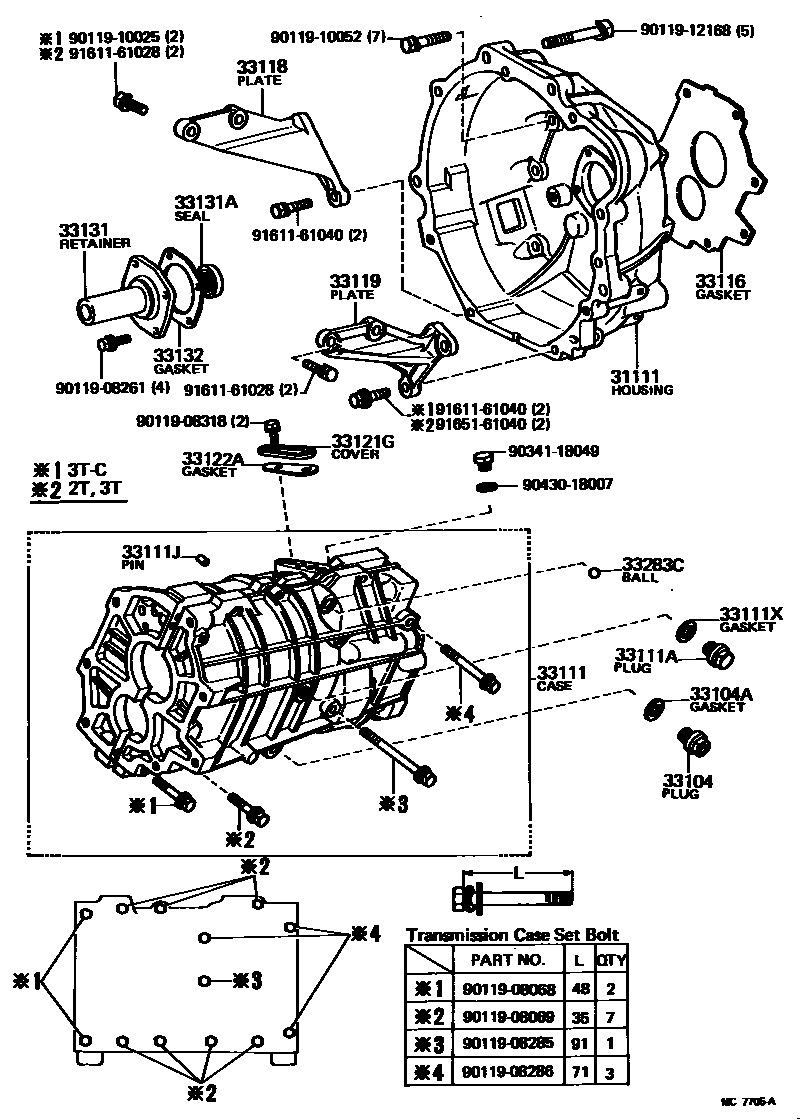

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
sub90430-18008
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
OD=12,L=39
OD=6,L=11
33111XGASKET, TRANSMISSION CASE PLUG
sub90430-18008
33116GASKET, MANUAL TRANSMISSION CASE
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33121GCOVER, MANUAL TRANSMISSION CASE
33122AGASKET, MANUAL TRANSMISSION CASE COVER
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33283CBALL, REVERSE RESTRICT
9011908068
main90119-08068
9011908069
main90119-08069
9011908261
main90119-08261
9011908285
main90119-08285
9011908286
main90119-08286
9011908318
main90119-08318
9011910025
main90119-10025
9011910052
main90119-10052
9011912168
main90119-12168
9034118049
main90341-18049
9043018007
main90430-18007
9161161028
main91611-61028
9161161040
main91611-61040
9165161040
main91651-61040
30 parts on this diagram · 2 diagrams in section
