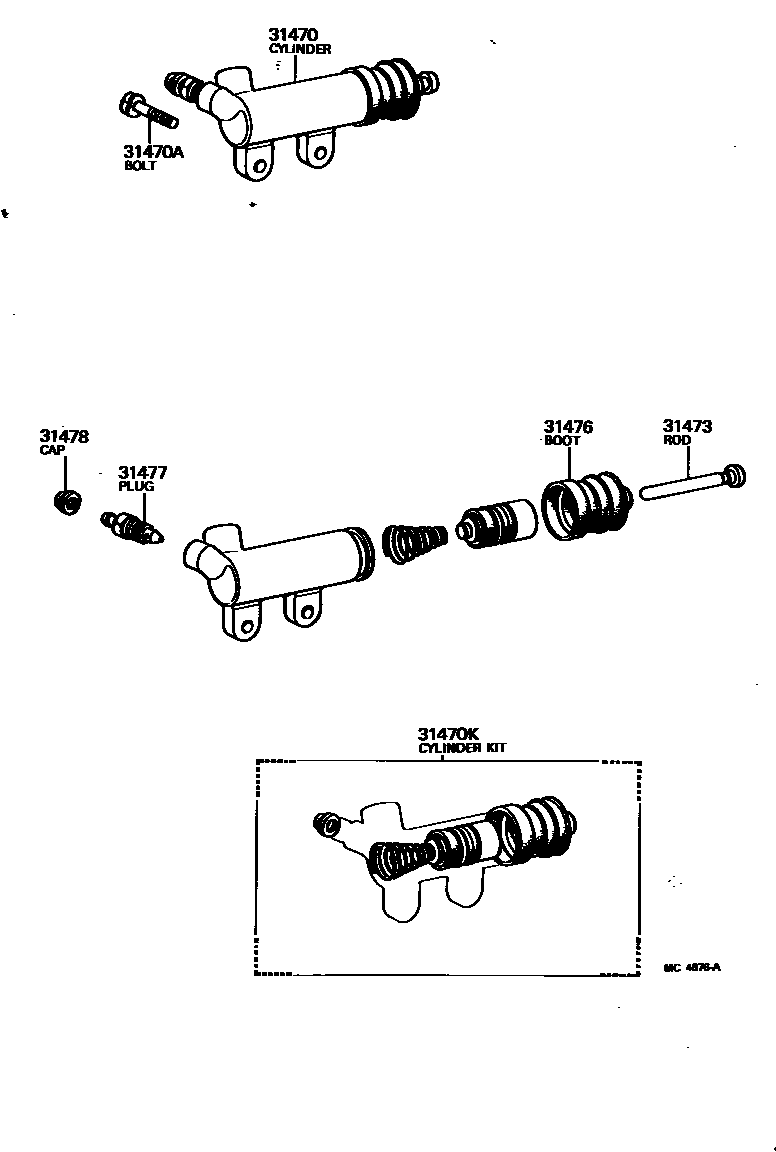

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14040iCA60¥7,900198204-198309

main31470-20151iTA6#..MTM¥7,400198108-198309

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iCA60,TA6#..MTM¥160198108-198309

*8-1.25PX25-25

sub91611-B0825¥160

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iCA60,TA6#..MTM¥1,040198108-198309

sub04313-12030¥800

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCA60,TA6#..MTM¥470198108-198309

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCA60,TA6#..MTM¥230198108-198309

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCA60,TA6#..MTM¥180198108-198309

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCA60,TA6#..MTM¥160198108-198309

7 parts on this diagram · 2 diagrams in section
