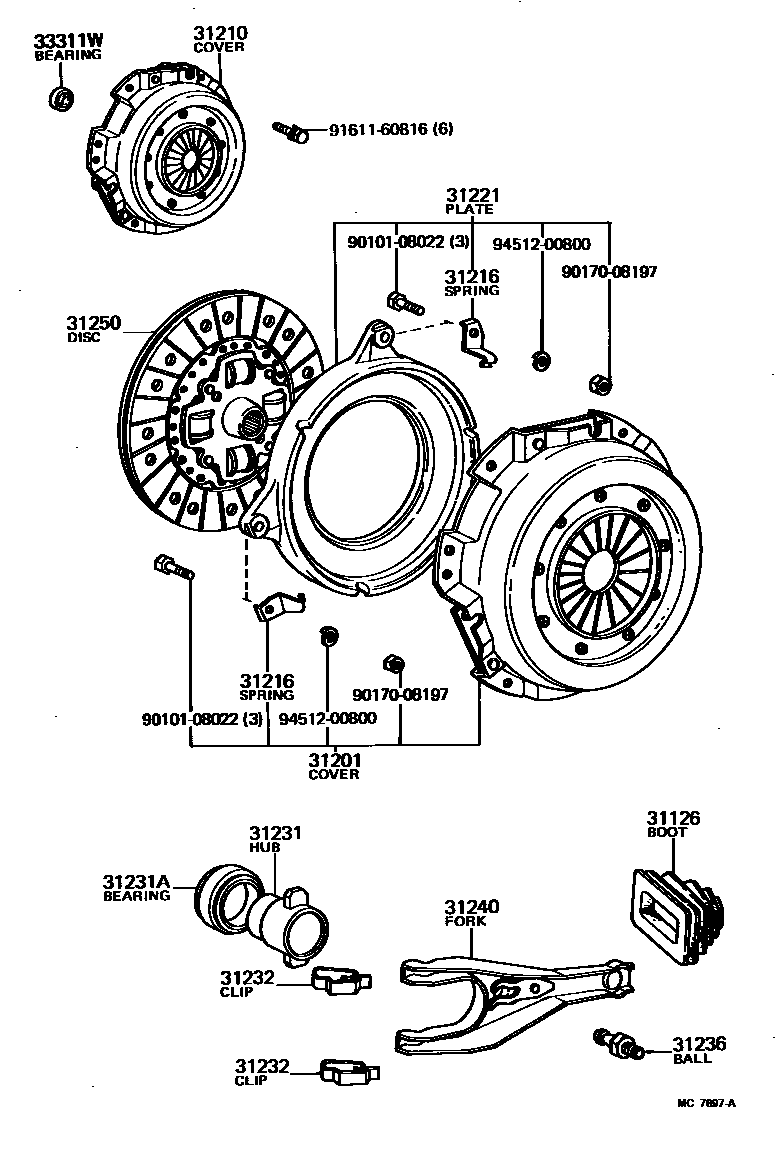

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iCA60,TA6#..MTM198108-198309

31201COVER SUB-ASSY, CLUTCH

main31201-19065iTA60..MTM198108-198309

main31201-19075iTA62..5F198108-198309

main31201-39047iCA60198204-198309

31210COVER ASSY, CLUTCH

main31210-14070iTA60..MTM198108-198309

sub31210-14100

main31210-23012iTA62..5F198108-198309

sub31210-12210

main31210-35042iCA60198204-198309

sub31210-22120

31216SPRING, CLUTCH RETRACTING

main31216-20020iTA6#..MTM198108-198309

main31216-30010iCA60198204-198309

31221PLATE, CLUTCH PRESSURE

main31221-19015iTA60..MTM198108-198309

main31221-19025iTA62..5F198108-198309

main31221-39045iCA60198204-198309

sub31221-35020

31231HUB, CLUTCH RELEASE BEARING

main31231-20081iTA6#..MTM198108-198309

main31231-36070iCA60198204-198309

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iCA60,TA6#..MTM198108-198309

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iCA60,TA6#..MTM198108-198309

31236BALL, RELEASE FORK

main31236-30060iCA60,TA6#..MTM198108-198309

31240FORK ASSY, CLUTCH RELEASE

main31204-20080iTA6#..MTM198108-198309

main31204-20090iCA60198204-198309

31250DISC ASSY, CLUTCH

main31250-12081iTA62..5F198108-198309

sub31250-12184

main31250-14090iTA60..MTM198108-198208

sub31250-14091

main31250-14091iTA60..MTM198208-198309

sub31250-14092

main31250-20111iCA60198204-198309

sub31250-20112

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iTA6#..MTM198108-198309

main90363-12004iCA60198204-198309

9010108022

main90101-08022

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
