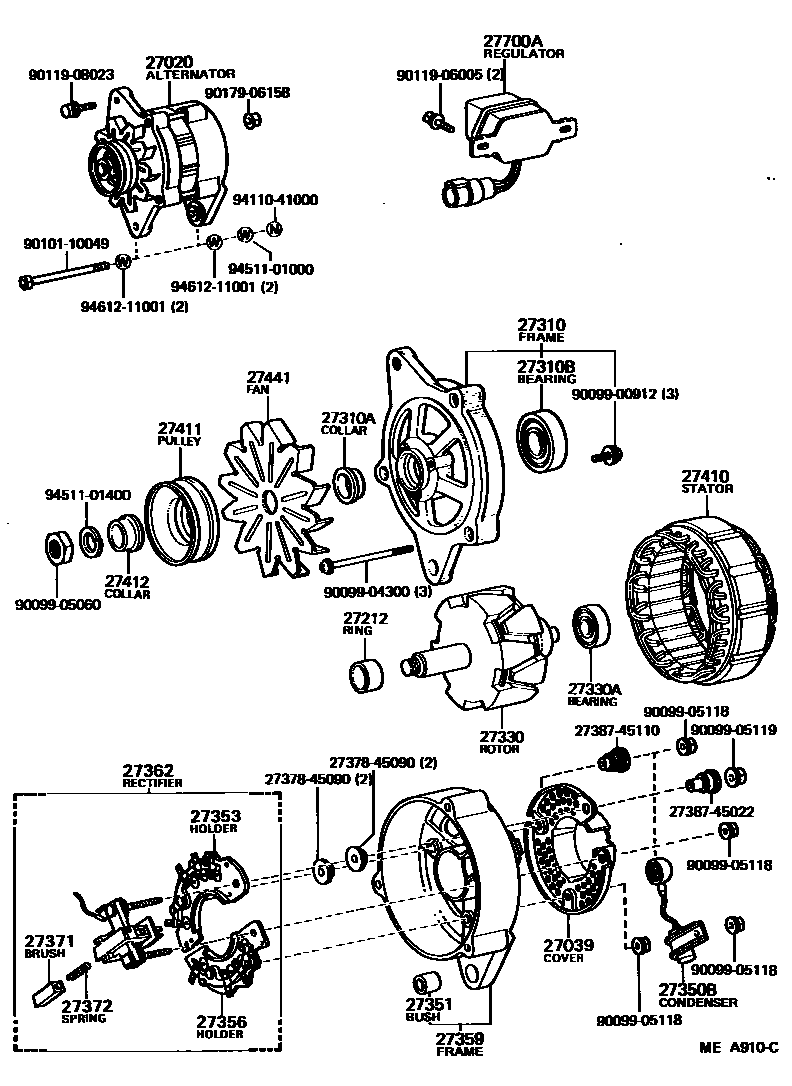

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27020-34021i2T,3T#..TA6#..LHD..EUR198108-198309

12V 55A,12V 55A

main27020-34051i2T,3T..TA6#..RHD198108-198309

12V 50A,12V 50A

sub27020-34021

main27020-64010i1C..CA60198204-198309

12V 55A,12V 55A

27039COVER, ALTERNATOR REAR END

main27039-15010i2T..TA60..LHD..MTM;2T..TA60..LHD..3FC..GEN198108-198309

12V 50A

sub27039-61034

main27039-45110i2T,3T#..TA6#..LHD..EUR198108-198309

12V 55A

sub27039-34022

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i1C..CA60198204-198309

12V 55A

main27412-45070i2T,3T#..TA6#198108-198309

12V 50A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i2T,3T#..TA6#198108-198309

12V 50A,55A

main27310-64030i1C..CA60198204-198309

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2T,3T#..TA6#198108-198309

12V 50A,55A

main27412-57060i1C..CA60198204-198309

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i2T,3T#..TA6#198108-198309

12V 50A,55A

main90099-10137i1C..CA60198204-198309

12V 55A

27330ROTOR ASSY, ALTERNATOR

main27330-45070i2T..TA60..LHD..MTM;2T..TA60..LHD..3FC..GEN198208-198309

12V 50A

sub27330-16030

main27330-45070i2T,3T#..TA6#198108-198208

12V 50A,55A

sub27330-16030

main27330-63010i2T,3TC..TA6#..LHD..EUR198208-198309

12V 55A

main27330-64010i1C..CA60198204-198309

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i2T,3T#..TA6#198108-198309

12V 50A,55A

27350FRAME ASSY, RECTIFIER END

main27350-64030i1C..CA60198204-198309

12V 55A

27350BCONDENSER, ALTERNATOR

main90099-52065i2T,3T#..TA6#198108-198309

12V 50A,55A

sub90099-52034

main90099-52066i1C..CA60198204-198309

12V 55A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2T,3T#..TA6#198108-198309

12V 50A,55A

main27351-64010i1C..CA60198204-198309

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i2T,3T#..TA6#..LHD..EUR198108-198208

12V 55A

main27353-34051i2T,3T..TA6#..RHD198108-198309

12V 50A

sub27353-34121

main27353-34121i2T,3TC..TA6#..LHD..EUR198208-198309

12V 55A

main27353-54010i1C..CA60198204-198307

12V 55A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i2T,3T#..TA6#..LHD..EUR198108-198309

12V 55A

main27356-34051i2T..TA60..LHD..MTM;2T..TA60..LHD..3FC..GEN198108-198309

12V 50A

sub27356-34021

main27356-54010i1C..CA60198204-198307

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i2T,3T#..TA6#198108-198309

12V 50A,55A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i2T,3T..TA6#..RHD198108-198309

12V 50A

sub27362-63011

main27362-34021i2T,3T#..TA6#..LHD..EUR198108-198208

12V 55A

sub27362-63011

main27362-34121i2T,3TC..TA6#..LHD..EUR198208-198309

12V 55A

sub27362-63011

27371BRUSH, ALTERNATOR

main27371-31011i2T,3T#..TA6#198108-198309

12V 50A,55A

main27371-56070i1C..CA60198204-198309

12V 55A

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011i2T,3T#..TA6#198108-198309

12V 50A,55A

main27372-56070i1C..CA60198204-198309

12V 55A

27410STATOR ASSY, ALTERNATOR

main27410-41080i2T,3T..TA6#..RHD198108-198309

12V 50A

main27410-43040i2T,3TC..TA6#..LHD..EUR198208-198309

12V 55A

main27410-45120i2T,3T#..TA6#..LHD..EUR198108-198208

12V 55A

sub27410-43040

main27410-64010i1C..CA60198204-198307

12V 55A

27411PULLEY, ALTERNATOR

main27411-31042i2T,3T#..TA6#198108-198309

12V 50A,55A

main27411-64010i1C..CA60198204-198309

12V 55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i2T,3T#..TA6#198108-198309

12V 50A,55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i2T,3T#..TA6#198108-198309

12V 50A,55A

main27441-56090i1C..CA60198204-198309

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-63010i1C,2T,3T#..CA60,TA6#198108-198309

12V 50A,55A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011906005

main90119-06005

9011908023

main90119-08023

9017906158

main90179-06158

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211001

main94612-11001

38 parts on this diagram · 2 diagrams in section
