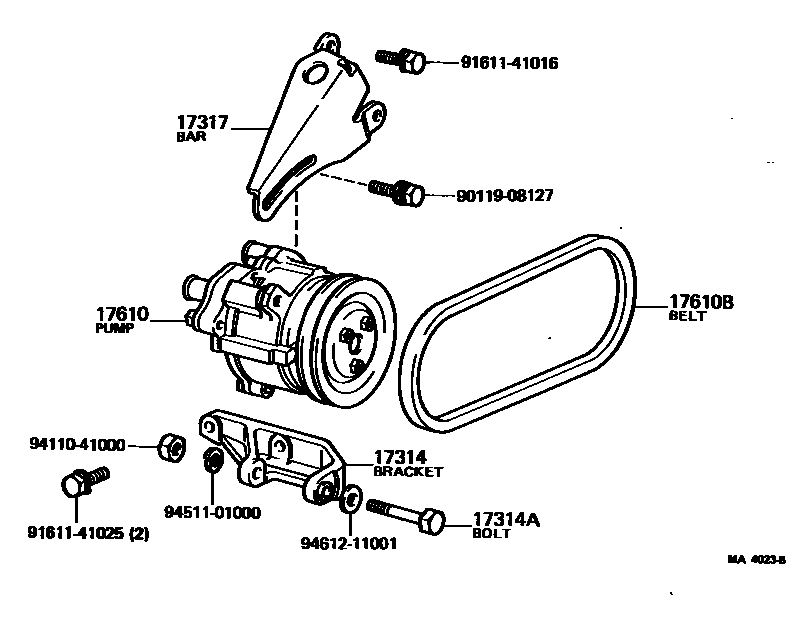

AIR PUMP

17314BRACKET, AIR PUMP

main17314-26022i3TC..TA62198108-198309

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10402i3TC..TA62198108-198309

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-26021i3TC..TA62198108-198309

17610PUMP ASSY, AIR

main17610-26030i3TC..TA62198108-198309

17610BBELT, V(FOR AIR PUMP)

main99332-10815i3TC..TA62198108-198309

9011908127

main90119-08127

9161141016

main91611-41016

9161141025

main91611-41025

9411041000

main94110-41000

9451101000

main94511-01000

9461211001

main94612-11001

11 parts on this diagram · 1 diagram in section
