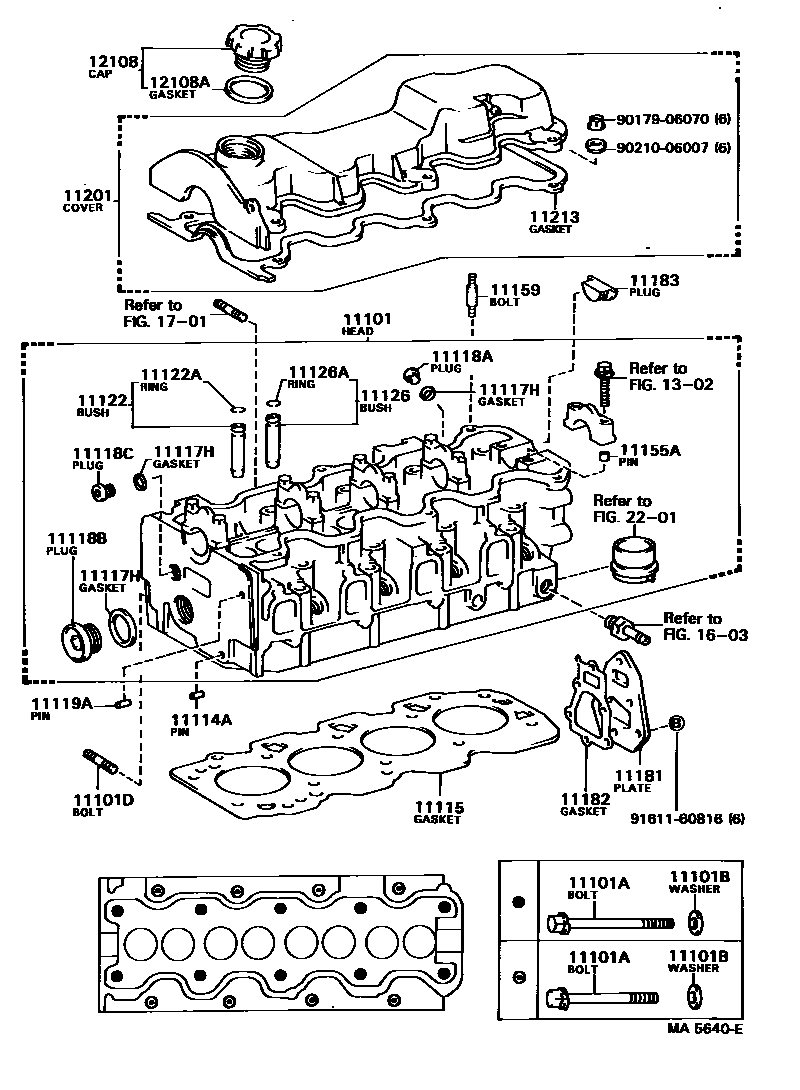

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-26033
11101ABOLT(FOR CYLINDER HEAD SET)
*11-1.25PX123-30
*11-1.25PX145-30
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11114APIN, STRAIGHT
L=11,OD=6
11117HGASKET(FOR WATER HOLE)
PNC 11118A
PNC 11118A
PNC 11118C
PNC 11118B
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
11118CPLUG, STRAIGHT, NO.3
sub90341-12013
11119APIN, STRAIGHT, NO.1
L=11,OD=6
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
STD
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,STD
O/S 0.05
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=30,S=8&8
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
12108AGASKET(FOR OIL FILLER CAP)
1302
1603
1701
2201
9017906070
main90179-06070
9021006007
main90210-06007
9161160816
main91611-60816
31 parts on this diagram · 2 diagrams in section
