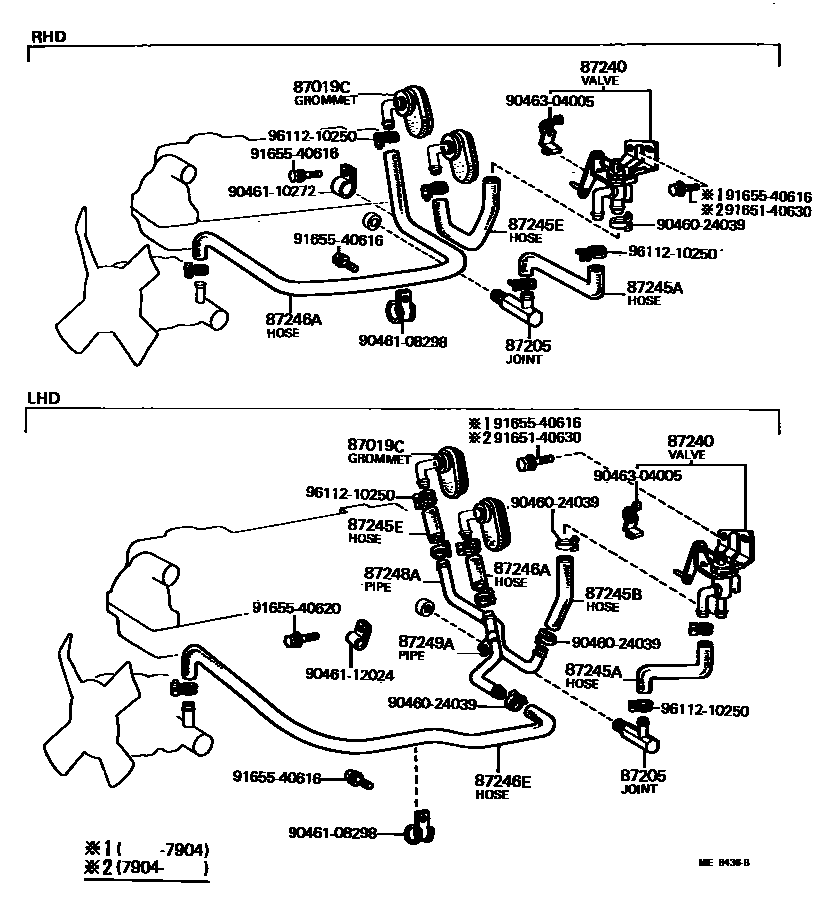

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015iTA4#197708-198107

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20100iTA4#197708-198107

87240VALVE ASSY, HEATER WATER

main87240-14070iTA40197708-197904

main87240-20240iTA4#197904-198107

87245AHOSE, HEATER WATER, INLET A

main87209-20320iTA4#..LHD197808-198107

main87245-14390iTA4#..RHD197708-198107

87245BHOSE, HEATER WATER, INLET B

main99552-30240iTA40..LHD197708-197908

L=240

sub99552-30300

main99552-30300iTA4#..LHD197908-198107

*H,L=230

sub99556-30300

87245EHOSE, HEATER WATER, INLET E

main87245-14120iTA40..RHD197708-197809

sub87245-20400

main87245-20400iTA4#..RHD197809-198107

main99552-30055iTA4#..LHD197708-198107

L=55

sub99552-30075

87246AHOSE, HEATER WATER, OUTLET A

main87245-14430iTA40..RHD197708-197809

sub87245-20420

main87245-20420iTA4#..RHD197809-198107

sub99552-32000

main99552-30055iTA4#..LHD197708-198107

L=55

sub99552-30075

87246EHOSE, HEATER WATER, OUTLET E

main87245-14540iTA40..LHD197708-197801

sub87245-14541

main87245-14541iTA4#..LHD197801-198107

sub99552-31000

87248APIPE, HEATER WATER INLET, A

main87248-14060iTA40..LHD197708-197908

main87248-14061iTA4#..LHD197908-198107

87249APIPE, HEATER WATER OUTLET, A

main87248-14120iTA40..LHD197708-197801

sub87248-14121

sub87245-14541

main87248-14121iTA4#..LHD197801-198107

9046024039

main90460-24039

9046108298

main90461-08298

9046110272

main90461-10272

9046112024

main90461-12024

9046304005

main90463-04005

9165140630

main91651-40630

9165540616

main91655-40616

9165540620

main91655-40620

9611210250

main96112-10250

19 parts on this diagram · 1 diagram in section
