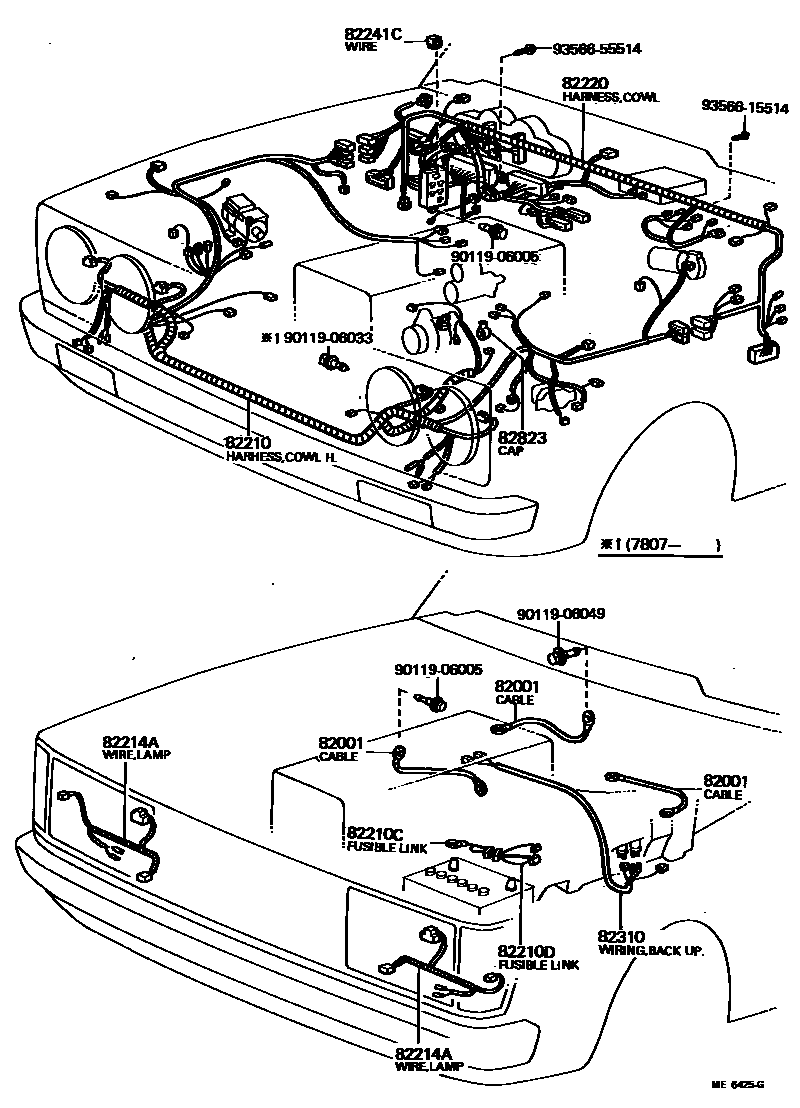

WIRING & CLAMP
82001CABLE, BOND, NO.1
W/RADIO,L=260
L=350
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82220HARNESS ASSY, WIRING COWL
W/HEADLAMP CLEANER
W/HEADLAMP CLEANER
82241CWIRE, RELAY
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82823CAP, TERMINAL, NO.1
9011906005
main90119-06005
9011906033
main90119-06033
9011906049
main90119-06049
9356615514
main93566-15514
9356655514
main93566-55514
14 parts on this diagram · 7 diagrams in section
