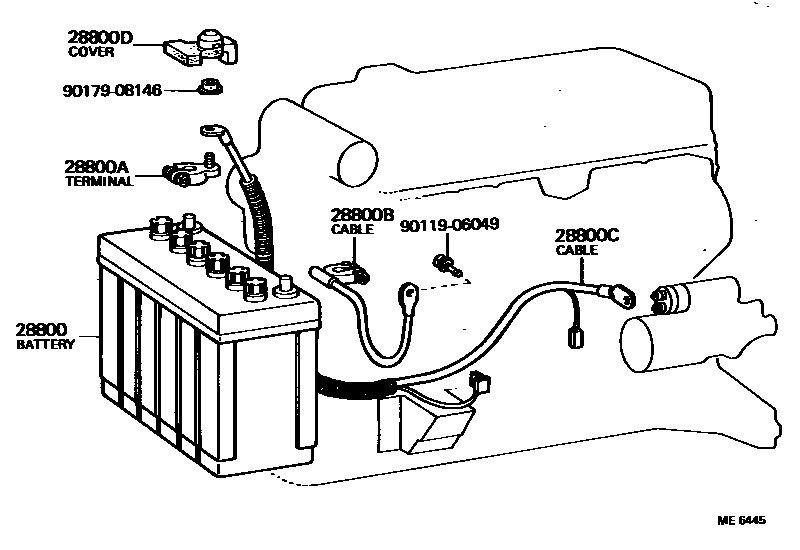

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i2T,2TB..TA40..GEN197708-198107

34B19L,NS40ZAL

sub28800-26050

main28800-30131i2T#,3T#..TA4#197708-198107

55D26R,N50ZL

sub28800-73010

main28800-31031i2T,2TB..TA40..GEN197708-198107

32C24L,N40L

sub28800-31021

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i2T,2TB..TA40..GEN197708-198107

NS40ZAL

sub90982-05028

main90982-05005i2T#,3T#..TA4#197708-198107

N40L & N50ZL

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02135i2T,2TB..TA40..GEN197708-198107

NS40ZAL

sub90982-02222

main90982-02136i2T#,3T#..TA4#197708-198107

NS40L & N50ZL

sub90982-02224

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-14070i2T,2TB,3T..TA4#197708-198107

main82021-14080i2TC..TA40197801-197908

main82021-14081i3TC..TA47197908-198107

main82021-14081i2T#..TA40198008-198107

STARTER=REDUCTION TYPE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-14020i2T#,3T#..TA4#197708-198103

main82821-22100i2T#,3T#..TA4#198103-198107

9011906049

main90119-06049

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
