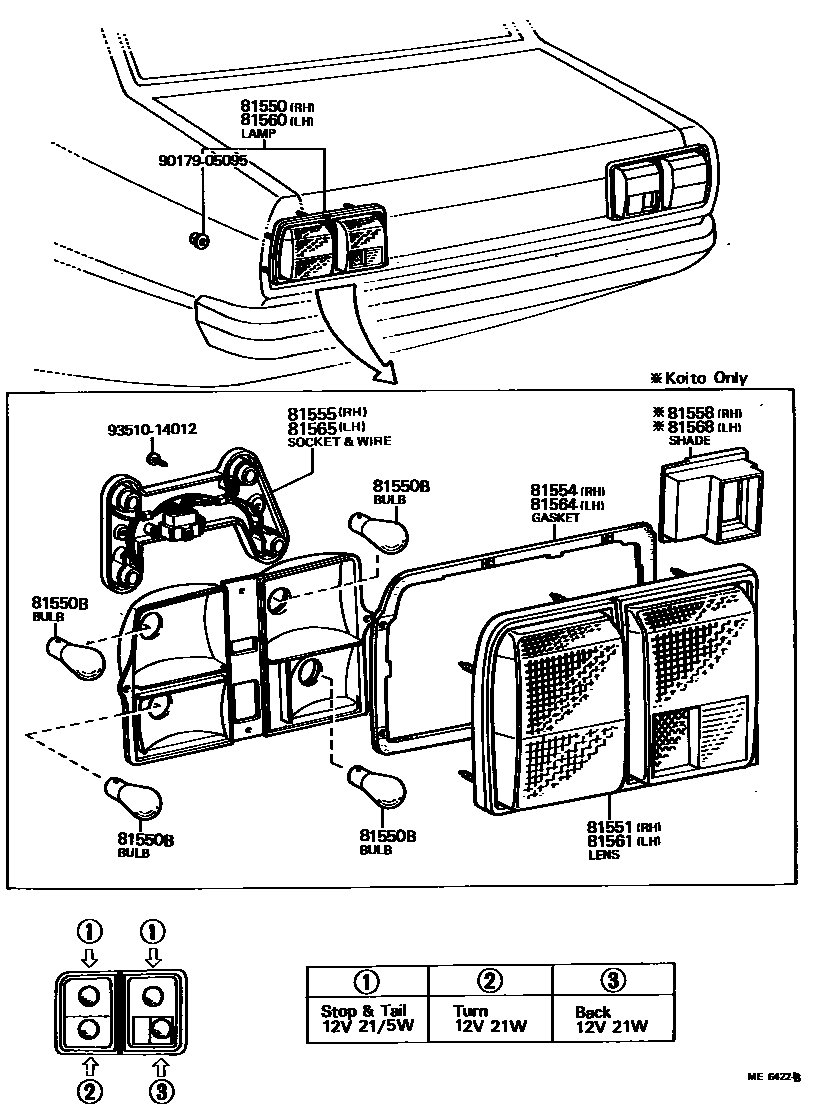

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-19885iTA40..SED197708-197908

IKI

main81550-19886iTA4#..SED197908-198107

IKI

main81550-19895iTA40..SED197708-197908

KOITO

main81550-19896iTA4#..SED197908-198107

KOITO

main81550-80001iTA4#..WG197708-198107

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iTA4#197708-198107

12V 21W,12V 21W

main99132-21210iTA4#..WG197708-198107

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-14240iTA40..SED197708-197908

IKI

main81551-14250iTA40..SED197708-197908

KOITO

main81551-14261iTA4#..SED197908-198107

IKI

main81551-14270iTA4#..SED197908-198107

KOITO

main81551-15060iTA4#..WG197708-198107

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-14241iTA4#..SED197908-198107

IKI

main81554-14240iTA40..SED197708-197908

IKI

main81554-14250iTA40..SED197708-197908

KOITO

main81554-14251iTA4#..SED197908-198107

KOITO

main81554-15040iTA4#..WG197708-198107

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14260iTA40..SED197708-197908

IKI

main81555-14261iTA4#..SED197908-198107

IKI

main81555-14270iTA40..SED197708-197908

KOITO

sub81555-14250

main81555-14271iTA4#..SED197908-198107

KOITO

sub81555-14251

main81555-23140iTA4#..WG197708-198107

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-14250iTA40..SED197708-197908

KOITO

81560LAMP ASSY, REAR COMBINATION, LH

main81560-19885iTA40..SED197708-197908

IKI

main81560-19886iTA4#..SED197908-198107

IKI

main81560-19895iTA40..SED197708-197908

KOITO

main81560-19896iTA4#..SED197908-198107

KOITO

main81560-80001iTA4#..WG197708-198107

81561LENS, REAR COMBINATION LAMP, LH

main81561-14240iTA40..SED197708-197908

IKI

main81561-14250iTA40..SED197708-197908

KOITO

main81561-14261iTA4#..SED197908-198107

IKI

main81561-14270iTA4#..SED197908-198107

KOITO

main81561-15060iTA4#..WG197708-198107

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-14250iTA40..SED197708-197908

KOITO

main81554-14251iTA4#..SED197908-198107

IKI

main81562-14241iTA4#..SED197908-198107

KOITO

main81564-14240iTA40..SED197708-197908

IKI

main81564-15040iTA4#..WG197708-198107

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-23140iTA4#..WG197708-198107

main81565-14260iTA40..SED197708-197908

IKI

main81565-14261iTA4#..SED197908-198107

IKI

main81565-14270iTA40..SED197708-197908

KOITO

sub81565-14250

main81565-14271iTA4#..SED197908-198107

KOITO

sub81565-14251

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81567-14250iTA40..SED197708-197908

KOITO

9017905095

main90179-05095

9351014012

main93510-14012

13 parts on this diagram · 3 diagrams in section
