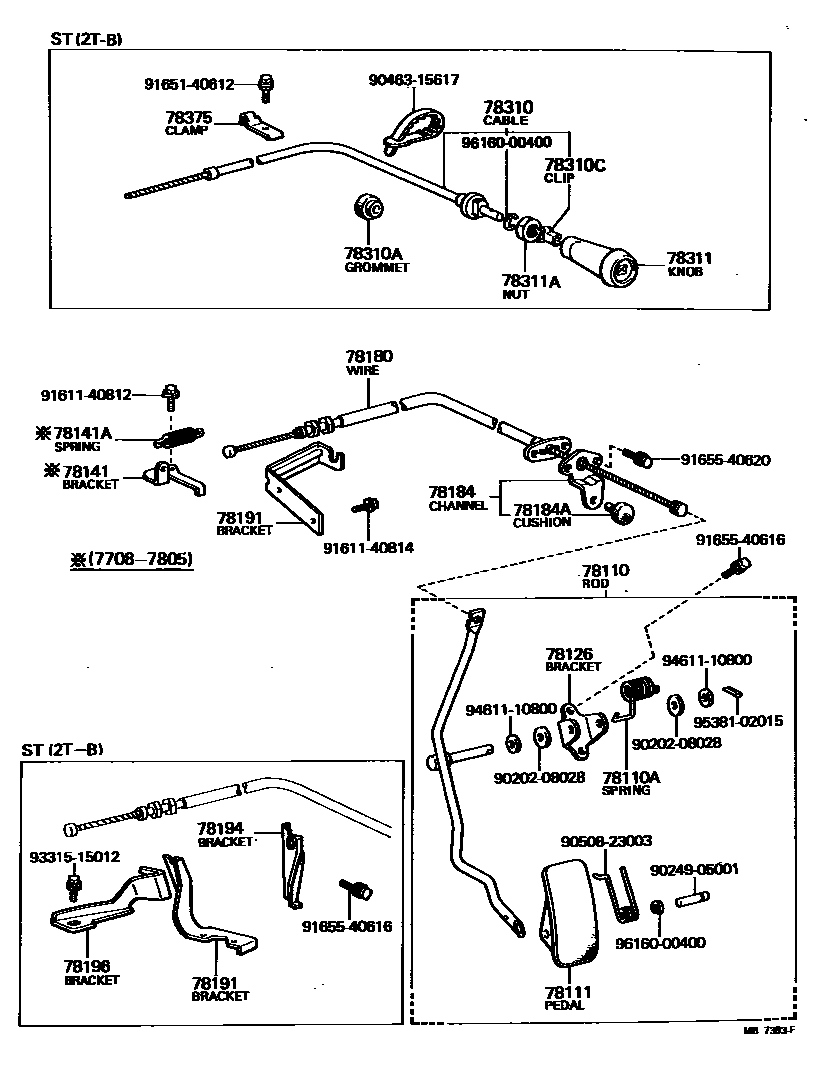

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14160iTA40..LHD..(DLX,GL,STD)197708-197806

main78120-14161iTA40..LHD..(DLX,GL,STD)197806-197903

sub78120-14162

main78120-14162iTA4#..LHD..(DLX,GL,STD)197903-198107

main78120-14170iTA40..LHD..ST197708-197806

main78120-14171iTA40..LHD..ST197806-197903

sub78120-14172

main78120-14172iTA40..LHD..ST197903-198107

main78120-14200iTA40..RHD197708-197908

sub78120-14201

main78120-14201iTA4#..RHD197908-198107

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23007iTA4#..LHD197708-198107

main90508-29001iTA4#..RHD197708-198107

78111PEDAL, ACCELERATOR

main78010-14011iTA40..LHD197806-197904

main78010-14012iTA4#..LHD197904-198107

main78010-14020iTA40..LHD197708-197806

main78111-12100iTA4#..RHD197708-198107

78126BRACKET, ACCELERATOR PEDAL ROD

main78124-14010iTA4#..RHD197908-198107

main78126-14060iTA40..RHD197708-197908

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78187-12020iTA40..RHD..MTM..(DLX,GL,STD)197708-197805

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-08002iTA4#..LHD..(DLX,GL,STD)197805-198107

main90507-10002iTA40..LHD..(DLX,GL,STD)197708-197805

main90507-12024iTA40..RHD..(DLX,GL,STD)197708-197805

78180WIRE ASSY, ACCELERATOR

main78180-14010iTA4#..RHD..(DLX,GL,STD)197708-198107

main78180-14020iTA40..RHD..ST197708-198107

main78180-14050iTA4#..LHD..(DLX,GL,STD)197708-198107

main78180-14060iTA40..LHD..ST197708-198107

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14040iTA40197708-197908

main78181-14041iTA4#197908-198107

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iTA4#197708-198107

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78024-12010iTA4#..LHD..(DLX,GL,STD)197805-198107

main78184-12050iTA4#..RHD..(DLX,GL,STD)197708-198107

main78184-12070iTA40..RHD..ST197708-198107

main78184-12091iTA40..LHD..(DLX,GL,STD)197708-197805

main78184-12110iTA40..LHD..ST197708-198107

78194BRACKET, ACCELERATOR WIRE SUPPORT, NO.2

main78186-14010iTA40..RHD..ST197708-198107

78196BRACKET, ACCELERATOR WIRE SUPPORT, NO.3

main78198-12010iTA40..RHD..ST197708-198107

78310CABLE ASSY, CHOKE

main78310-14141iTA40..RHD..ST197708-197908

main78310-14142iTA40..RHD..ST197908-198104

main78310-14152iTA40..LHD..ST197708-198107

main84506-14020iTA40..ST..EUG197908-198104

sub84506-14021

sub78311-12031

main84506-14021iTA40..ST198104-198107

78310AGROMMET, CHOKE CABLE

main90480-13055iTA40..ST197708-198107

78310CCLIP (FOR CHOKE CABLE)

main78312-12010iTA40..ST198104-198107

78311KNOB, CHOKE CONTROL CABLE

main78311-12030iTA40..ST197908-198104

sub78311-19025

main78311-12031iTA40..ST198104-198107

main89482-20010iTA40..ST197708-197908

78311ANUT, CHOKE SHAFT SET

main90170-11003iTA40..ST197708-198107

78375CLAMP, CHOKE ROD FLEXIBLE TUBE

main78375-14010iTA40..ST197708-198107

9020208028

main90202-08028

9024905001

main90249-05001

9046315617

main90463-15617

9050823003

main90508-23003

9161140812

main91611-40812

9161140814

main91611-40814

9165140612

main91651-40612

9165540616

main91655-40616

9165540620

main91655-40620

9331515012

main93315-15012

9461110800

main94611-10800

9538102015

main95381-02015

9616000400

main96160-00400

31 parts on this diagram · 2 diagrams in section
