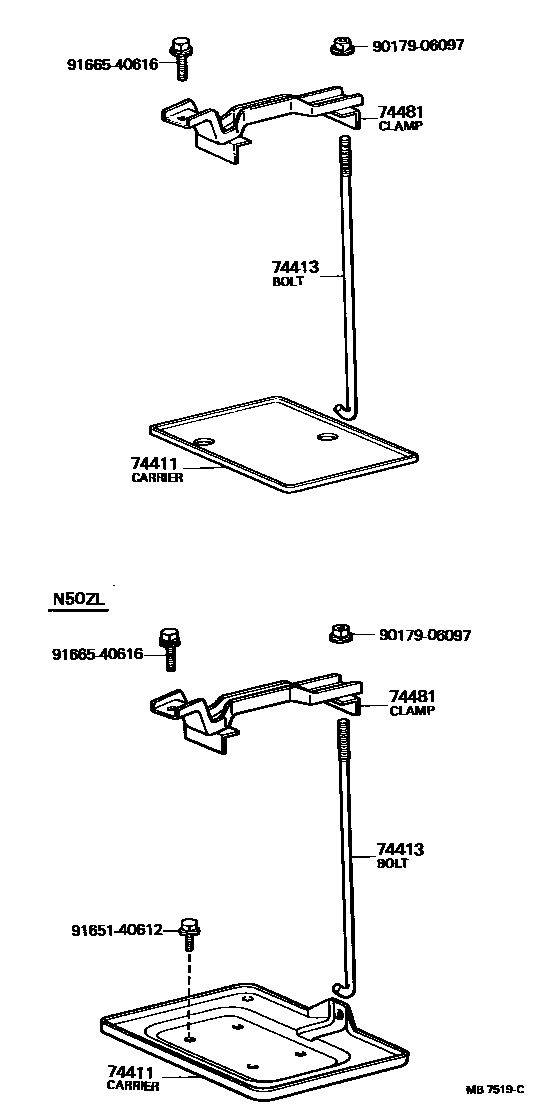

BATTERY CARRIER

0001 1 0002 1

74411CARRIER, BATTERY

main74411-14070iTA4#197708-198107

N50ZL

main74431-14010iTA40..GEN197708-198107

NS40ZAL

sub74431-14050

main74431-14020iTA40..EUG197708-198107

N40L

74413BOLT, BATTERY CLAMP

main74413-20030iTA4#197708-198107

N50ZL

main74451-14010iTA40..EUG197708-198107

NS40ZAL,N40L

74481CLAMP, BATTERY HOLD DOWN

main74404-14110iTA40..GEN197708-198107

NS40ZAL

main74404-14140iTA40..EUG197708-198107

N40L

main74404-14150iTA40197708-197907

N50ZL

sub74404-14151

main74404-14151iTA4#197907-198107

N50ZL

9017906097

main90179-06097

9165140612

main91651-40612

9166540616

main91665-40616

6 parts on this diagram · 2 diagrams in section
