FRONT DOOR WINDOW REGULATOR & HINGE

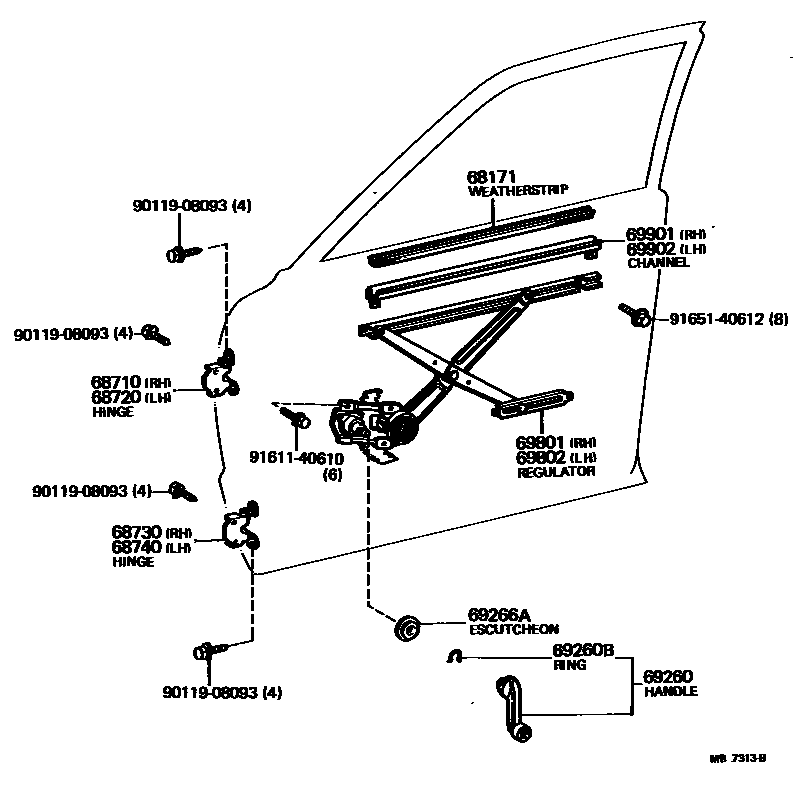

Parts diagram
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
main68171-22020i197708-198107
sub69971-22010
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-14020i197708-198107
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-14020i197708-198107
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-14020i197708-198107
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-14020i197708-198107
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-12010-04i197708-198107
BLUE,BLUE,TRIM8#
sub69260-12010
main69260-12010-05i197708-198107
BEIGE,BEIGE,TRIM4#
sub69260-12010
main69260-12010-11i197708-198107
BLACK,BLACK,TRIM2#
sub69260-12010
main69260-22020-01i197708-198107
BLACK,BLACK,TRIM2#
sub69260-22020
sub69260-14030
main69260-22020-04i197708-198107
BLUE,BLUE,TRIM8#
sub69260-22020
sub69260-14030
main69260-22020-05i197708-198107
BEIGE,BEIGE,TRIM4#
sub69260-22020
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i197708-198107
sub90520-01274
main90520-01274i197708-198107
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
main69266-22010i197903-198107
main69266-22010-01i197708-197903
BLACK,BLACK,TRIM2#
sub69266-22010
main69266-22010-04i197708-197903
BLUE,BLUE,TRIM8#
sub69266-22010
main69266-22010-05i197708-197903
BEIGE,BEIGE,TRIM4#
sub69266-22010
main69272-30010i197708-198107
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-14040i197708-198107
main69810-14050i197708-198107
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-14040i197708-198107
main69820-14050i197708-198107
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-12080i197708-198107
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-12080i197708-198107
9011908093
main90119-08093
9161140610
main91611-40610
9165140612
main91651-40612

15 parts on this diagram · 1 diagram in section
