PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64270-14040iTA40..SED197708-197712

main64270-14041iTA40..SED197712-197801

main64270-14042iTA4#..SED197801-198107

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020iTA4#..SED¥310197708-198107

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-14150-01iTA40..SED..(DLX,ST,STD)197708-198107

BLACK,BLACK,TRIM2#

sub64330-14150¥2,880

main64330-14150-04iTA40..SED..(DLX,ST,STD)197708-198107

BLUE,BLUE,TRIM8#

sub64330-14150¥2,880

main64330-14150-06iTA40..SED..(DLX,ST,STD)197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14150¥2,880

main64330-14160-01iTA4#..GL197708-198107

BLACK,BLACK,TRIM2#

sub64330-14260¥5,300

sub64330-14160¥6,200

main64330-14160-04iTA4#..GL197708-198107

BLUE,BLUE,TRIM8#

sub64330-14260¥5,300

sub64330-14160¥6,200

main64330-14160-06iTA40..GL197708-198008

LIGHT BROWN,BROWN,TRIM4#

sub64330-14260¥5,300

sub64330-14160¥6,200

main64330-14160-26iTA4#..GL198008-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14260¥5,300

sub64330-14160¥6,200

main64330-14220-01iTA47..SED197908-198107

BLACK,BLACK,TRIM2#

sub64330-14150¥2,880

sub64330-14220¥3,490

main64330-14220-04iTA47..SED197908-198107

BLUE,BLUE,TRIM8#

sub64330-14150¥2,880

sub64330-14220¥3,490

main64330-14220-06iTA47..SED197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub64330-14150¥2,880

sub64330-14220¥3,490

64371RETAINER, PACKAGE TRAY TRIM

main64371-12010-20iTA4#..SED198008-198107

LIGHT BROWN,LIGHT BROWN,TRIM4#

sub64371-12010¥190

sub90467-09019¥190

main64371-12010-21iTA4#..SED197708-198107

BLACK,BLACK,TRIM2#

sub64371-12010¥190

sub90467-09019¥190

main64371-12010-34iTA4#..SED197708-198107

BLUE,BLUE,TRIM8#

sub64371-12010¥190

sub90467-09019¥190

main64371-12010-56iTA4#..SED197708-198008

LIGHT BROWN,BROWN,TRIM4#

sub64371-12010¥190

sub90467-09019¥190

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-14040iTA40..SED..(DLX,ST,STD)197708-197712

main64701-14041iTA40..SED..(DLX,ST,STD)197712-197801

main64701-14042iTA4#..SED..(DLX,ST,STD)197801-198107

main64701-14080iTA40..GL197708-197712

main64701-14081iTA40..GL197712-197801

main64701-14082iTA4#..GL197801-198107

64701BHOOK, MALE(FOR LUGGAGE COMPARTMENT MAT)

main90467-07158-03iTA4#..SED197801-198107

GRAY,GRAY,TRIM2#

sub90467-07158¥140

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-14060iTA40..GL,ST197708-198107

main64712-14060iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC

64712BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-14030iTA4#..DLX,GL,ST197708-198107

main64714-14030iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-14030iTA40..GL,ST197708-198107

main64713-14030iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC

64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-14030iTA4#..DLX,GL,ST197708-198107

main64715-14030iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-14030iTA40..GL197708-197908

main64716-14031iTA4#..GL197908-198107

main64716-14031iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main90467-07158-03iTA4#..DLX,GL,ST197803-198107

GRAY,GRAY,TRIM2#

sub90467-07158¥140

main90467-07158-03iTA40..LHD..EUG197910-198107

WEST GERMANY SPEC,GRAY,GRAY,TRIM2#

sub90467-07158¥140

main90467-11005iTA40..GL,ST¥180197712-197803

64756COVER, LUGGAGE COMPARTMENT SIDE

main58703-14010iTA4#..SED197708-198107

RH

main58704-14010iTA4#..SED197708-198107

LH

64770COVER ASSY, SPARE WHEEL

main64770-14010iTA4#..SED¥3,560197708-198107

9356014010

main93560-14010¥60

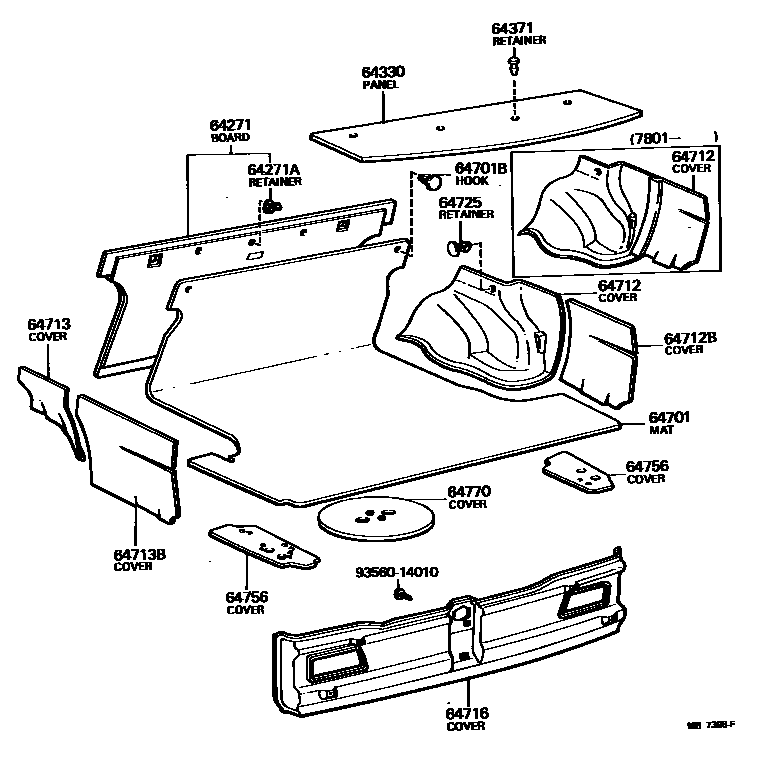

15 parts on this diagram · 1 diagram in section
