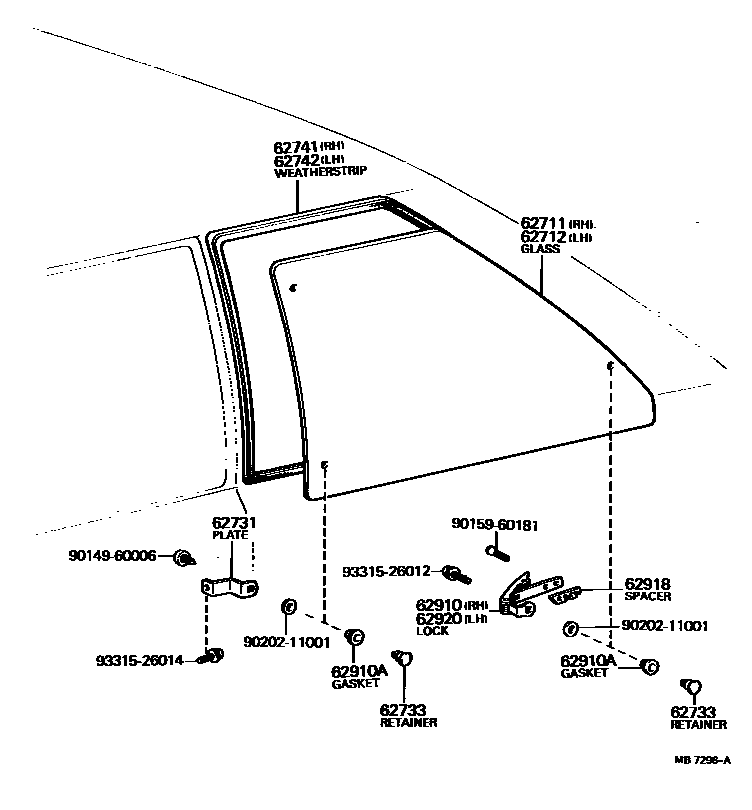

QUARTER WINDOW
62711GLASS, QUARTER WINDOW, RH
*TT,T=4.0
*TT,T=4.0
62712GLASS, QUARTER WINDOW, LH
*TT,T=4.0
*TT,T=4.0
62731PLATE, QUARTER OR SIDE WINDOW HINGE
62733RETAINER, QUARTER OR SIDE WINDOW HINGE
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
WEST GERMANY SPEC
62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62918SPACER, QUARTER WINDOW LOCK SUPPORT
62920LOCK ASSY, QUARTER WINDOW, LH
WEST GERMANY SPEC
9014960006
main90149-60006
9015960181
main90159-60181
9020211001
main90202-11001
9331526012
main93315-26012
9331526014
main93315-26014
15 parts on this diagram · 2 diagrams in section
