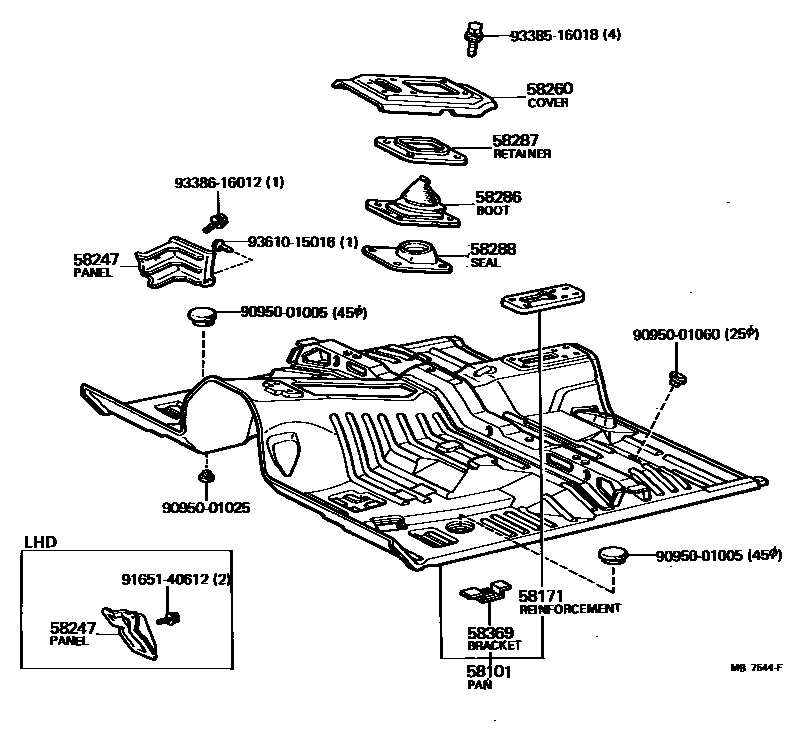

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

58101PAN SUB-ASSY, FRONT FLOOR

main58101-14040iTA40197711-197808

sub58101-14041

sub58041-14050

sub89437-14040

main58101-14041iTA40197808-197907

sub58101-14042

sub58041-14051

sub58152-14081

main58101-14042iTA40197907-197908

sub58111-14040

sub57257-14040

sub57258-14040

sub57417-14021

sub57418-14011

sub57451-14020

sub58131-12020

sub58132-14050

sub58135-20010

sub58141-14010

sub58171-14021

sub58183-14020

sub58184-14020

sub58193-14010

sub58266-14040

sub58277-14020

sub58278-14020

sub58294-14030

sub90461-07004

main58101-14044iTA4#197908-198107

sub58101-14902

sub58193-14010

main58101-14901iTA40197708-197711

sub58101-14040

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-14020iTA4#197708-198107

58247PANEL, FOOTREST, INSIDE

main58191-14020iTA4#..RHD..GL197908-198107

main58191-14030iTA4#..LHD..GL197908-198107

58260COVER ASSY, TRANSMISSION, FRONT

main58281-14050iTA40..MTM197708-197908

main58281-14051iTA4#..MTM197908-198107

sub58281-14050

main58281-14060iTA40..3FC197708-197908

main58281-14061iTA4#..3FC197908-198107

sub58281-14060

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-20070iTA4#..MTM197708-198107

W/CONSOLE

main58286-21010iTA40..MTM..(DLX,STD)197708-198107

58287RETAINER, SHIFT LEVER BOOT

main58287-20050iTA4#..MTM197708-198107

58288SEAL, SHIFT LEVER BOOT

main58288-14040iTA4#..MTM197807-198107

main58288-20060iTA40..MTM197708-197807

sub58288-14040

58369BRACKET, INSULATOR HEAT

main58131-12020iTA4#197711-198107

sub58131-14030

9095001005

main90950-01005

9095001025

main90950-01025

9095001060

main90950-01060

9165140612

main91651-40612

9338516018

main93385-16018

9338616012

main93386-16012

9361015016

main93610-15016

15 parts on this diagram · 3 diagrams in section
