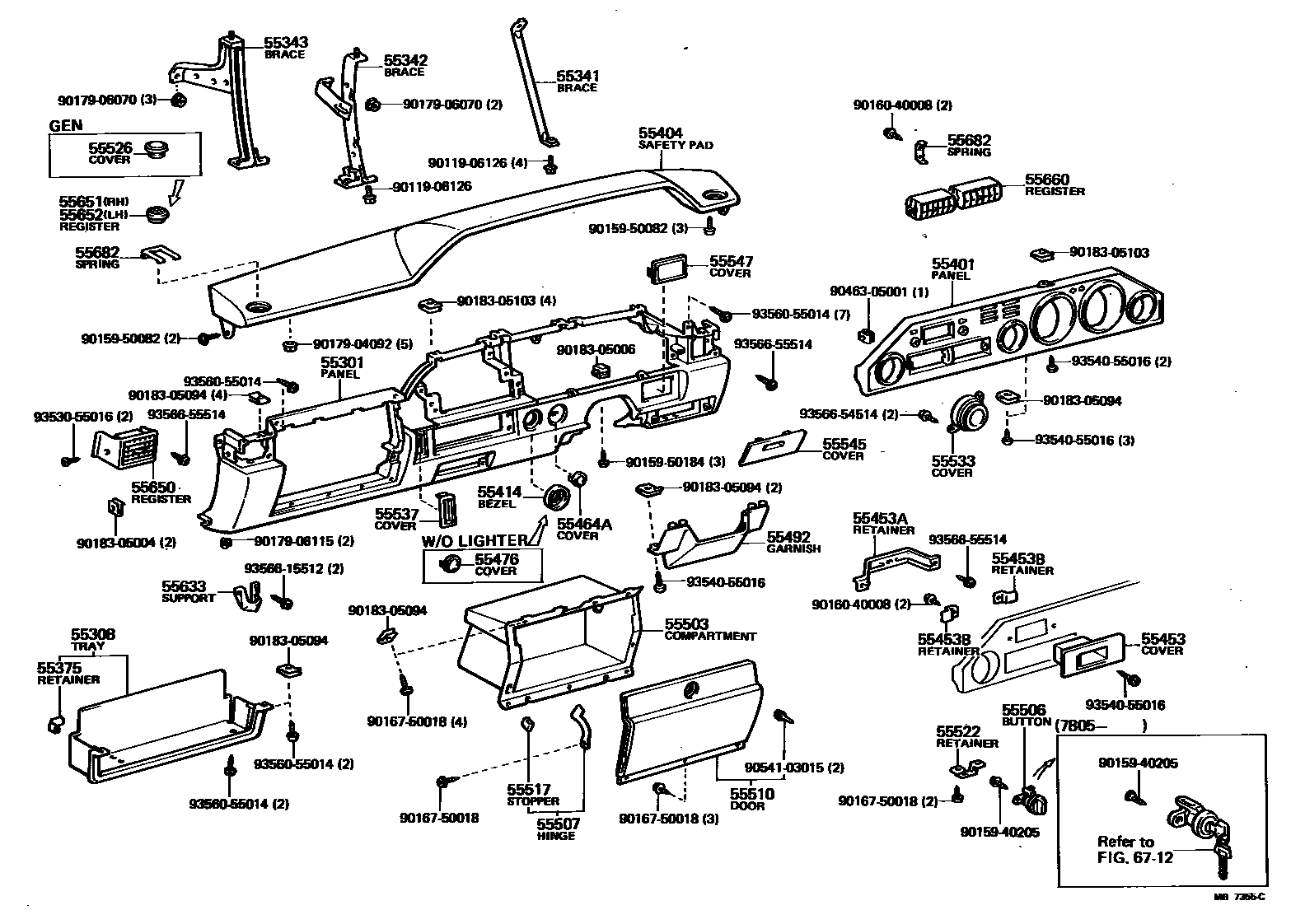

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55312-14010-01iTA4#..RHD197708-198107

BLACK,BLACK,TRIM2#

sub55312-14010

main55312-14010-04iTA4#..RHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55312-14010

main55312-14010-06iTA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55312-14010

main55312-14010-16iTA4#..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55312-14010

main55312-14020-01iTA4#..LHD197708-198107

BLACK,BLACK,TRIM2#

sub55312-14020

main55312-14020-04iTA4#..LHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55312-14020

main55312-14020-06iTA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55312-14020

main55312-14020-16iTA4#..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55312-14020

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14070-01iTA40..RHD..(DLX,GL,ST)197708-197908

BLACK,BLACK,TRIM2#

sub55601-14120

main55601-14070-04iTA40..RHD..SED..(DLX,GL,ST)197708-197908

BLUE,BLUE,TRIM8#

sub55601-14120

main55601-14070-06iTA40..RHD..(DLX,GL,ST)197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55601-14120

main55601-14080-01iTA40..LHD..(DLX,GL,ST)197708-197908

BLACK,BLACK,TRIM2#

sub55601-14150

main55601-14080-04iTA40..LHD..SED..(DLX,GL,ST)197708-197908

BLUE,BLUE,TRIM8#

sub55601-14150

main55601-14080-06iTA40..LHD..(DLX,GL,ST)197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55601-14150

main55601-14120-01iTA4#..RHD..(DLX,GL,ST)197908-198107

BLACK,BLACK,TRIM2#

main55601-14120-04iTA4#..RHD..SED..(DLX,GL,ST)197908-198107

BLUE,BLUE,TRIM8#

main55601-14120-06iTA4#..RHD..(DLX,GL,ST)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main55601-14150-01iTA4#..LHD..(DLX,GL,ST)197908-198107

BLACK,BLACK,TRIM2#

main55601-14150-04iTA4#..LHD..SED..(DLX,GL,ST)197908-198107

BLUE,BLUE,TRIM8#

main55601-14150-06iTA4#..LHD..(DLX,GL,ST)197908-198107

LIGHT BROWN,BROWN,TRIM4#

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-14030iTA4#197708-198107

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14040iTA4#..RHD197708-198107

main55307-14070iTA4#..LHD197708-198107

55343BRACE, INSTRUMENT PANEL, NO.3

main55308-14060iTA4#..LHD197708-198107

main55308-14070iTA4#..RHD197708-198107

55375RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER

main55375-12010iTA4#..DLX,GL,ST197708-198107

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14110iTA40..RHD..STD197708-197908

main55404-14120iTA40..RHD..DLX197708-197908

main55404-14130iTA40..RHD..ST197708-197908

main55404-14140iTA40..RHD..GL197708-197908

main55404-14150iTA40..LHD..STD197708-197908

main55404-14160iTA40..LHD..DLX197708-197908

sub55404-14170

main55404-14170iTA40..LHD..ST197708-197908

main55404-14180iTA40..LHD..GL197708-197908

main55404-14330iTA40..RHD..STD197908-198107

main55404-14340iTA40..RHD..DLX197908-198107

sub55404-14330

main55404-14350iTA4#..RHD..(GL,ST)197908-198107

sub55404-14330

main55404-14360iTA40..LHD..STD197908-198107

main55404-14370iTA4#..LHD..DLX197908-198107

sub55404-14360

main55404-14380iTA4#..LHD..(GL,ST)197908-198107

sub55404-14360

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14260-01iTA4#..RHD197708-198107

BLACK,BLACK,TRIM2#

sub55401-14260

main55401-14260-04iTA4#..RHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55401-14260

main55401-14260-06iTA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55401-14260

main55401-14260-16iTA4#..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55401-14260

main55401-14270-01iTA4#..LHD197708-198107

BLACK,BLACK,TRIM2#

sub55401-14270

main55401-14270-04iTA4#..LHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55401-14270

main55401-14270-06iTA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55401-14270

main55401-14270-16iTA4#..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55401-14270

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14030iTA4#197708-198107

55453COVER, RADIO TUNER OPENING

main55522-14030iTA40197708-197908

main55522-14040iTA4#197908-198107

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55417-14010iTA4#197708-198107

55453BRETAINER, RADIO TUNER OPENING, NO.2

main55475-87101iTA4#197708-198107

55464ACOVER, CHOKE KNOB HOLE

main55464-14010iTA47;TA40..SED..SDN;TA40..WG..3FC..SDN;TA40..RHD..(DLX,GL,STD);TA40..LHD..(DLX,GL,STD)..GEN;TA40..LHD..(DLX,GL,STD)..EUG197708-198107

W/O CHOKE & RR WIPER

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iTA40..STD197708-198107

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-14060-01iTA40197708-197908

BLACK,BLACK,TRIM2#

main55432-14060-04iTA40..SED197708-197908

BLUE,BLUE,TRIM8#

main55432-14060-06iTA40197708-197908

LIGHT BROWN,BROWN,TRIM4#

main55432-14100-01iTA4#197908-198107

BLACK,BLACK,TRIM2#

sub55432-14100

main55432-14100-04iTA4#..SED197908-198107

BLUE,BLUE,TRIM8#

sub55432-14100

main55432-14100-06iTA4#197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55432-14100

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-14030iTA4#..RHD197708-198107

main55581-14120iTA4#..LHD197708-198107

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-14020iTA40..RHD197708-197805

sub55560-12020

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-14050iTA4#197708-198107

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14060-01iTA4#..RHD197708-198107

BLACK,BLACK,TRIM2#

sub55550-14060

main55550-14060-04iTA4#..RHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55550-14060

main55550-14060-06iTA40..RHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55550-14060

main55550-14060-16iTA4#..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55550-14060

main55550-14070-01iTA4#..LHD197708-198107

BLACK,BLACK,TRIM2#

sub55550-14070

main55550-14070-04iTA4#..LHD..SED197708-198107

BLUE,BLUE,TRIM8#

sub55550-14070

main55550-14070-06iTA40..LHD197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55550-14070

main55550-14070-16iTA4#..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55550-14070

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iTA4#197708-198107

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-14030iTA4#..LHD197708-198107

main55561-14040iTA4#..RHD197708-198107

55526COVER, INSTRUMENT PANEL REGISTER OPENING

main55526-14010-01iTA40..GEN197708-198107

BLACK,BLACK,TRIM2#

sub55526-14010

main55526-14010-04iTA40..GEN197708-198107

BLUE,BLUE,TRIM8#

sub55526-14010

main55526-14010-06iTA40..GEN197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub55526-14010

main55526-14010-16iTA40..GEN197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55526-14010

55533COVER, AUTO CLOCK HOLE

main55533-14030iTA40197708-198107

main55533-14050iTA4#..DLX197908-198107

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55385-20011iTA40..DLX,STD197708-198107

55545COVER, FUSE BOX OPENING

main55540-14050-01iTA4#..RHD197908-198107

BLACK,BLACK,TRIM2#

sub55540-14050

main55540-14050-04iTA4#..RHD..SED197908-198107

BLUE,BLUE,TRIM8#

sub55540-14050

main55540-14050-06iTA4#..RHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55540-14050

main55540-14060-01iTA4#..LHD197908-198107

BLACK,BLACK,TRIM2#

sub55540-14060

main55540-14060-04iTA4#..LHD..SED197908-198107

BLUE,BLUE,TRIM8#

sub55540-14060

main55540-14060-06iTA4#..LHD197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub55540-14060

main55545-14040-01iTA40197708-197905

BLACK,BLACK,TRIM2#

sub55545-14041

main55545-14040-04iTA40..SED197708-197905

BLUE,BLUE,TRIM8#

sub55545-14041

main55545-14040-06iTA40197708-197905

LIGHT BROWN,BROWN,TRIM4#

sub55545-14041

main55545-14041-01iTA40197905-197908

BLACK,BLACK,TRIM2#

sub55540-14050

main55545-14041-04iTA40..SED197905-197908

BLUE,BLUE,TRIM8#

sub55540-14050

main55545-14041-06iTA40197905-197908

LIGHT BROWN,BROWN,TRIM4#

sub55540-14050

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-14020iTA4#..RHD197708-198107

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-14030iTA4#..DLX,GL,ST197708-198107

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14030-01iTA40..STD197708-198107

RH,BLACK,BLACK,TRIM2#

sub55650-14040

sub55650-14030

main55650-14030-04iTA40..SED..STD197708-198107

RH,BLUE,BLUE,TRIM8#

sub55650-14040

sub55650-14030

main55650-14030-06iTA40..STD197708-197908

RH,LIGHT BROWN,BROWN,TRIM4#

sub55650-14040

sub55650-14030

main55650-14030-16iTA40..STD197908-198107

RH,LIGHT BROWN,BROWN,TRIM4#

sub55650-14040

sub55650-14030

main55650-14040-01iTA4#..DLX,GL,ST197708-198107

RH,BLACK,BLACK,TRIM2#

sub55650-14040

main55650-14040-04iTA4#..SED..(DLX,GL,ST)197708-198107

RH,BLUE,BLUE,TRIM8#

sub55650-14040

main55650-14040-06iTA40..DLX,GL,ST197708-197908

RH,LIGHT BROWN,BROWN,TRIM4#

sub55650-14040

main55650-14040-16iTA4#..DLX,GL,ST197908-198107

RH,LIGHT BROWN,BROWN,TRIM4#

sub55650-14040

main55660-14010-01iTA40..STD197708-198107

LH,BLACK,BLACK,TRIM2#

sub55660-14020

sub55660-14010

main55660-14010-04iTA40..SED..STD197708-198107

LH,BLUE,BLUE,TRIM8#

sub55660-14020

sub55660-14010

main55660-14010-06iTA40..STD197708-197908

LH,LIGHT BROWN,BROWN,TRIM4#

sub55660-14020

sub55660-14010

main55660-14010-16iTA40..STD197908-198107

LH,LIGHT BROWN,BROWN,TRIM4#

sub55660-14020

sub55660-14010

main55660-14020-01iTA4#..DLX,GL,ST197708-198107

LH,BLACK,BLACK,TRIM2#

sub55660-14020

main55660-14020-04iTA4#..SED..(DLX,GL,ST)197708-198107

LH,BLUE,BLUE,TRIM8#

sub55660-14020

main55660-14020-06iTA40..DLX,GL,ST197708-197908

LH,LIGHT BROWN,BROWN,TRIM4#

sub55660-14020

main55660-14020-16iTA4#..DLX,GL,ST197908-198107

LH,LIGHT BROWN,BROWN,TRIM4#

sub55660-14020

55651REGISTER, INSTRUMENT PANEL, NO.1

main55652-14020-01iTA40197708-197908

RH,BLACK,BLACK,TRIM2#

sub55652-14020

main55652-14020-04iTA40..SED197708-197908

RH,BLUE,BLUE,TRIM8#

sub55652-14020

main55652-14020-06iTA40197708-197908

RH,LIGHT BROWN,BROWN,TRIM4#

sub55652-14020

main55961-14030-01iTA4#197908-198107

RH,BLACK,BLACK,TRIM2#

sub55961-14030

main55961-14030-04iTA4#..SED197908-198107

RH,BLUE,BLUE,TRIM8#

sub55961-14030

main55961-14030-06iTA4#197908-198107

RH,LIGHT BROWN,BROWN,TRIM4#

sub55961-14030

55652REGISTER, INSTRUMENT PANEL, NO.2

main55652-14020-01iTA40197708-197908

LH,BLACK,BLACK,TRIM2#

sub55652-14020

main55652-14020-04iTA40..SED197708-197908

LH,BLUE,BLUE,TRIM8#

sub55652-14020

main55652-14020-06iTA40197708-197908

LH,LIGHT BROWN,BROWN,TRIM4#

sub55652-14020

main55962-14010-01iTA4#197908-198107

LH,BLACK,BLACK,TRIM2#

sub55962-14010

main55962-14010-04iTA4#..SED197908-198107

LH,BLUE,BLUE,TRIM8#

sub55962-14010

main55962-14010-06iTA4#197908-198107

LH,LIGHT BROWN,BROWN,TRIM4#

sub55962-14010

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55670-14020iTA4#197708-198107

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-14020iTA4#197708-198107

SIDE

main58914-20010iTA4#197708-198107

CTR

6712

9011906126

main90119-06126

9015940205

main90159-40205

9015950082

main90159-50082

9015950184

main90159-50184

9016040008

main90160-40008

9016750018

main90167-50018

9017904092

main90179-04092

9017906070

main90179-06070

9017906115

main90179-06115

9018305004

main90183-05004

9018305006

main90183-05006

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9054103015

main90541-03015

9353055016

main93530-55016

9354055016

main93540-55016

9356055014

main93560-55014

9356615512

main93566-15512

9356654514

main93566-54514

9356655514

main93566-55514

54 parts on this diagram · 2 diagrams in section
