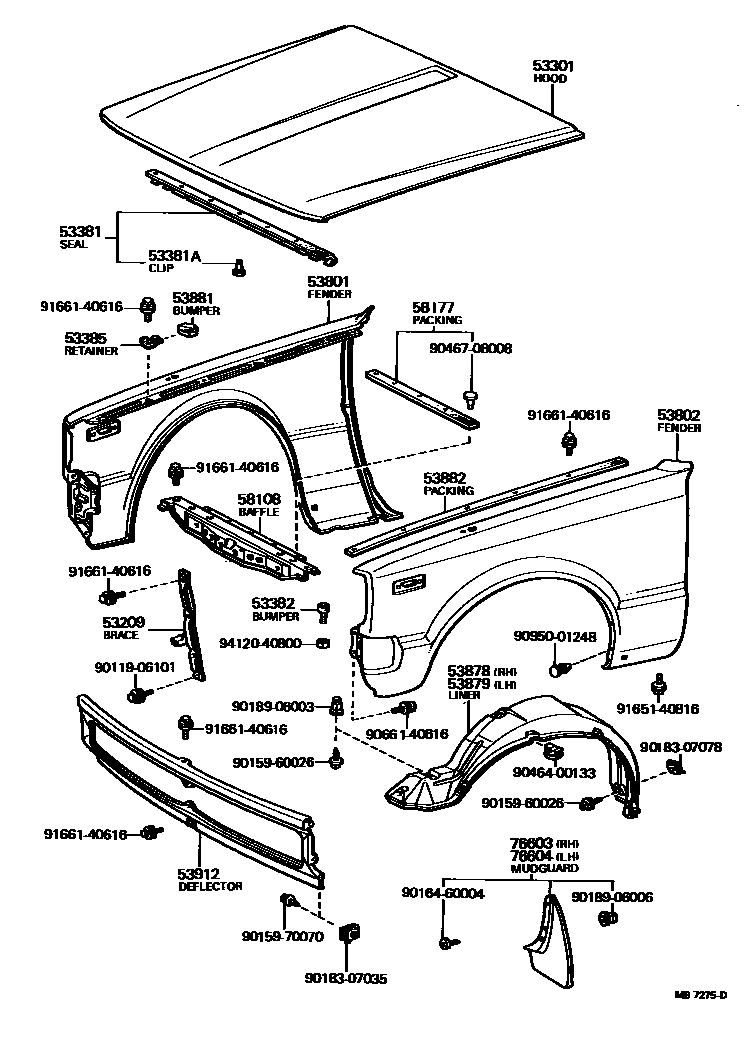

HOOD & FRONT FENDER

0001 1 0002 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-14050iTA40197708-197908

main53208-14100iTA4#197908-198107

53301HOOD SUB-ASSY

main53301-14120iTA40197708-197908

main53301-14121iTA4#197908-198101

main53301-14260iTA4#..EUR198101-198107

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14050iTA40197708-197908

main53381-14080iTA4#197908-198107

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008×7iTA40197708-197908

main90467-08011×7iTA4#197908-198107

53382BUMPER, HOOD, FRONT

main53382-20011×2iTA4#197708-198107

sub53382-90A00

53385RETAINER, HOOD, BUMPER

main53385-14010×2iTA40197708-197908

RH

main53385-14020×2iTA4#197908-198107

RH

main53386-14010×2iTA40197708-197908

LH

main53386-14020×2iTA4#197908-198107

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-14331iTA4#197908-198107

W/O MIRROR HOLE

main53801-14340iTA40..RHD;TA40..LHD..GEN;TA40..LHD..EUG197708-197908

W/MIRROR HOLE

main53801-14420iTA40197708-197908

W/O MIRROR HOLE

main53801-14460iTA40..(DLX,GL,STD)..GEN197908-198107

W/MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-14351iTA4#197908-198107

W/O MIRROR HOLE

main53802-14360iTA40..RHD;TA40..LHD..GEN;TA40..LHD..EUG197708-197908

W/MIRROR HOLE

main53802-14440iTA40197708-197908

W/O MIRROR HOLE

main53802-14480iTA40..(DLX,GL,STD)..GEN197908-198107

W/MIRROR HOLE

53878LINER, FRONT FENDER, RH

main53875-14030iTA40197708-197908

main53875-14031iTA4#197908-198107

53879LINER, FRONT FENDER, LH

main53876-14030iTA40197708-197908

main53876-14031iTA4#197908-198107

53881BUMPER, FENDER TO HOOD

main53384-14010×4iTA40197708-197805

main53384-14030×4iTA4#197805-198107

53882PACKING, FRONT FENDER MAIN

main53882-14050×2iTA4#197708-198107

53912DEFLECTOR, FRONT BUMPER STONE

main53911-14070iTA40197708-197908

main53911-14071iTA4#197908-198107

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53205-14010iTA4#197908-198107

main53216-14070iTA40197708-197908

58177PACKING, RADIATOR BAFFLE

main53293-14020iTA40197708-198107

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19015iTA4#..SED197708-198107

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19015iTA4#..SED197708-198107

9011906101

main90119-06101

9015960026

main90159-60026

9015970070

main90159-70070

9016460004

main90164-60004

9018307035

main90183-07035

9018307078

main90183-07078

9018906003

main90189-06003

9018906006

main90189-06006

9046400133

main90464-00133

9046708008

main90467-08008

9066140616

main90661-40616

9095001248

main90950-01248

9165140816

main91651-40816

9166140616

main91661-40616

9412040800

main94120-40800

32 parts on this diagram · 2 diagrams in section
