FRONT SPRING & SHOCK ABSORBER

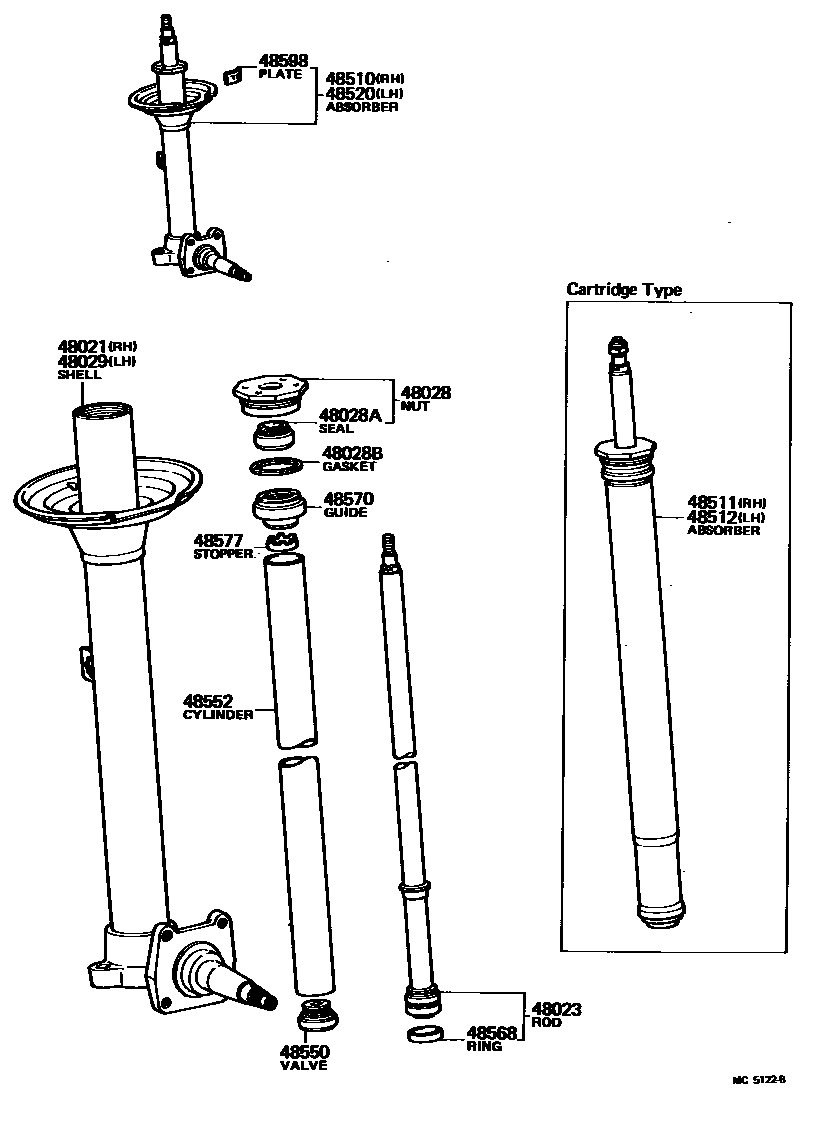

Parts diagram
48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
main48021-14040i197708-198107
13IN
main48021-14050i197708-197903
14IN,AUSTRIA SPEC
48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
main48023-14033i197708-197803
14IN,AUSTRIA SPEC
main48023-14034i197803-197808
14IN,AUSTRIA SPEC
main48023-14043i197708-197803
13IN
main48023-14044i197803-197808
13IN
main48023-14070i197808-198008
13IN
main48023-14071i198008-198107
13IN
main48023-14080i197808-197903
14IN,AUSTRIA SPEC
48028NUT SUB-ASSY, SHOCK ABSORBER RING
main48028-14011i197708-198107
sub48028-14012
48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)
main90316-22001i197708-198107
48028BGASKET(FOR SHOCK ABSORBER RING NUT)
main90430-43206i197708-198107
48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
main48021-14040i197708-198107
13IN
main48021-14050i197708-197903
14IN,AUSTRIA SPEC
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-14101i197708-197803
13IN
main48510-14102i197803-197808
13IN
sub48510-14103
main48510-14121i197708-197803
14IN,AUSTRIA SPEC
main48510-14122i197803-197808
14IN,AUSTRIA SPEC
sub48510-14123
main48510-14130i197808-198008
13IN
sub48510-14131
main48510-14131i198008-198107
13IN
main48510-14140i197808-197903
14IN,AUSTRIA SPEC
sub48510-14141
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
main48511-14090i197708-197808
13IN
main48511-14100i197708-197808
14IN,AUSTRIA SPEC
main48511-14110i197808-198008
13IN
main48511-14120i197808-197903
14IN,AUSTRIA SPEC
sub48511-20080
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
main48511-14090i197708-197808
13IN
main48511-14100i197708-197808
14IN,AUSTRIA SPEC
main48511-14110i197808-198008
13IN
main48511-14120i197808-197903
14IN,AUSTRIA SPEC
sub48511-20080
48520ABSORBER ASSY, SHOCK, FRONT LH
main48510-14101i197708-197803
13IN
main48510-14102i197803-197808
13IN
sub48510-14103
main48510-14121i197708-197803
14IN,AUSTRIA SPEC
main48510-14122i197803-197808
14IN,AUSTRIA SPEC
sub48510-14123
main48510-14130i197808-198008
13IN
sub48510-14131
main48510-14131i198008-198107
13IN
main48510-14140i197808-197903
14IN,AUSTRIA SPEC
sub48510-14141
48550VALVE ASSY, SHOCK ABSORBER BASE
main48550-14012i197708-197808
main48550-14040i197808-198107
48552CYLINDER, SHOCK ABSORBER(FOR FRONT)
main48552-14010i197708-198107
13IN
main48552-14021i197708-197903
14IN,AUSTRIA SPEC
48568RING, SHOCK ABSORBER PISTON
main48568-14010i197708-197803
main48568-22020i197803-198107
48570GUIDE ASSY, SHOCK ABSORBER ROD
main48022-14010i197708-198107
sub48022-22040
sub90430-42001
48577STOPPER, SHOCK ABSORBER REBOUND
main48579-14011i197708-198107
48598PLATE, ABSORBER NAME
main48598-14201i197708-197803
13IN
main48598-14202i197803-198107
13IN
main48598-14221i197708-197803
14IN,AUSTRIA SPEC
main48598-14222i197803-197808
14IN,AUSTRIA SPEC
main48598-14250i197808-198008
13IN
main48598-14260i197808-197903
14IN,AUSTRIA SPEC

16 parts on this diagram · 2 diagrams in section
