STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
2-SPOKE
3-SPOKE,BLACK,BLACK,TRIM2#
3-SPOKE,BLUE,BLUE,TRIM8#
3-SPOKE,BROWN,BROWN,TRIM4#
3-SPOKE,LIGHT BROWN,BROWN,TRIM4#
3-SPOKE,LEATHER,BLACK,BLACK,TRIM2#
3-SPOKE,LEATHER,BLUE,BLUE,TRIM8#
3-SPOKE,LEATHER,BROWN,BROWN,TRIM4#
3-SPOKE,LEATHER,LIGHT BROWN,BROWN,TRIM4#
3-SPOKE,URETHANE,BLACK,BLACK,TRIM2#
3-SPOKE,URETHANE,BLUE,BLUE,TRIM8#
3-SPOKE,URETHANE,LIGHT BROWN,BROWN,TRIM4#
3-SPOKE,WOODY
45130BUTTON ASSY, HORN
2-SPOKE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
3-SPOKE,LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
2-SPOKE
45146SPRING, HORN BUTTON CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
45193PIN, HORN BUTTON
45201PNUT, STEERING WHEEL SET
9331915014
main93319-15014
9351013006
main93510-13006
9351013010
main93510-13010

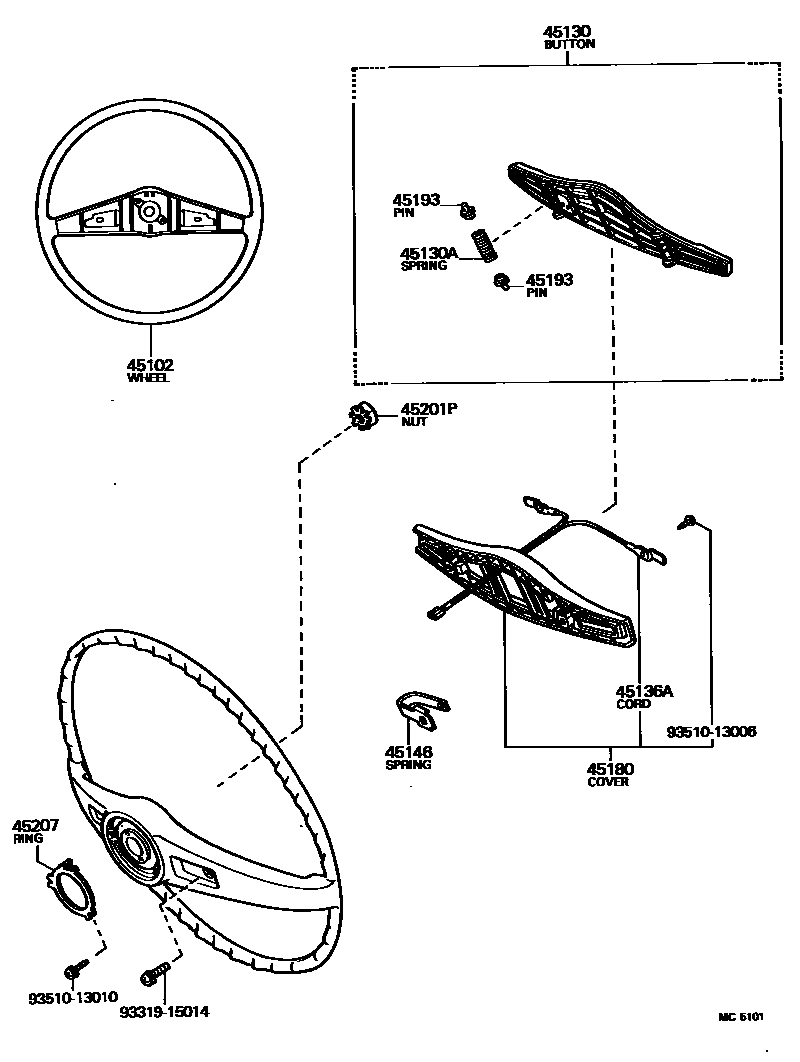

13 parts on this diagram · 4 diagrams in section
