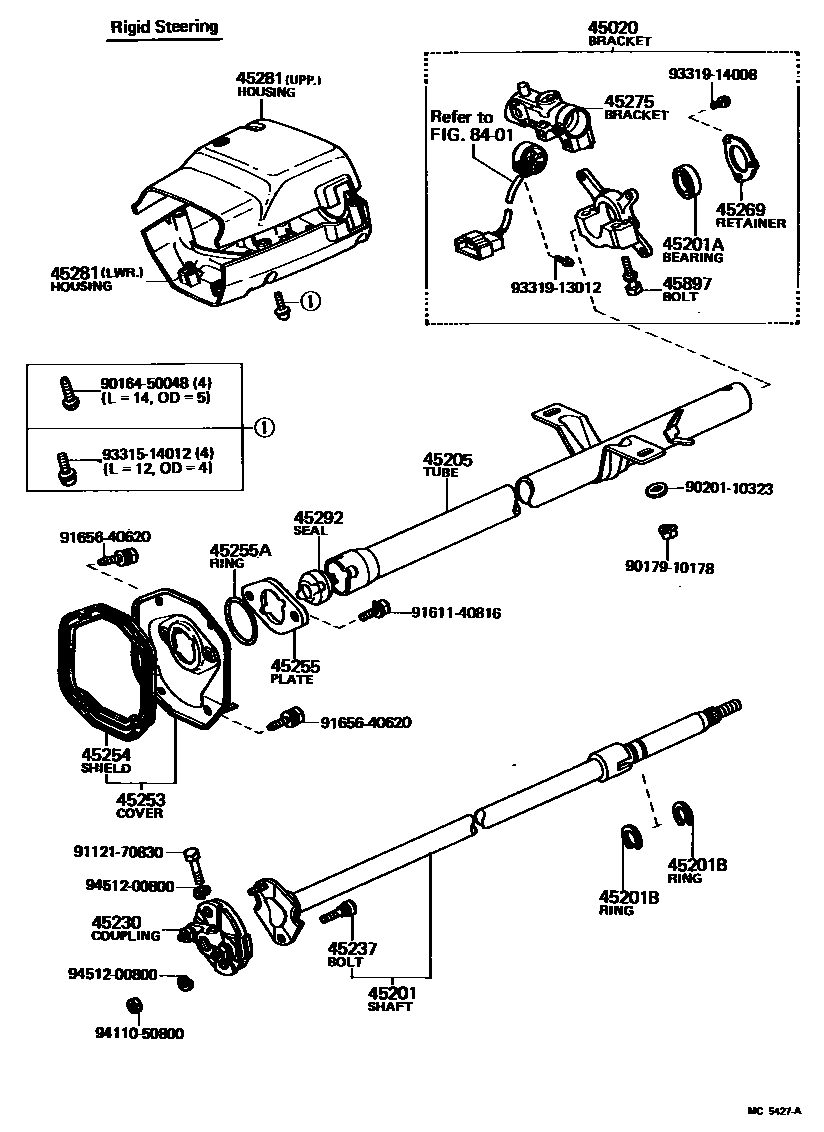

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
RIGID
COLLAPSIBLE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45205TUBE SUB-ASSY, STEERING COLUMN
RIGID
COLLAPSIBLE,MESH TYPE
COLLAPSIBLE,BALL TYPE
45230COUPLING ASSY, FLEXIBLE
45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45255PLATE, STEERING COLUMN HOLE COVER
45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,BROWN,BROWN,TRIM4#
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,LIGHT BROWN,BROWN,TRIM4#
45292SEAL, MAIN SHAFT LOWER DUST
COLLAPSIBLE
RIGID
45897BOLT, STEERING LOCK SET
8401
9016450048
9017910178
9020110323
9112170830
9161140816
9165640620
9331514012
9331913012
9331914008
9411050800
9451200800
28 parts on this diagram · 5 diagrams in section
