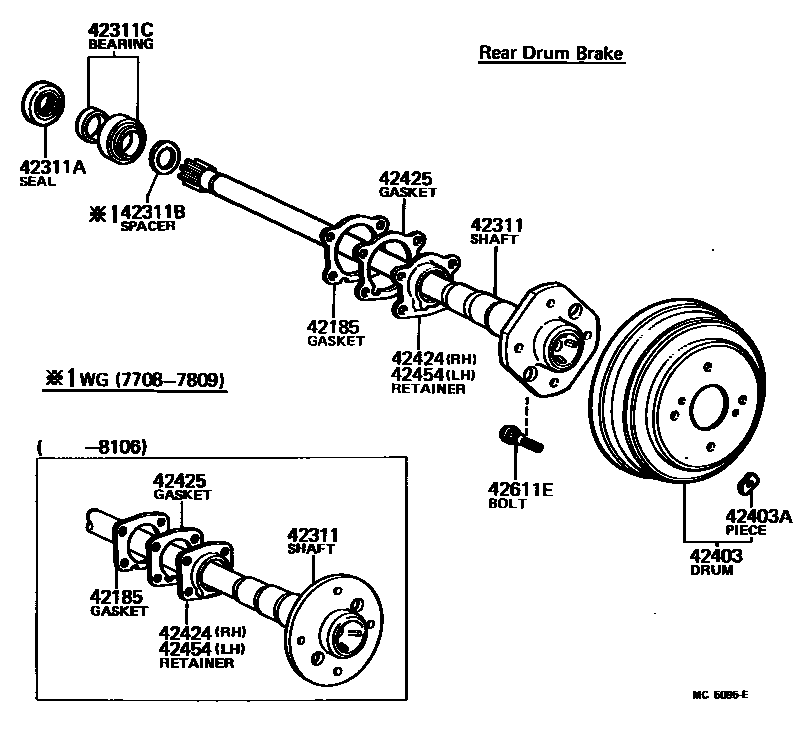

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-14020iTA4#198106-198107

main42185-22020iTA4#197708-198106

42311SHAFT, REAR AXLE

main42311-14080iTA4#..SED197708-198105

sub42311-14140

main42311-14140iTA4#..SED198105-198107

main42311-15010iTA4#..WG197809-198107

main42311-20060iTA40..WG197708-197809

sub42311-15010

sub90369-35003

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iTA4#197708-198107

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-35153iTA40..WG197708-197809

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iTA4#197708-198107

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14060iTA4#197708-198107

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iTA4#197708-198107

10G,10G

main90937-01118iTA4#197708-198107

20G,20G

main90937-01119iTA4#197708-198107

30G,30G

main90937-01120iTA40197708-197808

40G,40G

main90937-01121iTA40197708-197808

50G,50G

main90937-01122iTA40197708-197808

60G,60G

main90937-01195iTA4#197808-198107

40G,40G

main90937-01196iTA4#197808-198107

50G,50G

main90937-01197iTA4#197808-198107

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iTA4#198106-198107

main42424-21010iTA4#197708-198106

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iTA4#198106-198107

main42425-22020iTA4#197708-198106

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iTA4#198106-198107

main42454-21010iTA40..SED197708-198106

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iTA4#197708-198107

*12-1.5PX36-23.5

sub90942-02047

11 parts on this diagram · 1 diagram in section
