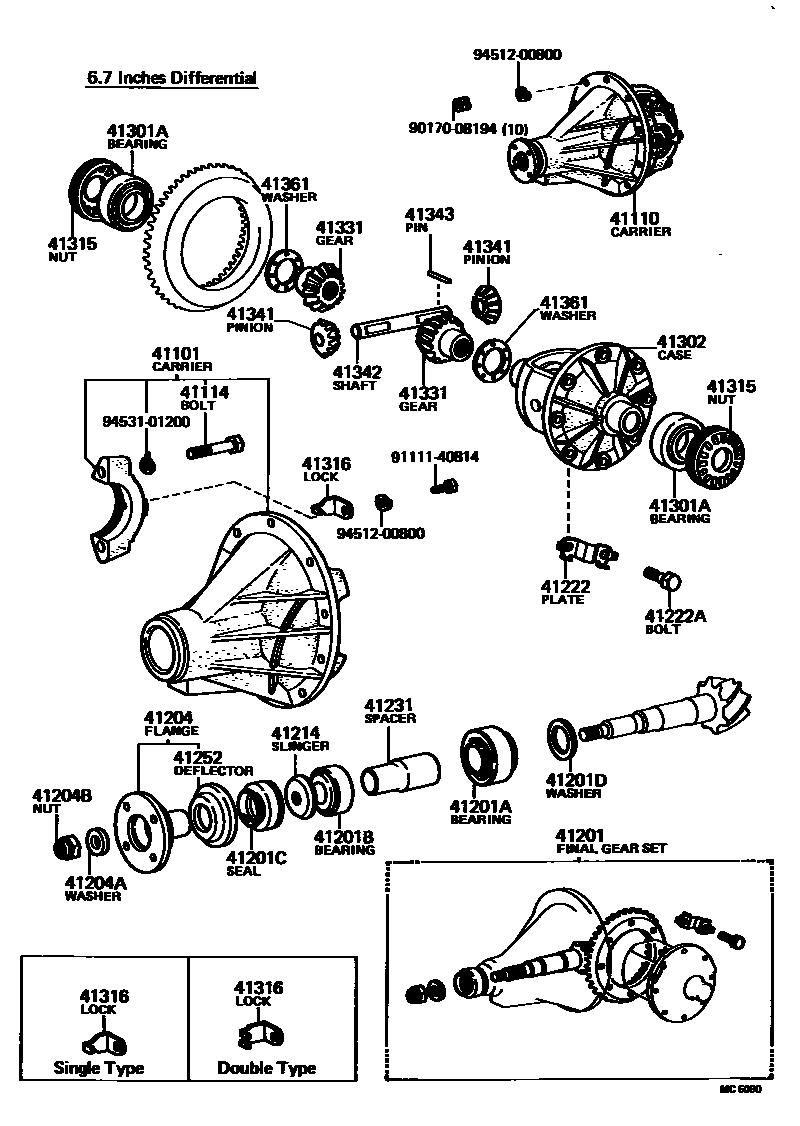

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=41:10=4.100
R=41:11=3.727
R=43:11=3.909
R=43:10=4.300
41114BOLT, REAR DIFFERENTIAL BEARING CAP
sub90105-12114
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-34019
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.35-2.37
T=2.39,MARK 06,T=2.38-2.40
T=2.42,MARK 07,T=2.41-2.43
T=2.43,MARK 08,T=2.44-2.46
T=2.48,MARK 09,T=2.47-2.49
T=2.51,MARK 10,T=2.50-2.52
T=2.54,MARK 11,T=2.53-2.55
T=2.57,MARK 12,T=2.56-2.58
T=2.60,MARK 13,T=2.59-2.61
T=2.63,MARK 14,T=2.62-2.64
T=2.66,MARK 15,T=2.65-2.67
T=2.69,MARK 16,T=2.68-2.70
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
sub41222-28010
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
KOYO
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
N=15
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02,T=0.98-1.02
T=1.10,MARK 03,T=1.08-1.12
T=1.20,MARK 04,T=1.18-1.22
T=0.95,MARK 14,T=0.93-0.97
T=1.05,MARK 15,T=1.03-1.07
T=1.15,MARK 16,T=1.13-1.17
9017008194
main90170-08194
9111140814
main91111-40814
9451200800
main94512-00800
9453101200
main94531-01200
29 parts on this diagram · 2 diagrams in section
