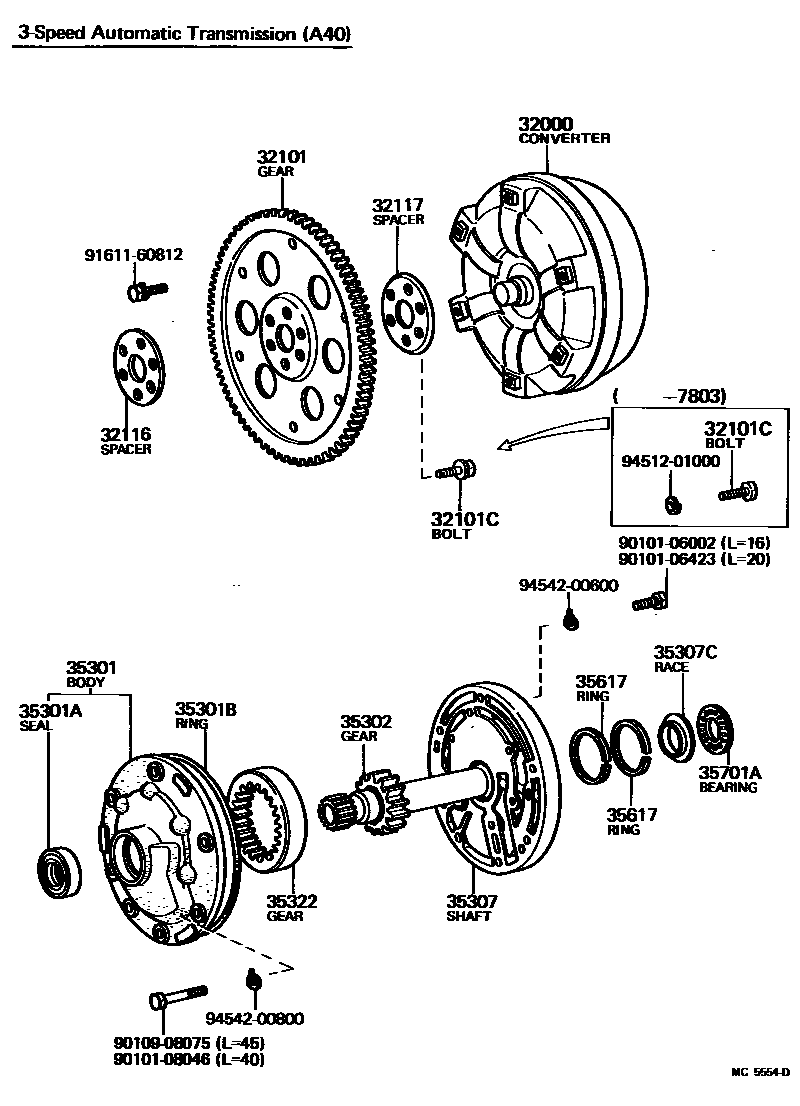

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12030iTA40..3FC197708-198107

main32000-14040iTA47..3FC197908-198107

sub32000-14041

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iTA4#..3FC197708-198107

sub32101-22030

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10035iTA40..3FC197708-197803

sub90105-10006

main90105-10006iTA4#..3FC197803-198107

*10-1.25X23-14.5

32116SPACER, DRIVE PLATE, FRONT

main32116-14010iTA40..3FC197708-197712

sub32116-14011

main32116-14011iTA4#..3FC197712-198107

32117SPACER, DRIVE PLATE, REAR

main32117-14010iTA40..3FC197708-197712

sub32117-14011

main32117-14011iTA4#..3FC197712-198107

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22011iTA4#..3FC197708-197909

sub35301-30030

sub90101-06002

sub90101-08046

sub90301-99010

main35301-22012iTA4#..3FC197909-198011

sub35301-30030

sub90101-06002

sub90101-08046

main35301-30030iTA4#..3FC198011-198107

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iTA4#..3FC197708-198107

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTA4#..3FC197708-197909

main90301-99010iTA4#..3FC197909-198107

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iTA4#..3FC197708-198107

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35307-22011iTA4#..3FC197708-197909

sub35370-22010

main35370-22010iTA4#..3FC197909-198107

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iTA4#..3FC197708-198107

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iTA4#..3FC197708-198107

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-22010iTA4#..3FC197708-198107

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iTA4#..3FC197708-198107

9010106002

main90101-06002

9010106423

main90101-06423

9010108046

main90101-08046

9010908075

main90109-08075

9161160812

main91611-60812

9451201000

main94512-01000

9454200600

main94542-00600

9454200800

main94542-00800

22 parts on this diagram · 1 diagram in section
