SHIFT LEVER & RETAINER

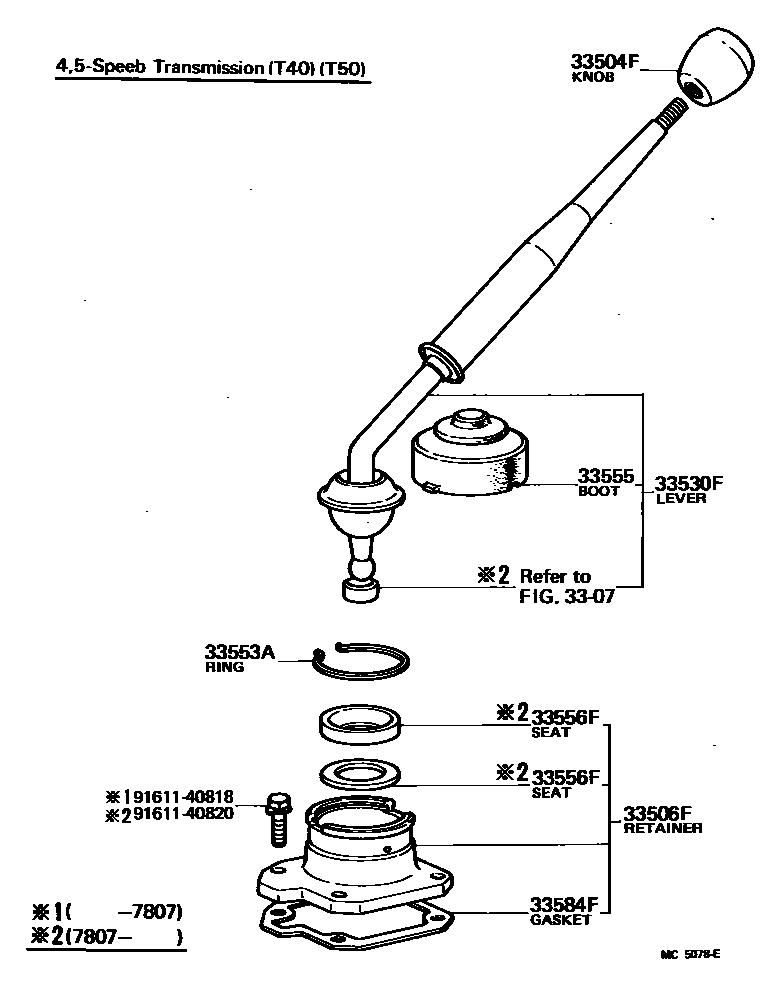

Parts diagram
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-12120i197708-197908
WOODY
main33504-12140i197708-197908
WOODY
main33504-20052-01i197908-198107
URETHANE,BLACK,BLACK,TRIM2#
sub33504-20052
sub33504-14050
main33504-20052-04i197908-198107
URETHANE,BLUE,BLUE,TRIM8#
sub33504-20052
sub33504-14050
main33504-20052-06i197908-198107
URETHANE,LIGHT BROWN,BROWN,TRIM4#
sub33504-20052
sub33504-14050
main33504-20062-01i197908-198107
URETHANE,BLACK,BLACK,TRIM2#
sub33504-20062
sub33504-14040
main33504-20062-04i197908-198107
URETHANE,BLUE,BLUE,TRIM8#
sub33504-20062
sub33504-14040
main33504-20062-05i197908-198107
URETHANE,BEIGE,BEIGE,TRIM4#
sub33504-20062
sub33504-14040
main33504-22062-01i197708-198107
LEATHER,BLACK,BLACK,TRIM2#,4#
sub33504-22062
main33504-22062-04i197808-198107
LEATHER,BLUE,BLUE,TRIM8#
sub33504-22062
main33504-22062-06i197808-198107
LEATHER,LIGHT BROWN,BROWN,TRIM4#
sub33504-22062
main33504-22100-01i197708-198010
BLACK,BLACK,TRIM2#,4#
sub33504-22100
sub33504-22101
main33504-22100-04i197808-198010
BLUE,BLUE,TRIM8#
sub33504-22100
sub33504-22101
main33504-22100-05i197808-198010
BEIGE,BEIGE,TRIM4#
sub33504-22100
sub33504-22101
main33504-22101-01i198010-198107
BLACK,BLACK,TRIM2#
sub33504-14040
sub33504-22101
main33504-22101-04i198010-198107
BLUE,BLUE,TRIM8#
sub33504-14040
sub33504-22101
main33504-22101-05i198010-198107
BEIGE,BEIGE,TRIM4#
sub33504-14040
sub33504-22101
main33504-22110-01i198003-198010
BLACK,BLACK,TRIM2#,4#
sub33504-22110
sub33504-22111
main33504-22110-04i198003-198010
BLUE,BLUE,TRIM8#
sub33504-22110
sub33504-22111
main33504-22110-05i198003-198010
BEIGE,BEIGE,TRIM4#
sub33504-22110
sub33504-22111
main33504-22111-01i198010-198107
BLACK,BLACK,TRIM2#
sub33504-14050
sub33504-22111
main33504-22111-04i198010-198107
BLUE,BLUE,TRIM8#
sub33504-14050
sub33504-22111
main33504-22111-05i198010-198107
BEIGE,BEIGE,TRIM4#
sub33504-14050
sub33504-22111
main33542-30120-01i197708-198107
BLACK,BLACK,TRIM2#,4#
sub33542-30120
main33542-30120-04i197708-198107
BLUE,BLUE,TRIM8#
sub33542-30120
main33542-30120-05i197708-198107
BEIGE,BEIGE,TRIM4#
sub33542-30120
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
main33506-20160i197708-197807
sub33570-14021
main33570-14020i197807-197906
sub33570-14H00
main33570-14021i197906-198107
main33570-22070i198008-198107
sub33570-30010
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33503-14050i197708-197908
main33503-14060i197708-197908
main33503-14091i197908-198107
main33503-14101i197908-198107
main33530-14170i197807-197908
sub33530-14220
main33530-14200i197708-197807
main33530-14210i197807-197908
sub33530-14230
main33530-14220i197908-198107
sub33530-12231
main33530-14230i197908-198107
sub33530-12241
main33530-14331i198011-198107
main33530-20170i197708-197807
main33530-20200i198008-198011
main33530-20220i198008-198011
main33530-20221i198011-198107
33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)
main90521-49002i197708-197906
sub90521-49003
main90521-49003i197906-198107
33555BOOT, SHIFT LEVER
main33555-12090i198103-198107
main33555-20060i197708-198103
main33555-22030i197708-198107
main33555-22050i198008-198107
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
main33556-14010i197807-198107
T=8.5
main33556-14020i197807-198107
T=3
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
main33584-20010i197708-198107
9161140818
main91611-40818
9161140820
main91611-40820

10 parts on this diagram · 3 diagrams in section
