CLUTCH & RELEASE FORK

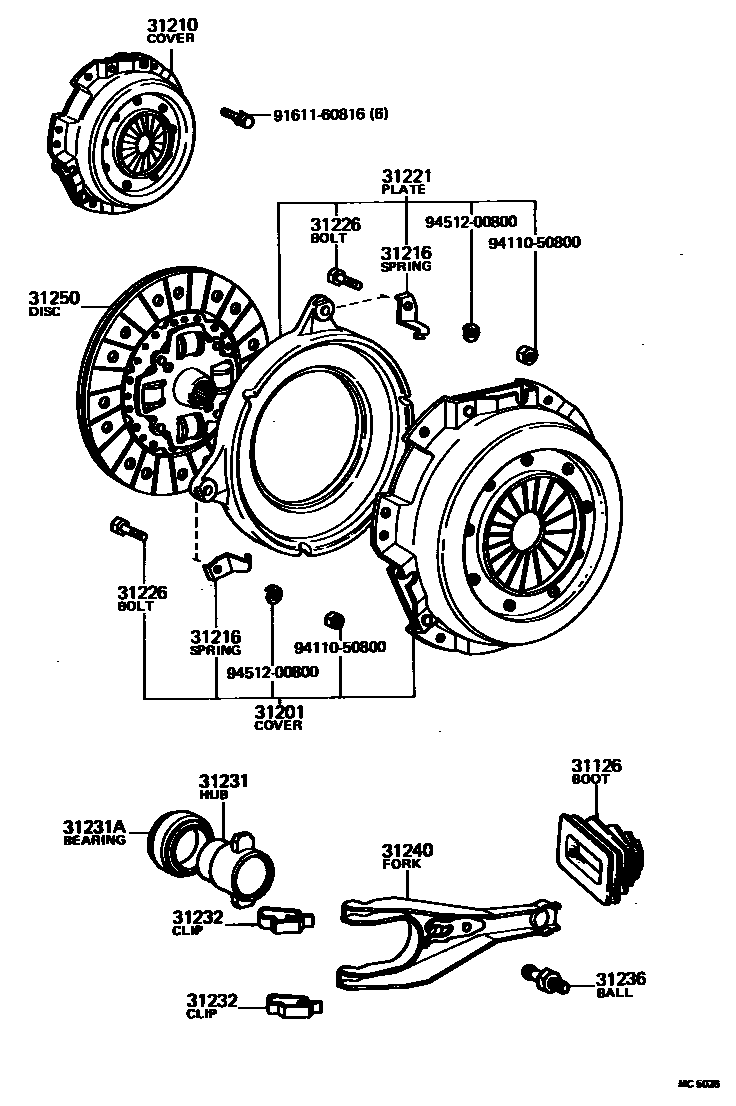

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-20070i198008-198107

main31126-22040i197708-198008

31201COVER SUB-ASSY, CLUTCH

main31201-19048i197908-198101

main31201-19065i198101-198107

main31201-19075i198101-198107

main31201-29056i197708-197802

main31201-29057i197802-197908

main31201-29058i197908-198101

31210COVER ASSY, CLUTCH

main31210-14012i197803-197908

main31210-14013i197908-198101

main31210-14070i198101-198107

main31210-14080i197708-197803

main31210-23011i197908-198101

main31210-23012i198101-198107

31216SPRING, CLUTCH RETRACTING

main31216-20020i197708-198107

31221PLATE, CLUTCH PRESSURE

main31221-19015i197708-198107

main31221-19025i197908-198107

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08350i197708-198107

31231HUB, CLUTCH RELEASE BEARING

main31231-14030i197708-197903

main31231-14031i197903-198008

main31231-20081i198008-198107

main31231-20090i198008-198107

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001i197708-198002

main90363-40008i198002-198008

main90363-40015i198008-198012

main90363-40022i198012-198107

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010i197708-198107

31236BALL, RELEASE FORK

main31236-20020i197708-198107

31240FORK ASSY, CLUTCH RELEASE

main31204-20080i198008-198107

main31204-20090i198008-198107

main31204-22030i197708-198008

31250DISC ASSY, CLUTCH

main31250-12080i198001-198106

main31250-12081i198106-198107

main31250-14090i197708-198107

main31250-14100i197908-197910

main31250-14101i197910-198001

main31250-22090i198008-198107

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
