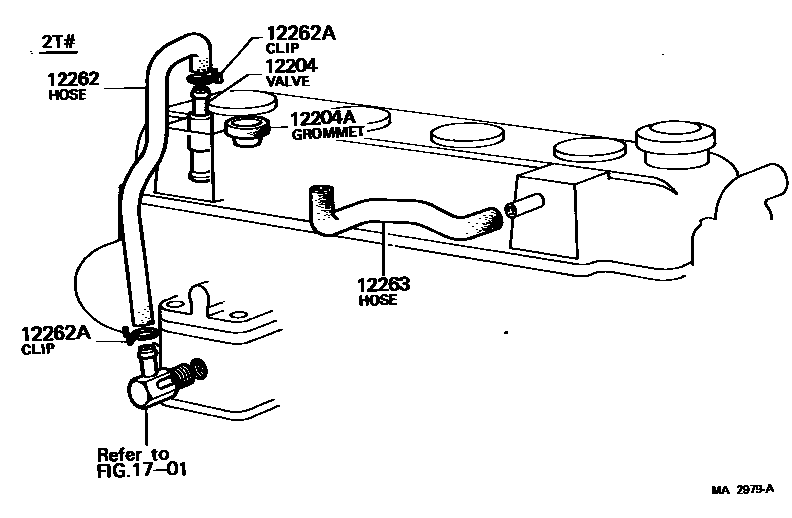

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-15020i2T#,3TC..TA4#197908-198008

sub12204-28010

main12204-28010i2T#,3T#..TA4#198008-198107

main12204-34010i2T#..TA40197708-197908

sub12204-28010

sub12204-35010

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i2T#,3T#..TA4#197708-198107

12262HOSE, VENTILATION, NO.2

main12261-25011i2T,2TC..TA40197708-197908

sub12261-25012

main12261-25012i2T,3T#..TA4#197908-198107

main12261-25020i2TB..TA40197708-197908

sub12261-25021

main12261-25021i2TB..TA40197908-198107

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010i2T#,3T#..TA4#197802-198107

12263HOSE, VENTILATION, NO.3

main12262-25010i2T,2TC,3T#..TA4#197708-198107

main12262-25020i2TB..TA40197708-198107

1701

6 parts on this diagram · 1 diagram in section
