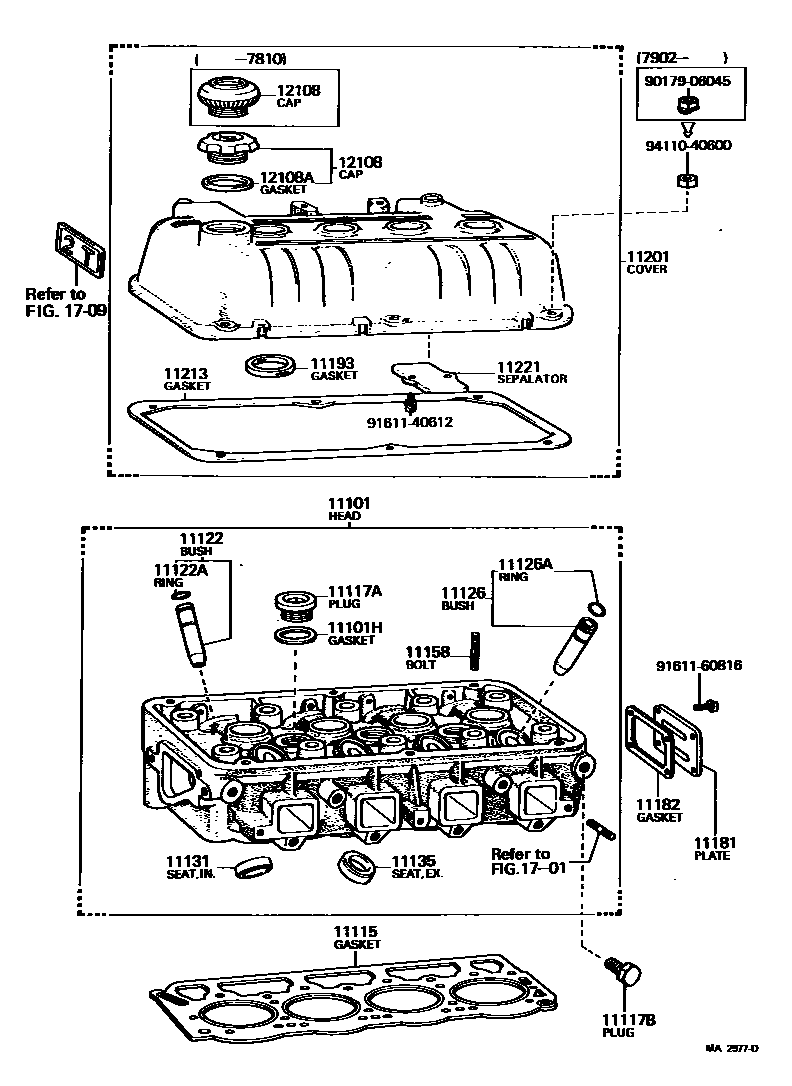

CYLINDER HEAD
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
W/O HEATER
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
O/S 0.03,O/S 0.03
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=27,S=9&9
L=29,S=9&9
L=29,S=9&9
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-25011
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
12108AGASKET(FOR OIL FILLER CAP)
1701
1709
9017906045
main90179-06045
9161140612
main91611-40612
9161160816
main91611-60816
9411040600
main94110-40600
26 parts on this diagram · 2 diagrams in section
